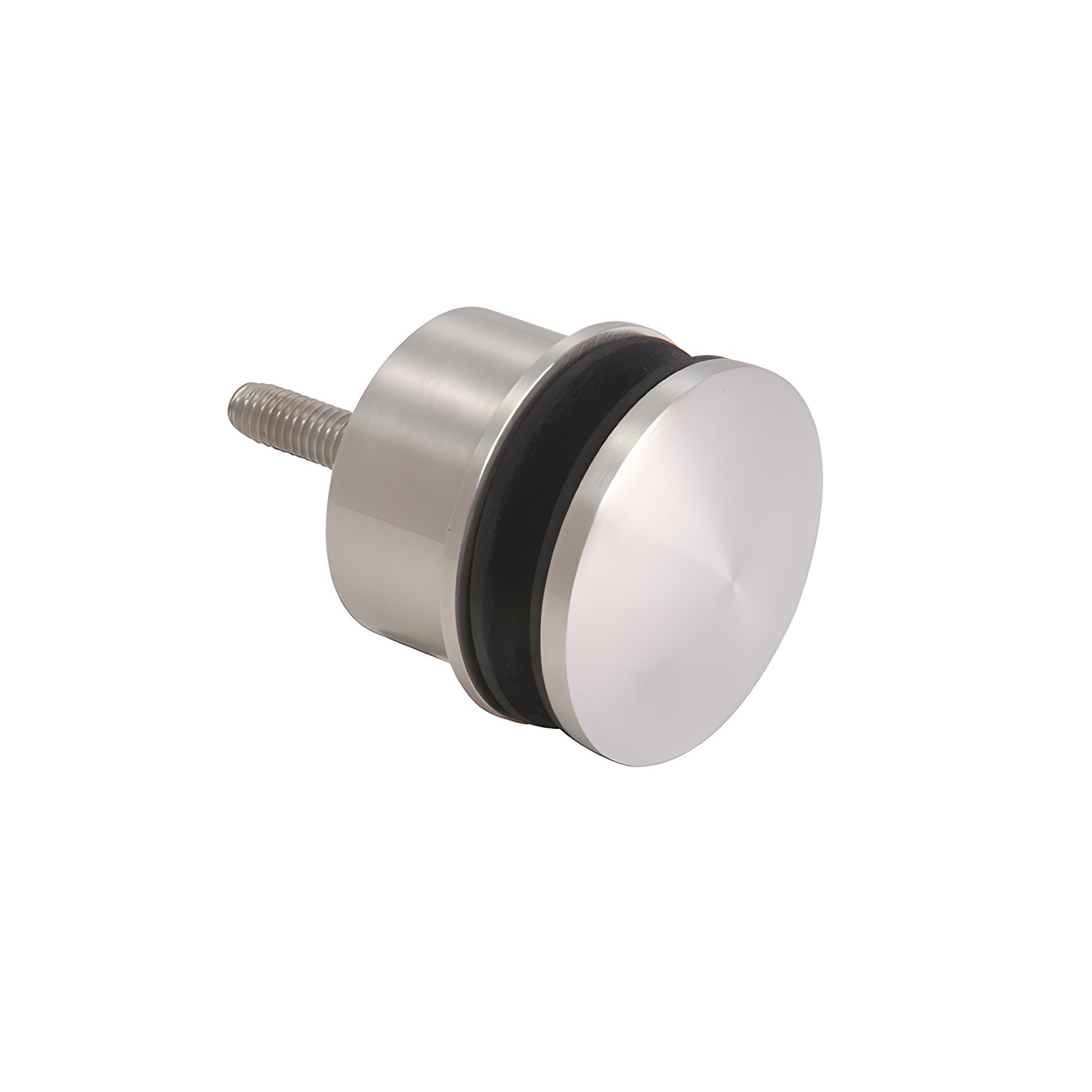

CRL 316 Brushed Stainless 2-3/8" x 1" Point Supported Standoff Base and Domed Cap
CRL 316 Brushed Stainless 2-3/8" x 1" Point Supported Standoff Base and Domed Cap
Regular price
$136.26 CAD
Regular price
Sale price
$136.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RS0B215BS
Shipping Weight: 1.67 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.67 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1



Description
Finish/Color | Brushed Stainless Steel |
Material | 316 Stainless Steel |
Width 2 in. | (51 mm) |
Overview
The CRL Heavy-duty Point Supported Standoffs are expertly crafted for use with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass, as well as 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass with Kuraray SentryGlas® Interlayer.
These standoffs, ideal for glass handrails or guardrails, feature high-grade 316 stainless steel alloy and come in brushed or polished finishes.

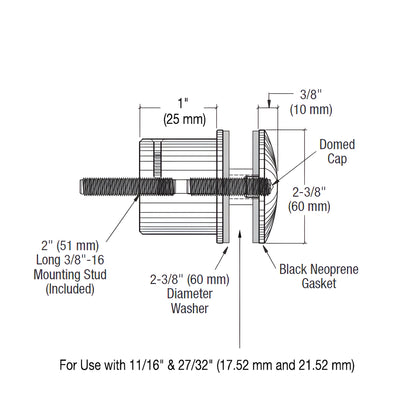

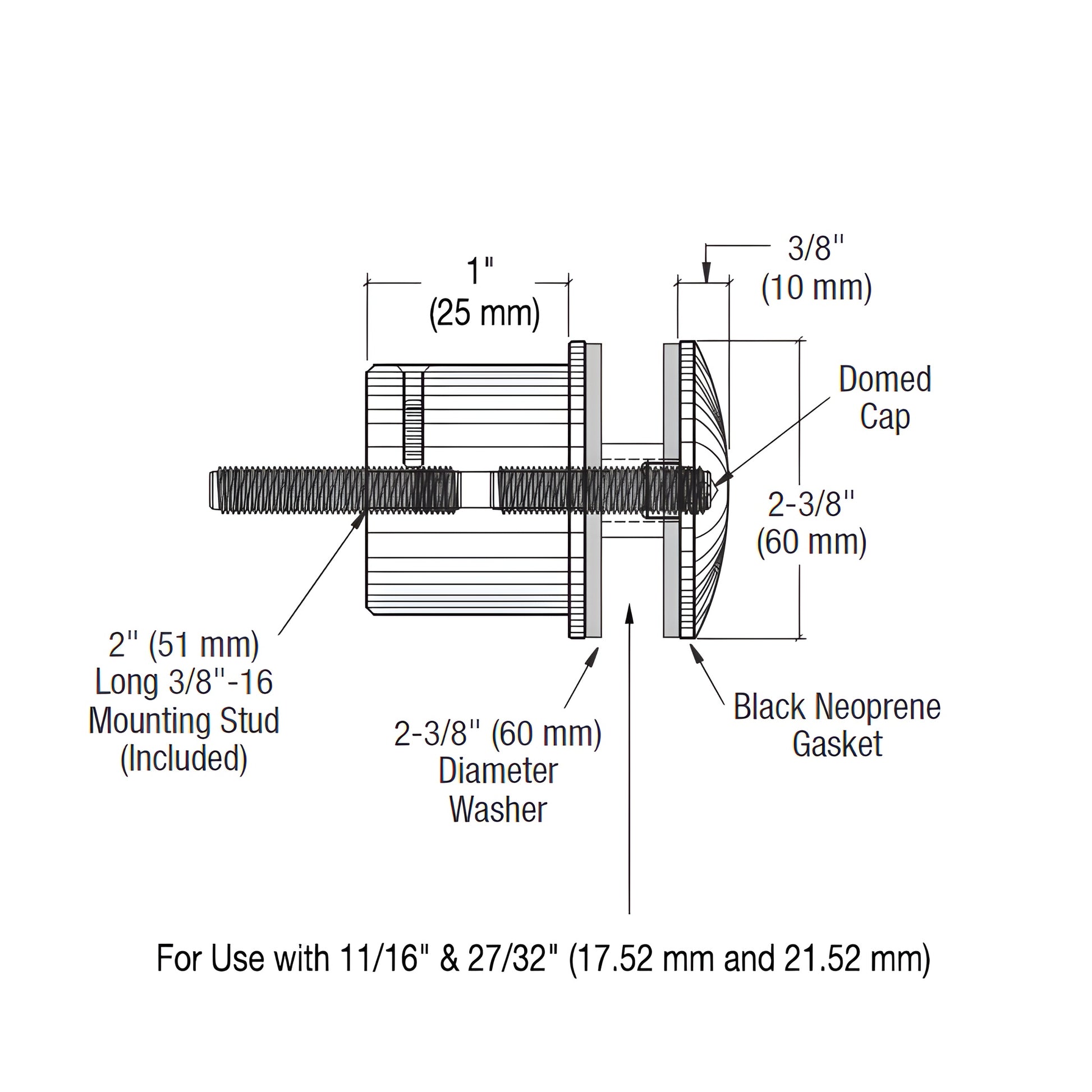

They offer a standard projection of 2-3/8" (60 mm) diameter x 1" (25.4 mm) from the attachment point, with customizable lengths and diameters available.
For secure installation, a 3/8"-16 x 2" (51 mm) Allen Stud is included, with optional anchors for wood and concrete surfaces.
For optimal performance and longevity, periodic maintenance of the stainless steel is recommended.
These standoffs, ideal for glass handrails or guardrails, feature high-grade 316 stainless steel alloy and come in brushed or polished finishes.
They offer a standard projection of 2-3/8" (60 mm) diameter x 1" (25.4 mm) from the attachment point, with customizable lengths and diameters available.
For secure installation, a 3/8"-16 x 2" (51 mm) Allen Stud is included, with optional anchors for wood and concrete surfaces.
For optimal performance and longevity, periodic maintenance of the stainless steel is recommended.
Specifications
Brochures & Literature
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
