CRL 316 Brushed Stainless 48" Upwards Locking Ladder Pull
CRL 316 Brushed Stainless 48" Upwards Locking Ladder Pull
Regular price
$2,034.43 CAD
Regular price
Sale price
$2,034.43 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA48BS
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

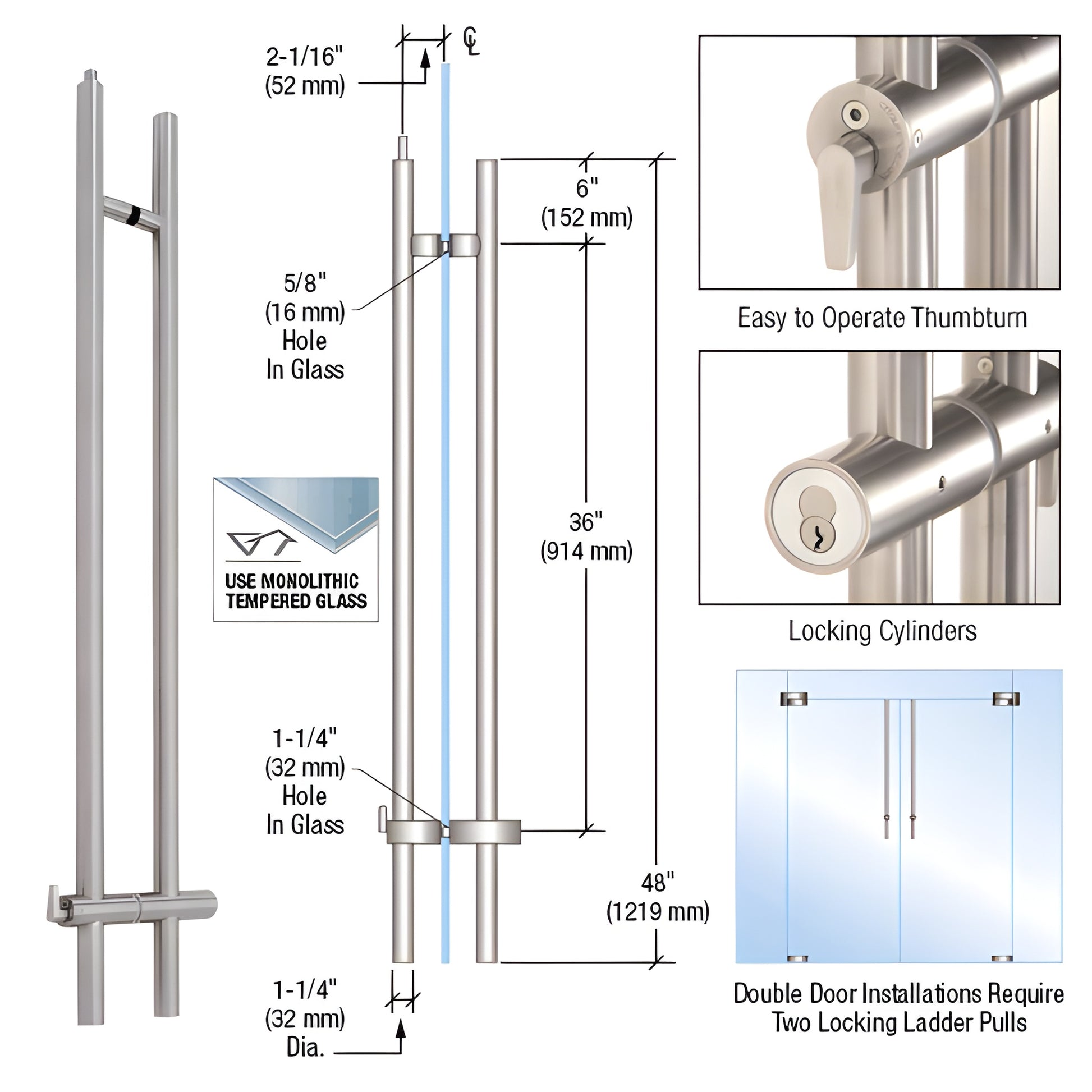

| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 2 |
| Mounting | Type Back-to-Back |
| Overall Length 48 in. | (1219 mm) |
Overview
The CRL LLPUA Series Upward Locking Ladder Pulls offer an innovative design with a fully concealed deadbolt locking mechanism that locks into the ceiling, ensuring convenience and ADA compliance.
Available in brushed and polished stainless steel, these pulls operate at a comfortable height of 42 inches above the floor, eliminating the need for bending or reaching.
Ideal for 1/2" to 3/4" thick tempered glass doors, this upward locking ladder pull comes with a standard 7-pin rim cylinder with interchangeable core, offering flexibility for re-keying or replacement.
Note that glass fabrication is required, with complementary push/pull indicators and dustproof keepers sold separately.
For the best results, periodic maintenance of the stainless steel finish is recommended; refer to the Stainless Steel Disclaimer in the Technical References for more details.
Available in brushed and polished stainless steel, these pulls operate at a comfortable height of 42 inches above the floor, eliminating the need for bending or reaching.
Ideal for 1/2" to 3/4" thick tempered glass doors, this upward locking ladder pull comes with a standard 7-pin rim cylinder with interchangeable core, offering flexibility for re-keying or replacement.
Note that glass fabrication is required, with complementary push/pull indicators and dustproof keepers sold separately.
For the best results, periodic maintenance of the stainless steel finish is recommended; refer to the Stainless Steel Disclaimer in the Technical References for more details.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
