CRL 316 Brushed Stainless 60" Upwards Locking Ladder Pull
CRL 316 Brushed Stainless 60" Upwards Locking Ladder Pull
Regular price
$2,097.14 CAD
Regular price
Sale price
$2,097.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA60BS
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 2 |
| Mounting | Type Back-to-Back |
| Overall Length 60 in. | (1524 mm) |
Overview

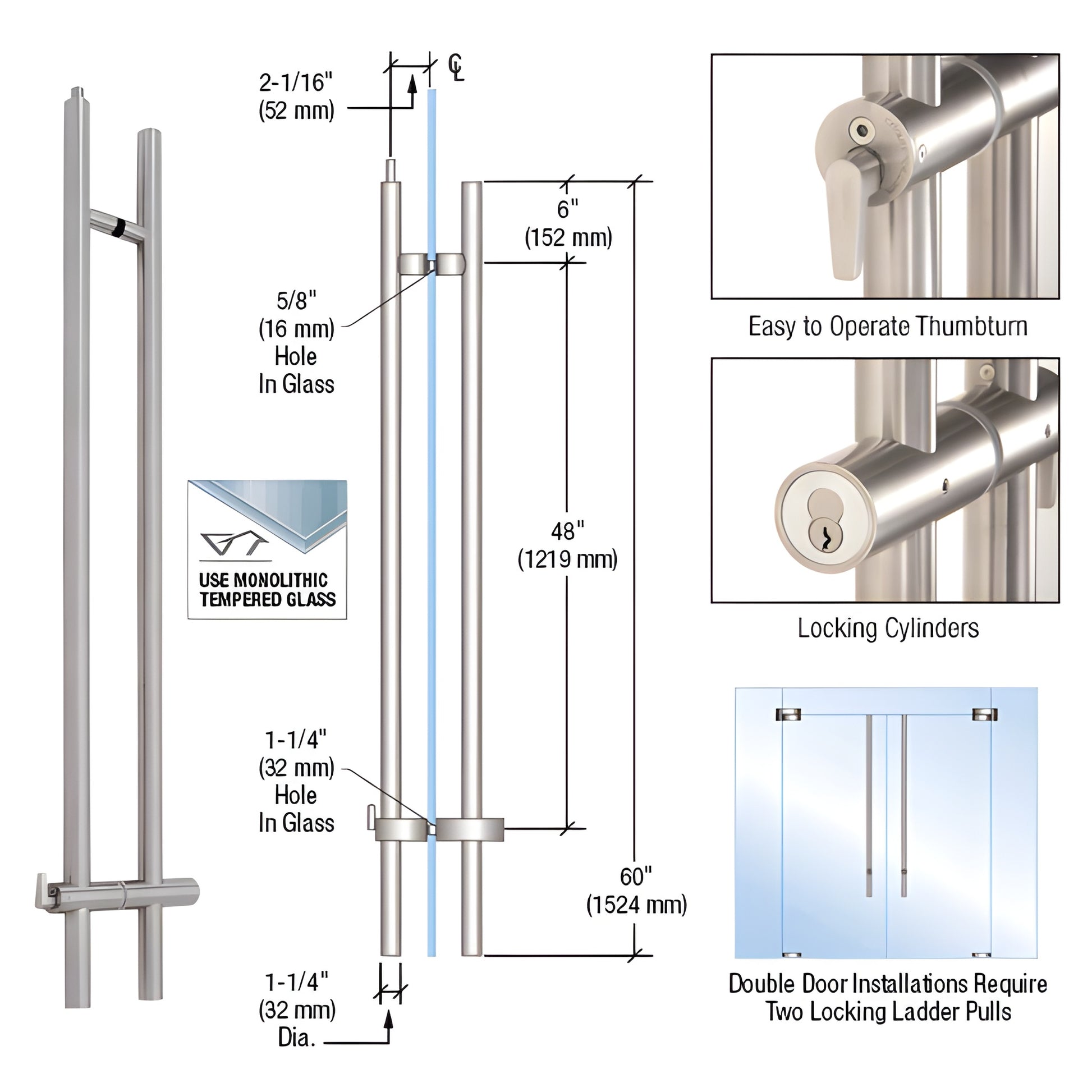

The CRL LLPUA Series Upward Locking Ladder Pulls offer a sleek design with a fully concealed deadbolt locking mechanism that secures into the ceiling, eliminating the need for floor locks.
These ladder pulls feature an A.D.A.
compatible thumbturn positioned at a comfortable 42" above the floor, ensuring ease of access.
Available in brushed or polished 316 stainless steel, they are designed for 1/2" to 3/4" thick tempered glass doors.
Custom sizes can be shipped within one to two weeks, and A.D.A.
compliant models are available upon request.
The product comes with a standard 7-pin Rim Cylinder with an Interchangeable Core, adaptable to various locking needs.
Note that glass fabrication is required, and additional accessories like Push/Pull Indicators and Dustproof Keepers are sold separately.
For more information on maintaining the stainless steel finish, refer to the Stainless Steel Disclaimer in the Technical References section.
These ladder pulls feature an A.D.A.
compatible thumbturn positioned at a comfortable 42" above the floor, ensuring ease of access.
Available in brushed or polished 316 stainless steel, they are designed for 1/2" to 3/4" thick tempered glass doors.
Custom sizes can be shipped within one to two weeks, and A.D.A.
compliant models are available upon request.
The product comes with a standard 7-pin Rim Cylinder with an Interchangeable Core, adaptable to various locking needs.
Note that glass fabrication is required, and additional accessories like Push/Pull Indicators and Dustproof Keepers are sold separately.
For more information on maintaining the stainless steel finish, refer to the Stainless Steel Disclaimer in the Technical References section.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
