CRL 316 Brushed Stainless 84" Upwards Locking Ladder Pull
CRL 316 Brushed Stainless 84" Upwards Locking Ladder Pull
Regular price
$2,369.77 CAD
Regular price
Sale price
$2,369.77 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA84BS
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

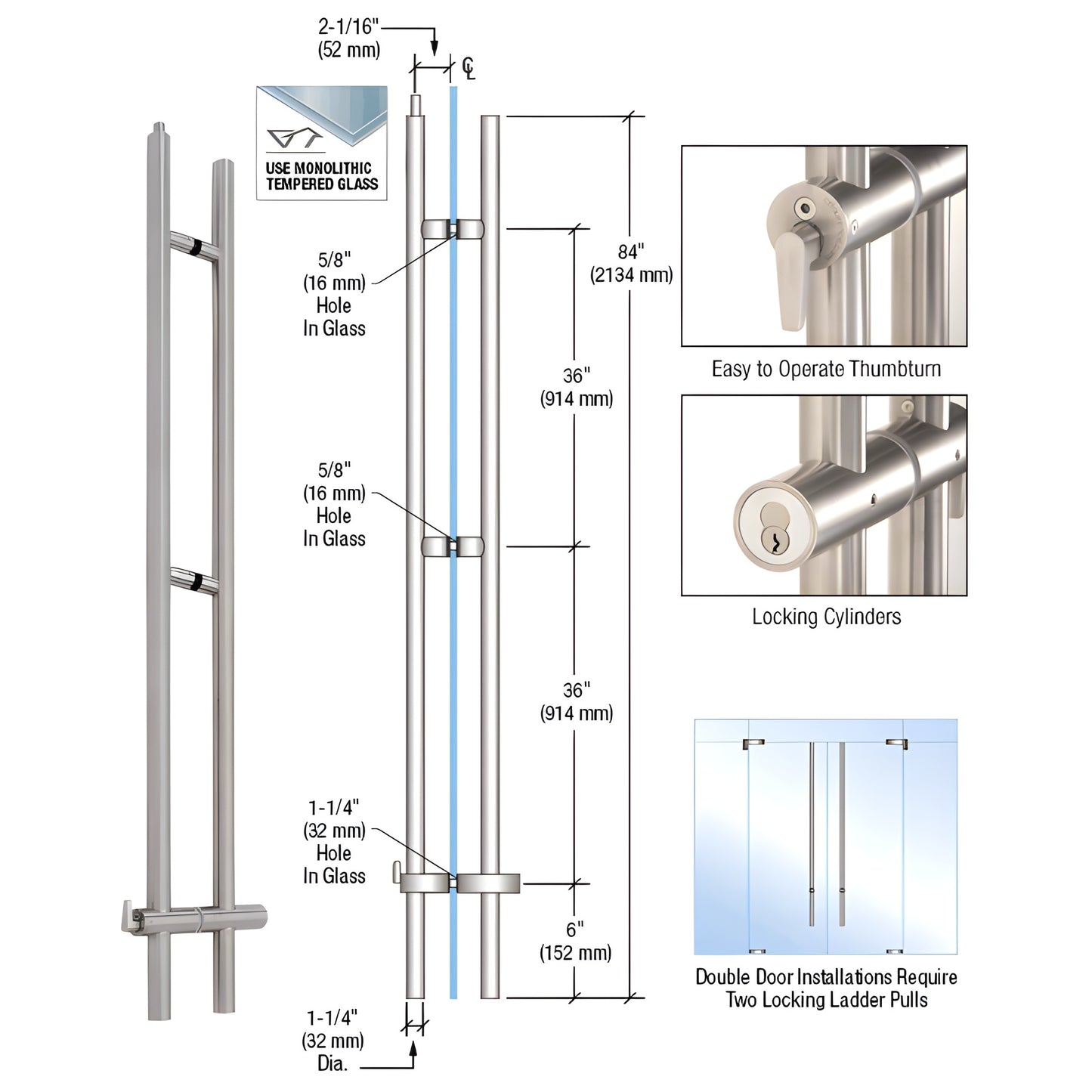

Description
| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 3 |
| Mounting | Type Back-to-Back |
| Overall Length 84 in. | (2134 mm) |
Overview
Our CRL LLPUA Series Upward Locking Ladder Pulls offer a sleek design with a fully concealed deadbolt locking mechanism that secures into the ceiling, ensuring an ADA-compatible and user-friendly experience.
Ideal for 1/2" to 3/4" thick tempered glass doors, these ladder pulls are crafted from 316 brushed or polished stainless steel tubing, with custom sizes available and shipping within one to two weeks.
The lock operates comfortably at 42" above the floor, eliminating the need to bend or reach.
Additionally, the pulls come with a standard 7-pin Rim Cylinder, easily replaceable or re-keyed to suit your needs, and are compatible with most standard manufactured Rim Type Cylinders.
Note that glass fabrication is required, and complementary push/pull indicators and dustproof keepers are available separately.
Remember, while stainless steel is corrosion-resistant, periodic maintenance is recommended to preserve its factory finish.
For more details, check out our Stainless Steel Disclaimer in the Technical References section.
Ideal for 1/2" to 3/4" thick tempered glass doors, these ladder pulls are crafted from 316 brushed or polished stainless steel tubing, with custom sizes available and shipping within one to two weeks.
The lock operates comfortably at 42" above the floor, eliminating the need to bend or reach.
Additionally, the pulls come with a standard 7-pin Rim Cylinder, easily replaceable or re-keyed to suit your needs, and are compatible with most standard manufactured Rim Type Cylinders.
Note that glass fabrication is required, and complementary push/pull indicators and dustproof keepers are available separately.
Remember, while stainless steel is corrosion-resistant, periodic maintenance is recommended to preserve its factory finish.
For more details, check out our Stainless Steel Disclaimer in the Technical References section.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
