CRL 316 Brushed Stainless Steel Top Rail Adapter for End Posts
CRL 316 Brushed Stainless Steel Top Rail Adapter for End Posts
Regular price
$76.57 CAD
Regular price
Sale price
$76.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CR15TAEBS
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1.66 in., 2 in., 2-1/2 in., 3 in., 3-1/2 in., 4 in. (42 mm, 51 mm, 64 mm, 76 mm, 89 mm, 102 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Overview
- Easy attachment of cap rails to vertical posts
- Ready-to-install top rail adapters
- Customizable to meet specific application requirements
- Made from Alloy 316 stainless steel for marine-grade corrosion resistance
- Available in brushed or polished stainless steel finishes
- U.S. Patent 8,944,414 B2

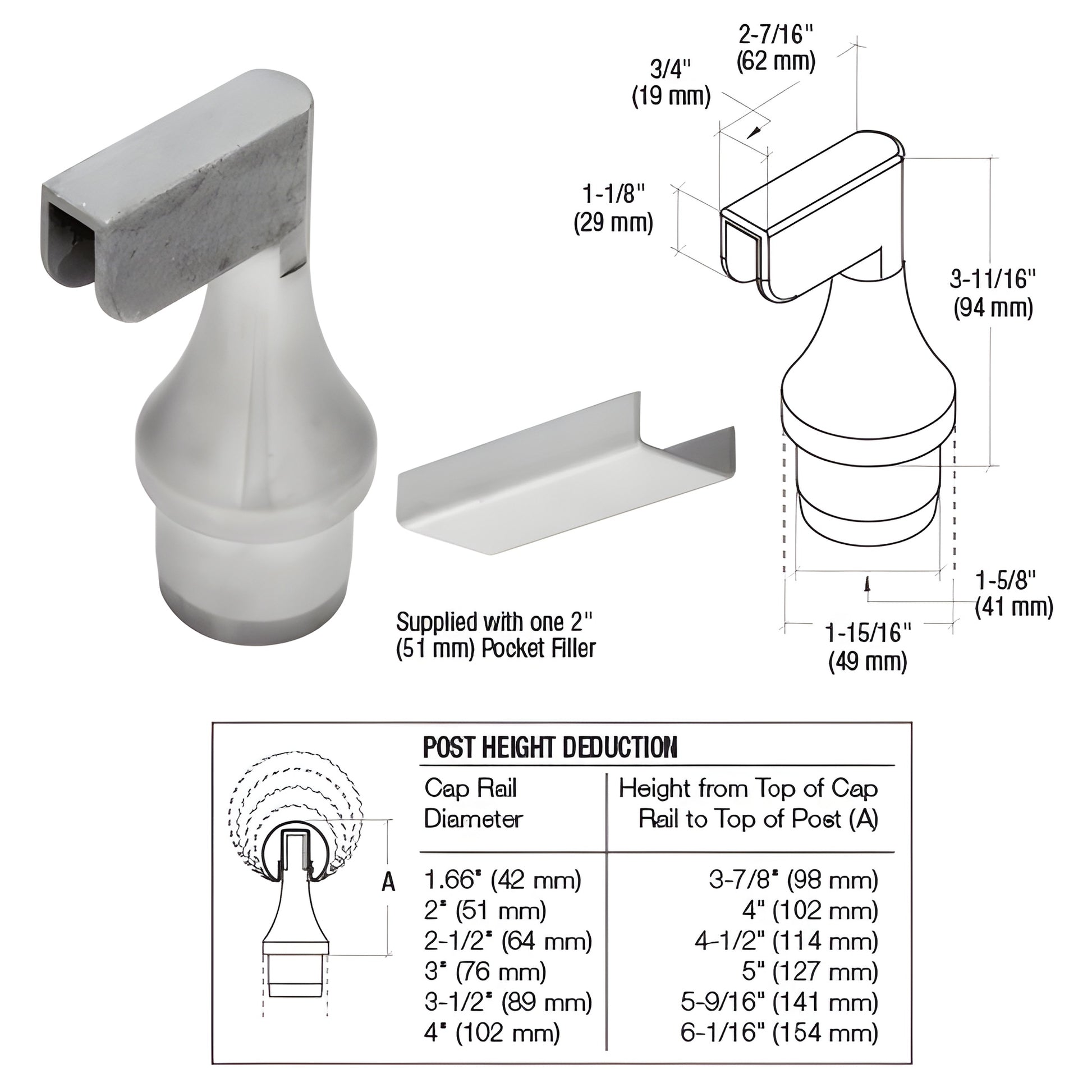

CRL Top Rail Adapters slip into 1-1/2" (38 mm) Schedule 40 stainless steel posts to support 1.66" to 4" (42.2 to 102 mm) diameter cap railing. Ideal for stainless steel railing systems and marine or exterior installations, these 316 stainless adapters provide a durable, corrosion-resistant solution and can be modified to meet project-specific needs. Use Cat. No. 32629 Metal Contact Cement (required) to achieve a secure, permanent bond.
NOTE: Supplied with one 2" (51 mm) pocket filler.
Product Warning:
The CRL Component Rail System is Patent Pending.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
SKU: CR15TAEBS — Order now to get corrosion-resistant 316 stainless top rail adapters for Schedule 40 posts.
Specifications
CAD Drawings - dwg
