CRL 316 Brushed Stainless Long Arm Malibu Series Glass Mounted Hand Rail Bracket

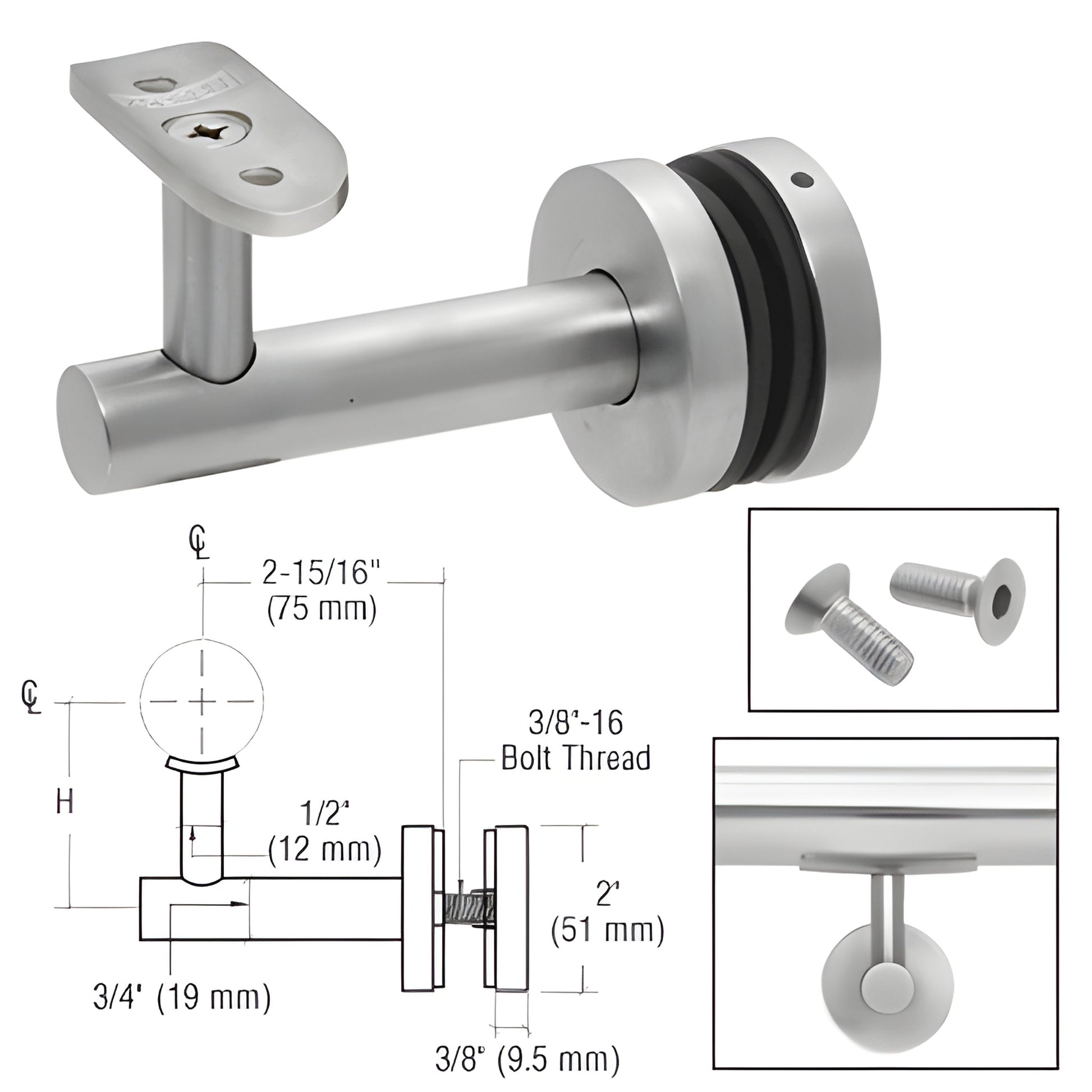

The CRL Glass Mounted Hand Railing Bracket is expertly designed for versatility, offering two sizes – Long Arm and Short Arm – to accommodate 1-1/2" to 2" (38 to 51 mm) diameter hand rail tubing.
Engineered for glass thicknesses of 1/2" to 1-1/16" (12 to 25.52 mm), this bracket features 316 Grade Stainless Steel for superior durability.
Available in two stunning architectural finishes, each bracket is individually packed and includes necessary attachment screws and an outside disc for seamless glass mounting.
Please note, a 3/4" (19 mm) hole in the glass is required for installation.
For optimal results, ensure the CRL HR2EG Hand Rail Bracket Mounting Stud is drilled and tapped correctly as per the labeled thread type on each box.
Regular maintenance is recommended to preserve the stainless steel's factory finish and prevent corrosion.
