CRL 316 Stainless Steel Brushed Left-Hand Wall-to-Glass Gate Hinge
CRL 316 Stainless Steel Brushed Left-Hand Wall-to-Glass Gate Hinge
Regular price
$174.35 CAD
Regular price
Sale price
$174.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GH037LBS
Shipping Weight: 13.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Closing Speed
No
Finish/Color
Brushed Stainless Steel
Handing
Left
Material
316 Stainless Steel
Overview
- Handed self-closing hinge for 3/8" or 1/2" (10 or 12 mm) tempered glass
- All 316 alloy brushed or polished stainless steel for corrosion resistance
- Wall-to-glass hinges for frameless glass gates and doors

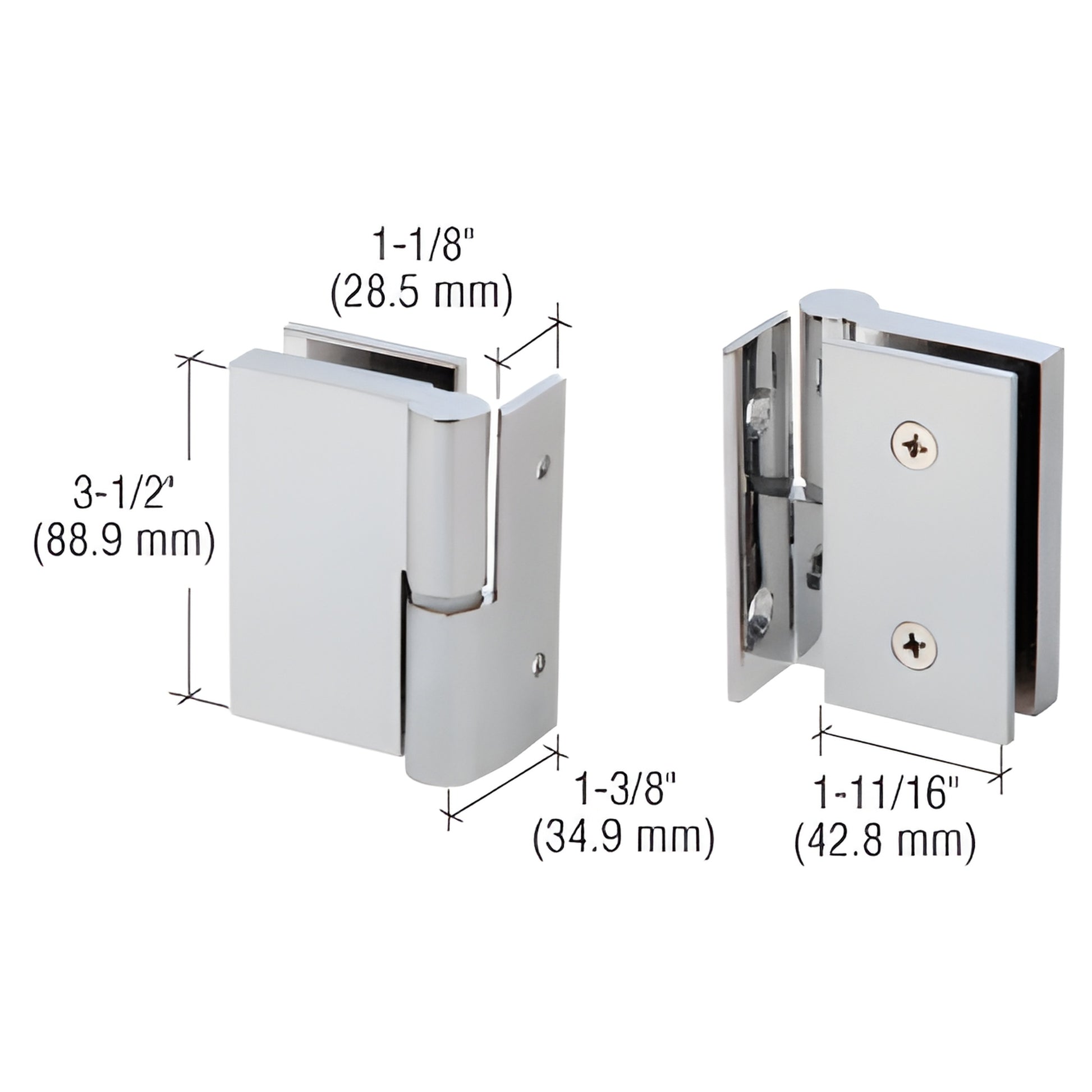

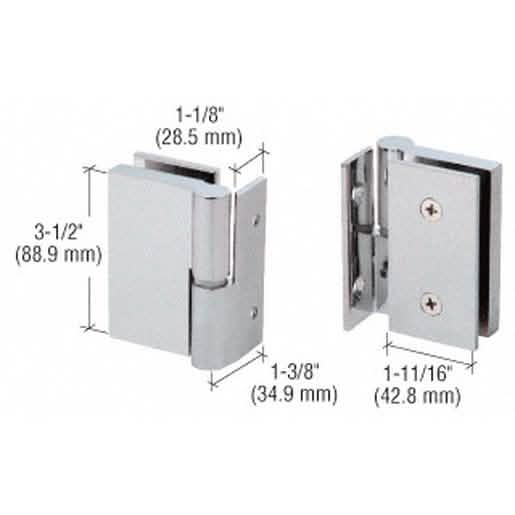

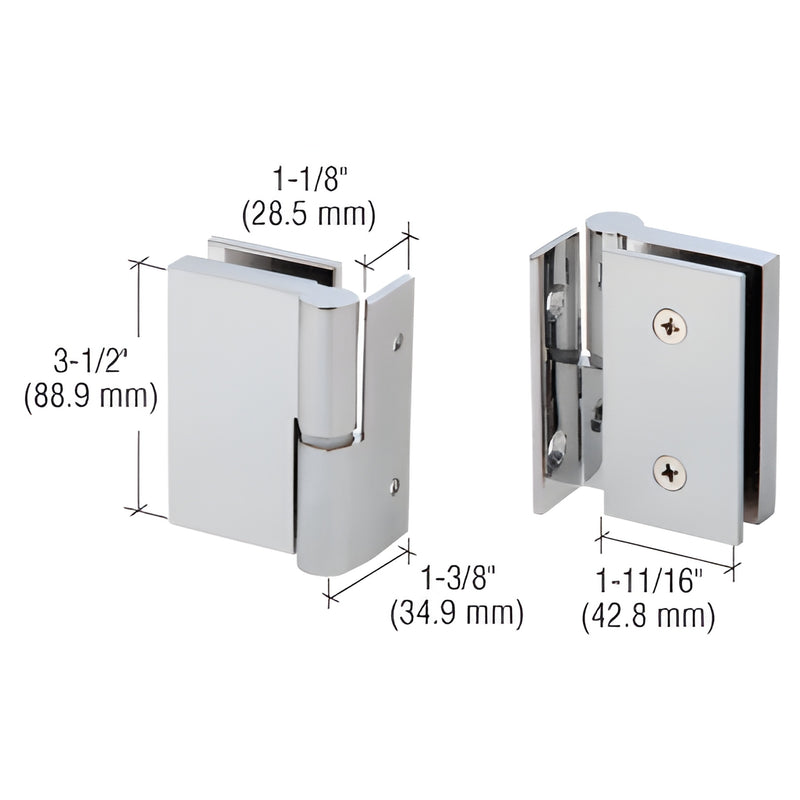

CRL Single Acting Wall-to-Glass Gate Hinges (SKU: GH037LBS) are handed, self-closing hinges designed for use with 3/8" or 1/2" tempered glass panels. Install to a wall or to a 1.9" (48.3 mm) diameter post using the Adaptor Plate (sold separately). Requires two 3/4" (19 mm) holes per hinge. Maximum supported width 42" (1.07 m); maximum weight 65 lbs. (29.5 kg). Instructions and a cut-out template are included in each box. These 316 stainless steel wall-to-glass hinges are available in brushed or polished finishes—ideal for commercial and residential frameless glass gate installations.
NOTE: Not for use on pool gates.
Product Warning:
These are self-centering hinges that center with the downward force of gravity. They are not designed to meet swimming pool regulations or codes, which require a force-closing hinge with at least five pounds of closing force.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Order GH037LBS today for durable 316 stainless wall-to-glass hinges—contact CRL or your distributor to buy now.
Specifications
CAD Drawings - dwg
