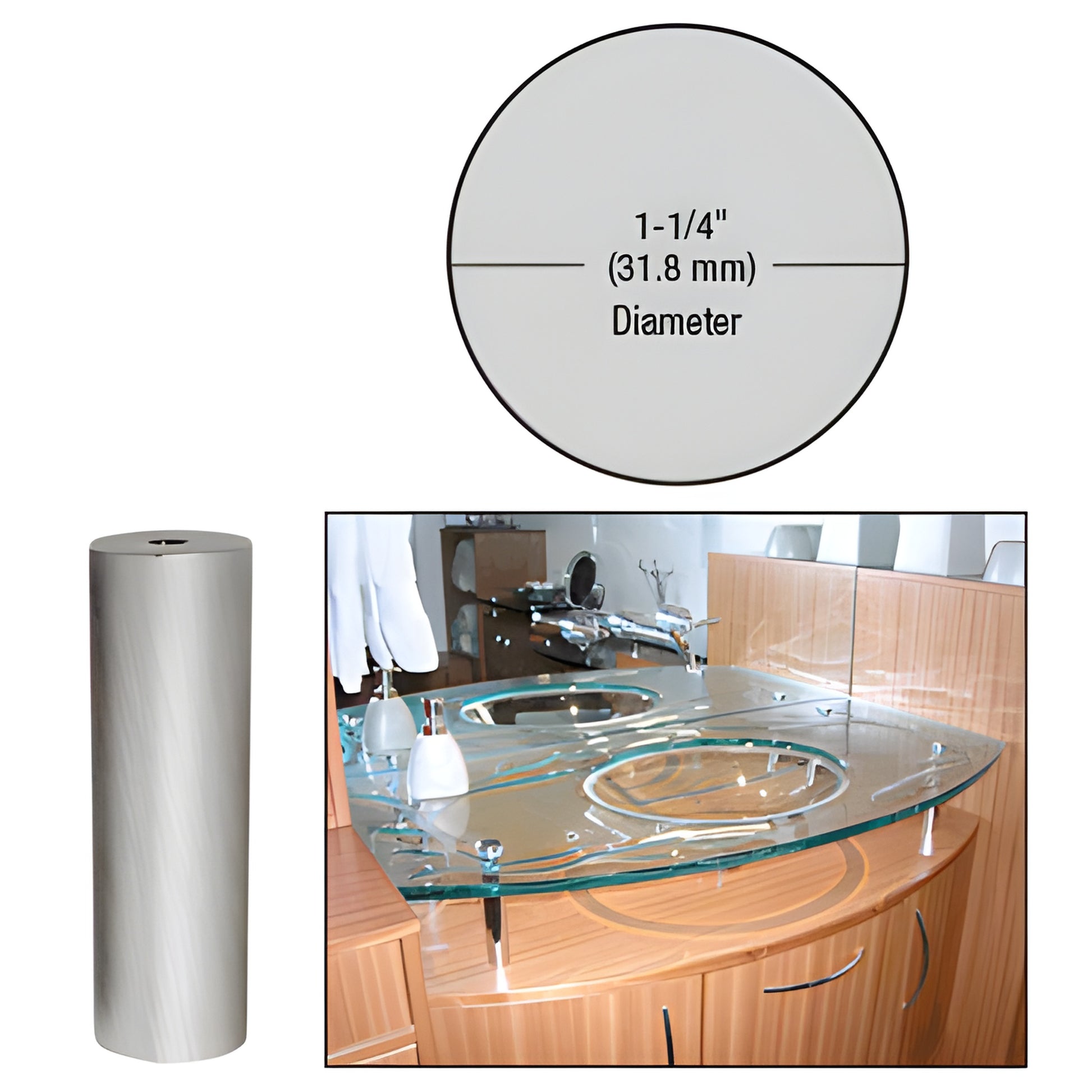

CRL 316 Brushed Stainless Steel 1-1/4 in x 4 in Glass Standoff Base

• Available in several lengths
• Custom lengths and finishes available
• Six popular decorator finishes
• Use with monolithic tempered glass

With CRL's 1-1/4" Diameter Standoff System you can create multiple looks using our 1-1/4" (32 mm) standoffs for glass panels, signage, and architectural displays. The variety of bases and caps lets you design retail, commercial, or residential installations. By drilling 5/8" (16 mm) holes in glass, plastic, or wood panels and polishing the edges, you achieve a clean, contemporary standoff mounting. Each stock 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 through the full length. Custom lengths and finishes are available—request a quote from our Technical Sales Department. SKU: S0B1144BS.

Available in many distinctive finishes, CRL standoffs combine modern design and high-tech appearance. This flexible standoff system can incorporate CRL Edge Grips and Swivel Fittings for increased versatility. 1-1/4" (32 mm) standoff bases come in eight lengths (1/4" to 6" / 6 to 152.4 mm). Matching cap assemblies are ordered separately.

The CRL Standoff System includes a full range of mounting accessories available in any quantity so you order only what you need. For installation guidance or design assistance using our standoffs for glass panels, commercial signage, or display mounting, contact our Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter standoff bases is 1/4" (6 mm) with Standard and Low Profile Caps, and 3/8" (10 mm) with Flush Mount Cap.

Product Warning:

Due to diverse applications, weight limitations for standoff systems depend on wall or substrate anchoring and material strengths. Verify anchoring and substrate capacity for heavy or large glass panels.
