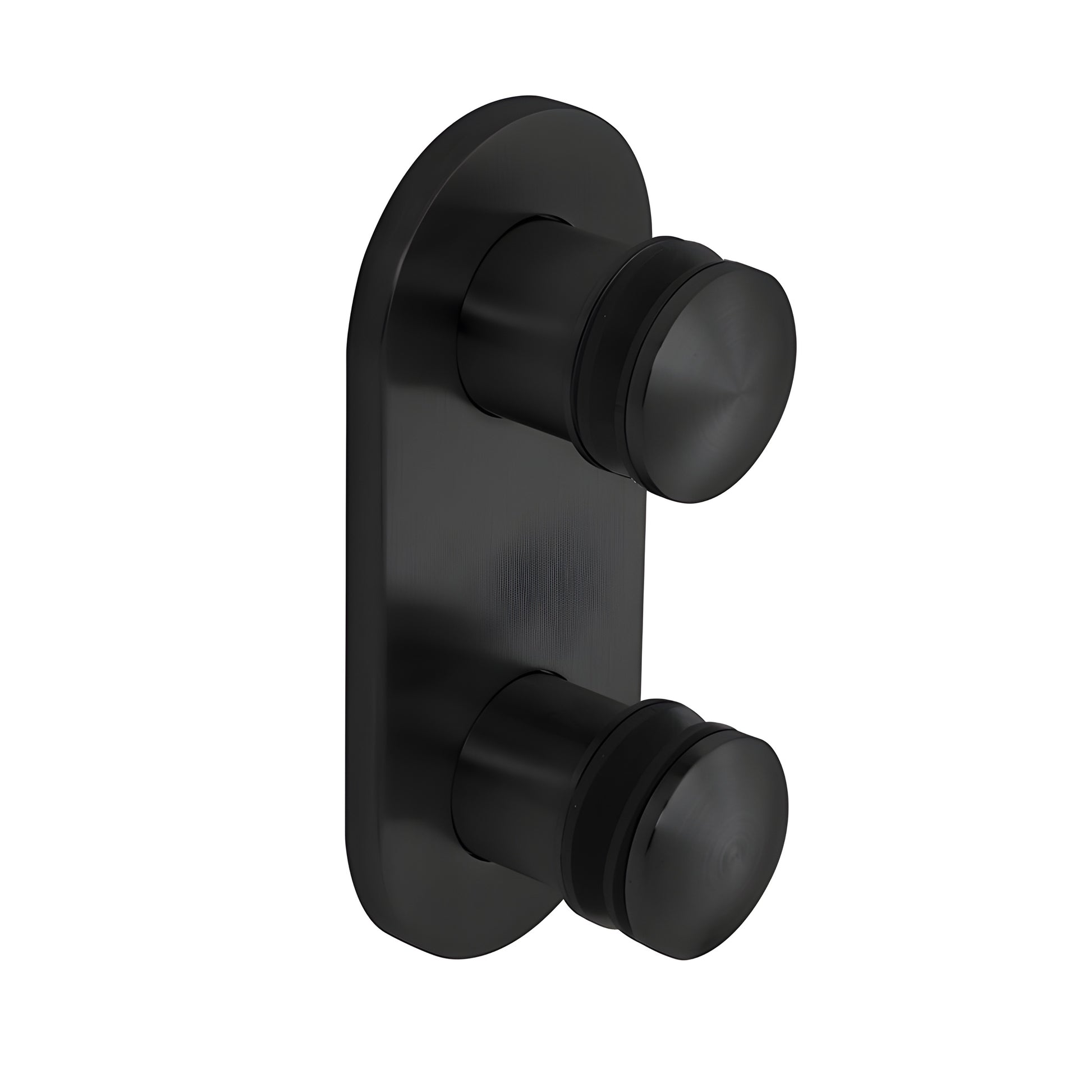

CRL 316 Matte Black Dome 2-3/8" Glass Rail Standoff Fitting With Mounting Plate

CRL 316 Matte Black Dome 2-3/8" Glass Rail Standoff Fitting With Mounting Plate

$736.56 CAD
$736.56 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# RS0B25MBL
Shipping Weight: 7.2 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

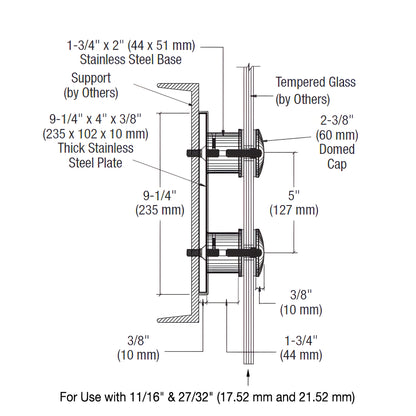

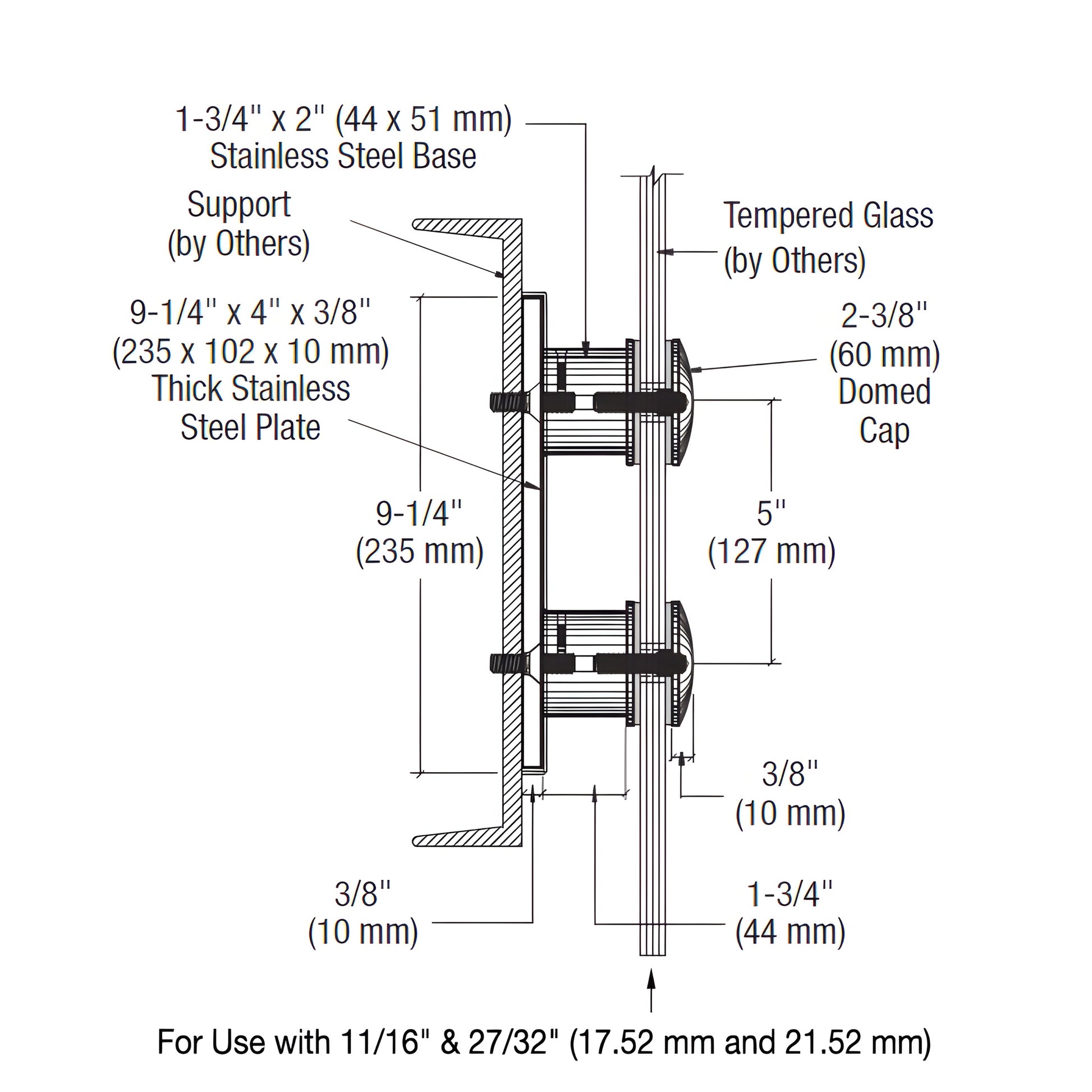

Base Plate Height 9-1/4 in.(235 mm)
Base Plate Length 4 in.(102 mm)
Base Plate Thickness 3/8 in.(10 mm)
Finish/ColorMatte Black
Material316 Stainless Steel
Width 2 in.(51 mm)

Overview

This high-quality Point Supported Standoff Fitting is designed for use with 1/2" and 3/4" monolithic tempered glass or 9/16" and 27/32" laminated tempered glass featuring the Kuraray SentryGlas® interlayer.
Crafted from premium 316 stainless steel alloy, this fitting includes a 4" x 9-1/4" back plate with four anchor points for flexible installation on steel, concrete, or wood substrates.
The 2-3/8" diameter domed cap is secured with a 3/8"-16 threaded stainless steel rod, ensuring robust support for glass panels.
Available in popular stainless steel finishes, custom diameters and lengths can be tailored to meet specific site requirements, while attachment anchors are sold separately.
For optimal use, ensure a maximum bracket spacing of 24" on center with a maximum glass panel width of 48".
