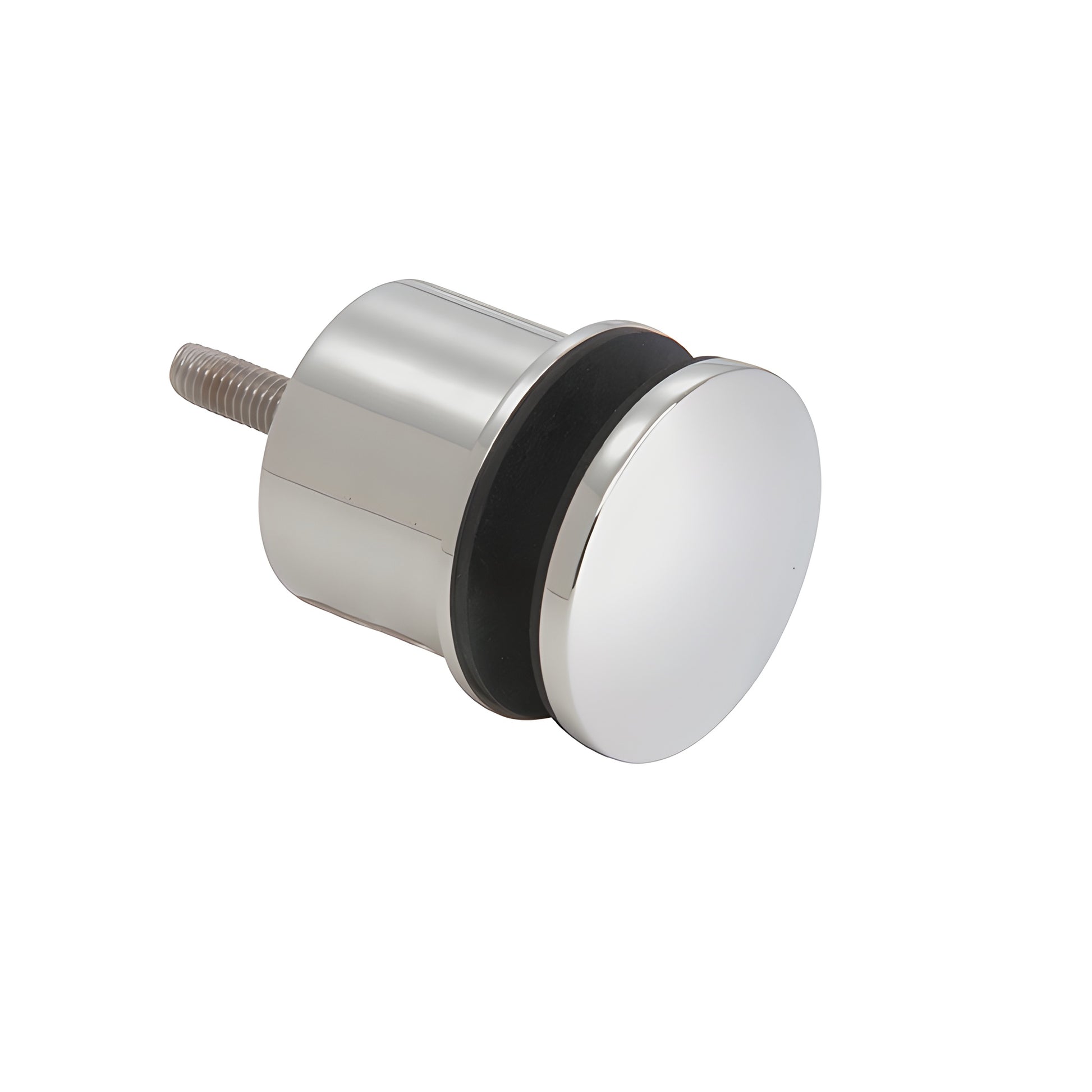

CRL 316 Polished Stainless 2-3/8" x 1-3/4" Point Supported Standoff Base and Domed Cap

Our high-grade 316 Stainless Steel Point Supported Standoffs are expertly crafted for glass handrail or guardrail applications, accommodating 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass, as well as 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass with Kuraray SentryGlas® Interlayer.

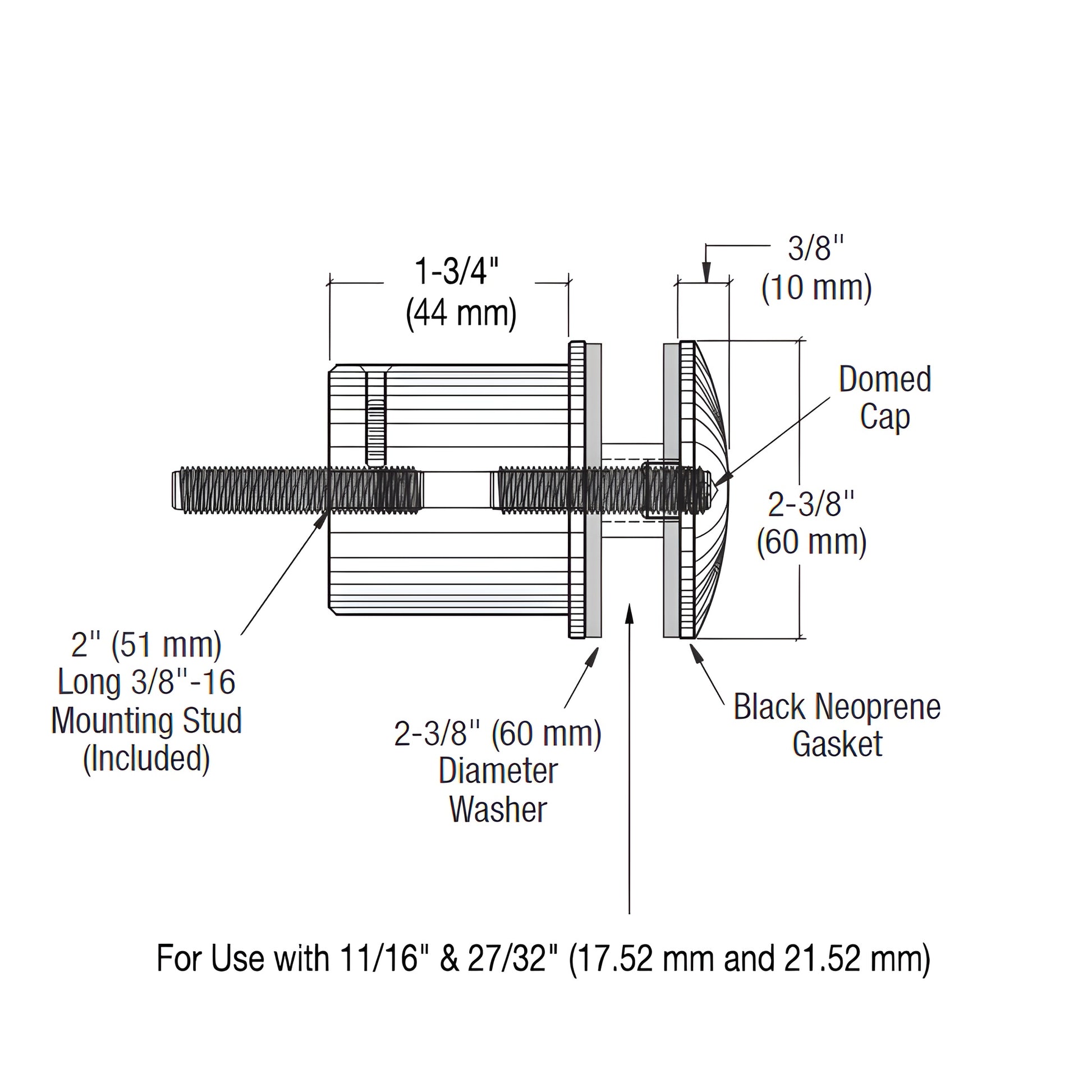

With a standard projection of 2-3/8" (60 mm) diameter x 1-3/4" (44 mm), these standoffs ensure robust support and are customizable to meet specific project needs.
The package includes a 3/8"-16 x 2" (51 mm) Allen Stud for steel mounting, alongside essential gaskets and grommets, with additional attachment anchors for wood and concrete available.
For optimal performance and longevity, periodic maintenance of the stainless steel is recommended, and detailed product specifications can be found in the Stainless Steel Disclaimer in the Technical References section.
