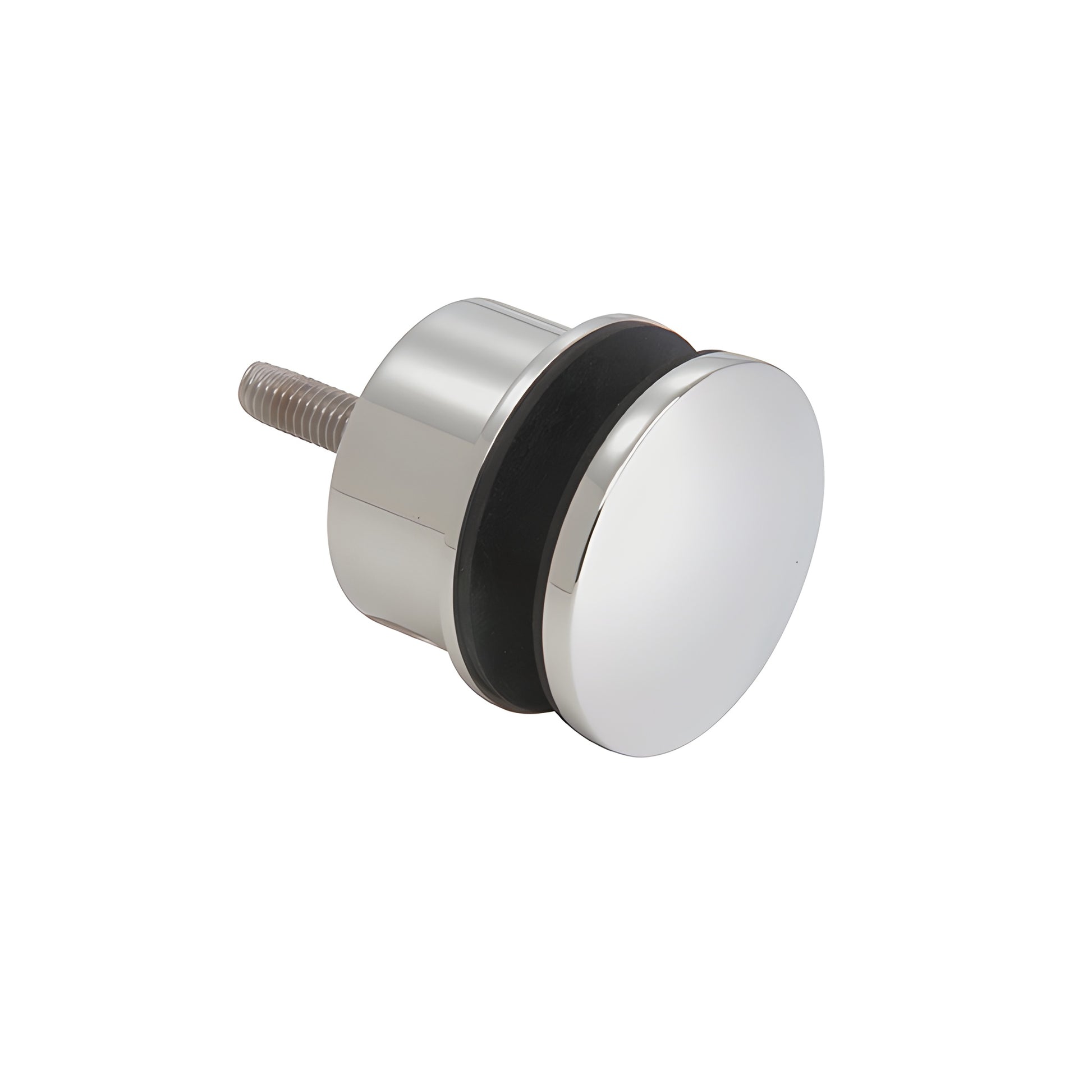

CRL 316 Polished Stainless 2-3/8" x 1" Point Supported Standoff Base and Domed Cap

The CRL Heavy-duty Point Supported Standoffs are expertly crafted for glass handrail or guardrail applications, accommodating both 1/2" and 3/4" monolithic tempered glass, as well as 9/16" and 27/32" laminated tempered glass using Kuraray SentryGlas® Interlayer.
Made from high-grade 316 stainless steel alloy, these standoffs are available in brushed or polished finishes to match your design needs.

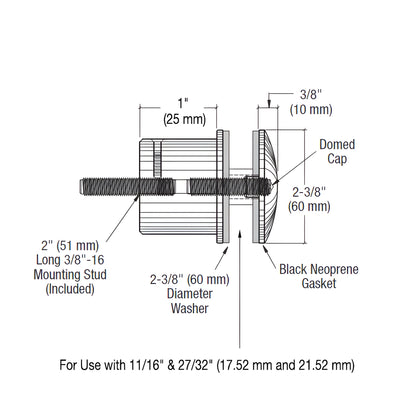

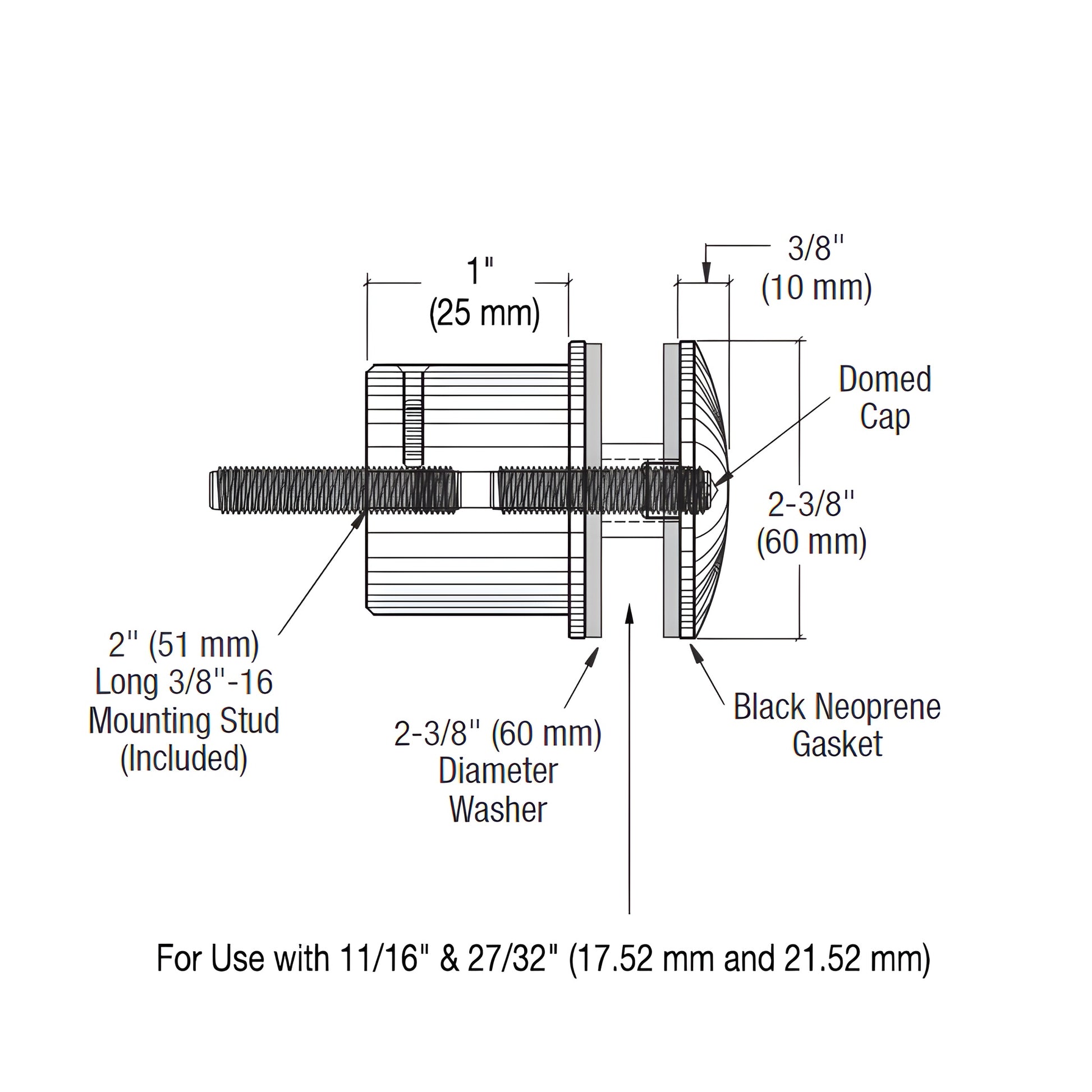

With a standard 2-3/8" diameter and 1" projection, they also offer custom lengths and diameters, ensuring flexibility for your project.
The standoffs come equipped with a 3/8"-16 x 2" Allen stud for steel mounting and include necessary gaskets and grommets, with additional options for wood and concrete attachments.
For optimal use, ensure glass fabrication includes one 3/4" diameter hole per fitting and maintain a minimum height spacing of 4" center-to-center.
