CRL 316 Stainless Steel 36 in P1 180° Center Post Railing Kit

• For use with 1/2" (12 mm) to 1" (25 mm) thick panels
• Glass attachment fittings sold separately
• Meets or exceeds guard rail and handrail code standards
• Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
• Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
• Two standard stainless finishes; custom powder coat finishes available

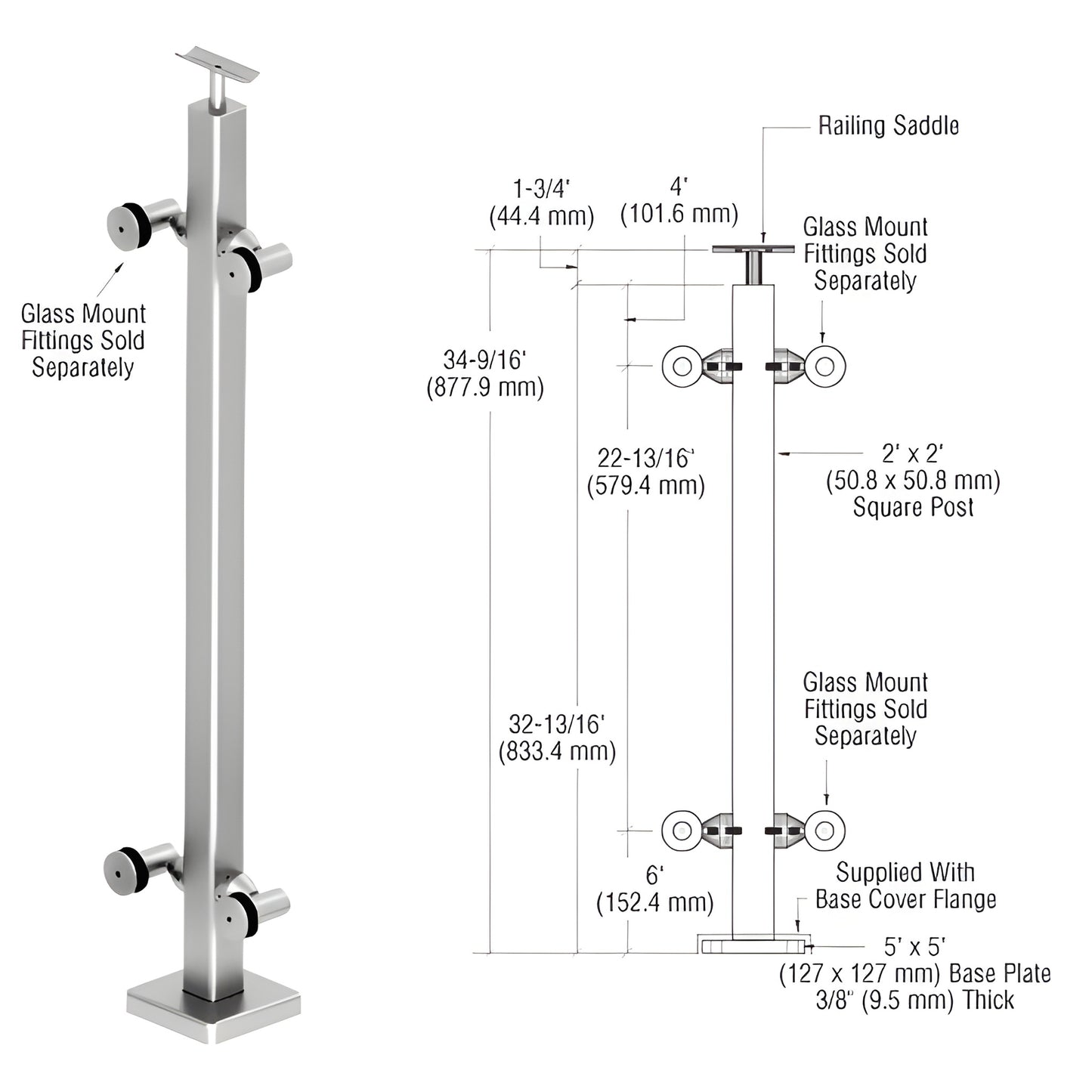

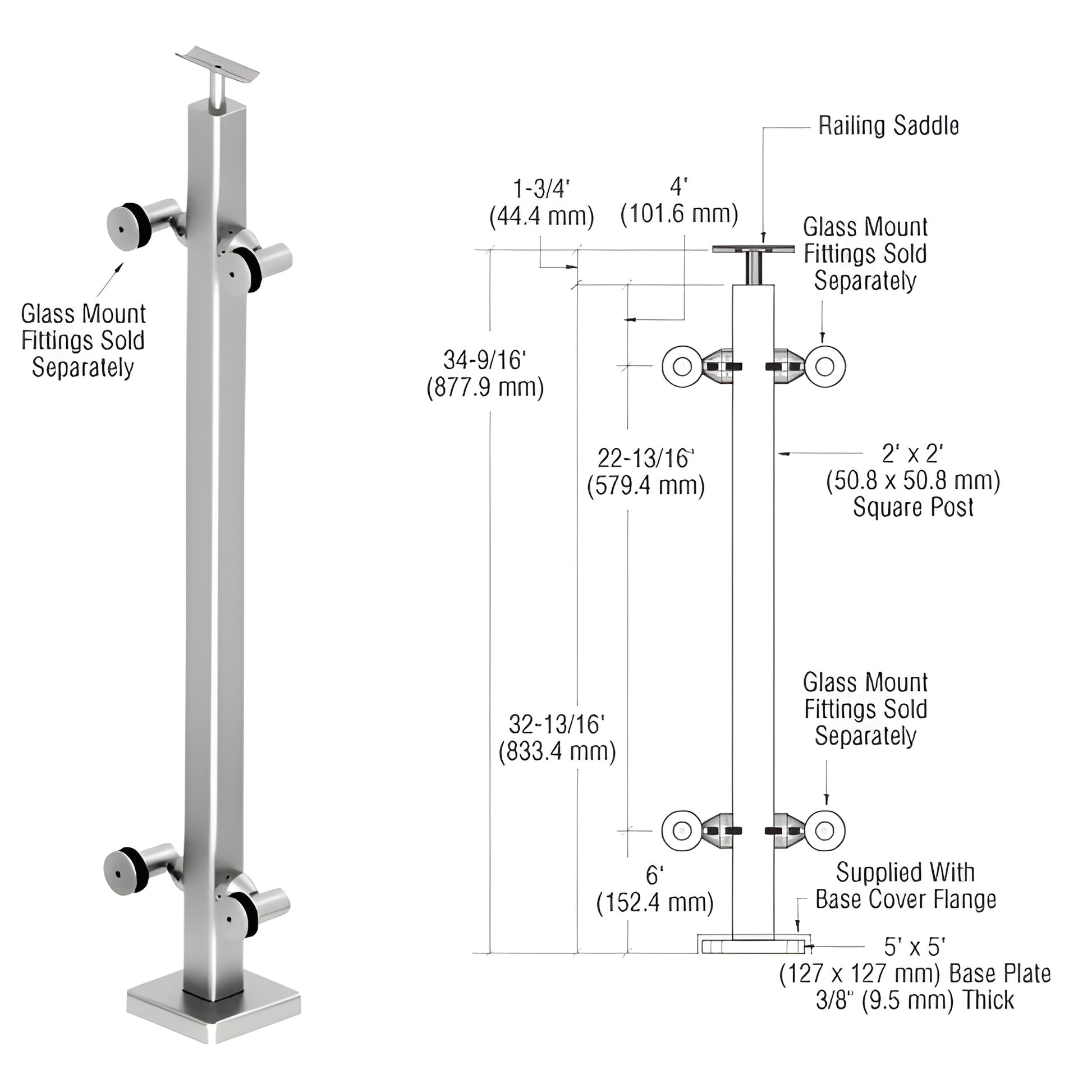

CRL P1 Surface Mounted Post Railing Kits (SKU: P136CPS) are built for commercial and residential installations requiring code-compliant guard rails and handrails. Constructed from 2" (51 mm) square 316 alloy stainless steel tubing with 3/16" (4.8 mm) wall thickness, these P1 post kits offer superior corrosion resistance for exterior and interior applications. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle. For top rail attachment, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).

Product Warning:

All P-Series post kits are sold without glass attachment fittings; glass clamps and fittings must be purchased separately.

Stainless Steel Advisory:

Key differentiators: 316 alloy stainless construction, heavy 3/16" wall tubing, welded top saddle and full base plate included—ideal for durable, code-compliant surface mounted post railing systems. Order SKU P136CPS or contact CRL for custom heights and finishes. Buy now or request a quote.
