CRL 316 Polished Stainless 48" Upwards Locking Ladder Pull
CRL 316 Polished Stainless 48" Upwards Locking Ladder Pull
Regular price
$2,093.31 CAD
Regular price
Sale price
$2,093.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA48PS
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

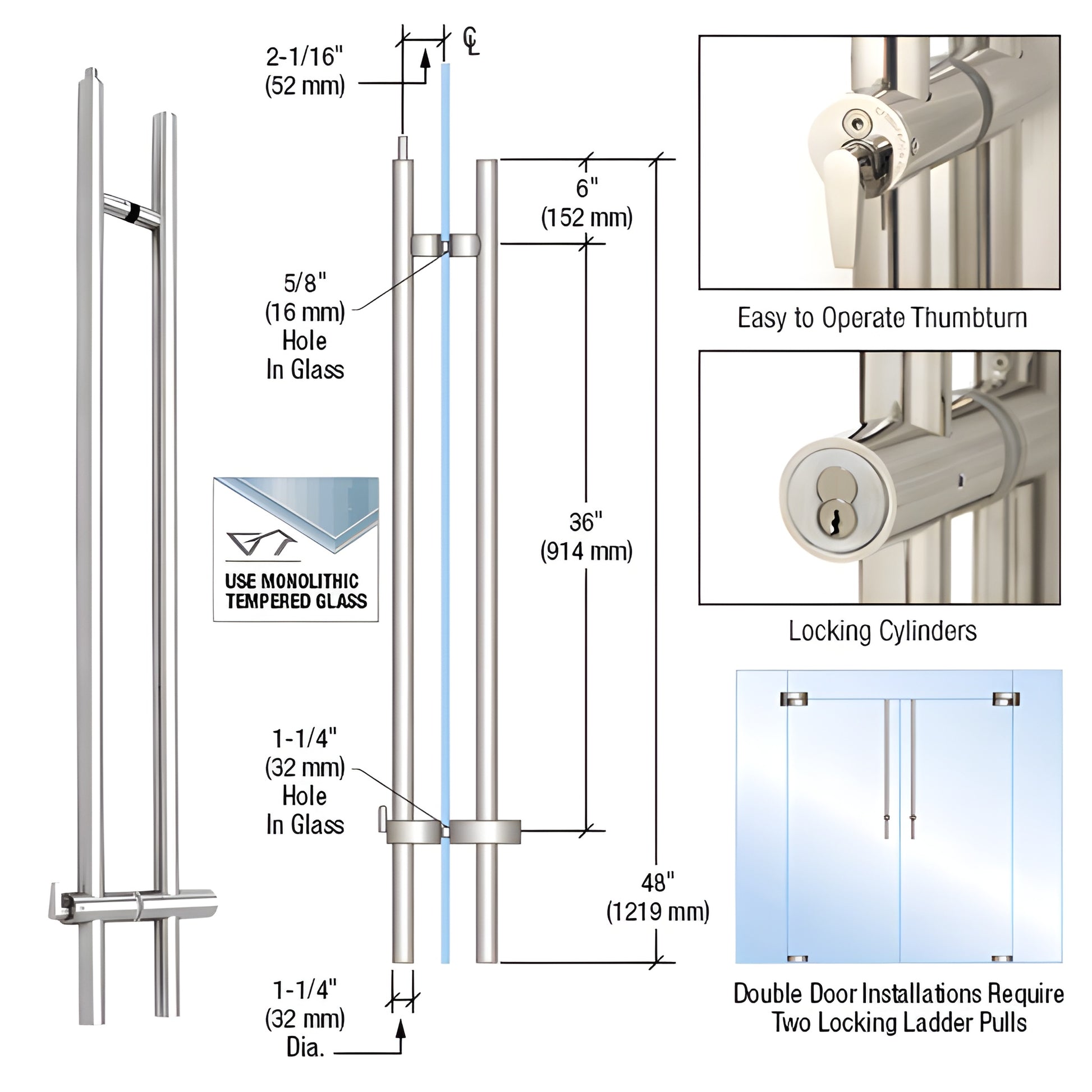

| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 2 |
| Mounting | Type Back-to-Back |
| Overall Length 48 in. | (1219 mm) |
Overview
Our CRL LLPUA Series Upward Locking Ladder Pulls offer a state-of-the-art locking mechanism that secures into the ceiling, eliminating the need to bend or reach.
Designed for 1/2" to 3/4" thick tempered glass doors, these pulls are available in brushed and polished stainless steel finishes.
The lock operates at a convenient height of 42" above the floor, making it ADA compliant, and comes with a 7-pin Rim Cylinder with an interchangeable core for flexibility.
Custom sizes ship within one to two weeks, and additional accessories such as Push/Pull Indicators and Dustproof Keepers can be purchased separately.
Please note, glass fabrication is required, and stainless steel finishes require periodic maintenance to preserve their appearance.
For detailed shipping weights and other inquiries, contact CRL Customer Service.
Designed for 1/2" to 3/4" thick tempered glass doors, these pulls are available in brushed and polished stainless steel finishes.
The lock operates at a convenient height of 42" above the floor, making it ADA compliant, and comes with a 7-pin Rim Cylinder with an interchangeable core for flexibility.
Custom sizes ship within one to two weeks, and additional accessories such as Push/Pull Indicators and Dustproof Keepers can be purchased separately.
Please note, glass fabrication is required, and stainless steel finishes require periodic maintenance to preserve their appearance.
For detailed shipping weights and other inquiries, contact CRL Customer Service.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
