CRL 316 Polished Stainless 60" Locking Ladder Pull
CRL 316 Polished Stainless 60" Locking Ladder Pull
Regular price
$2,195.71 CAD
Regular price
Sale price
$2,195.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPA60PS
Shipping Weight: 14.99 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.99 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

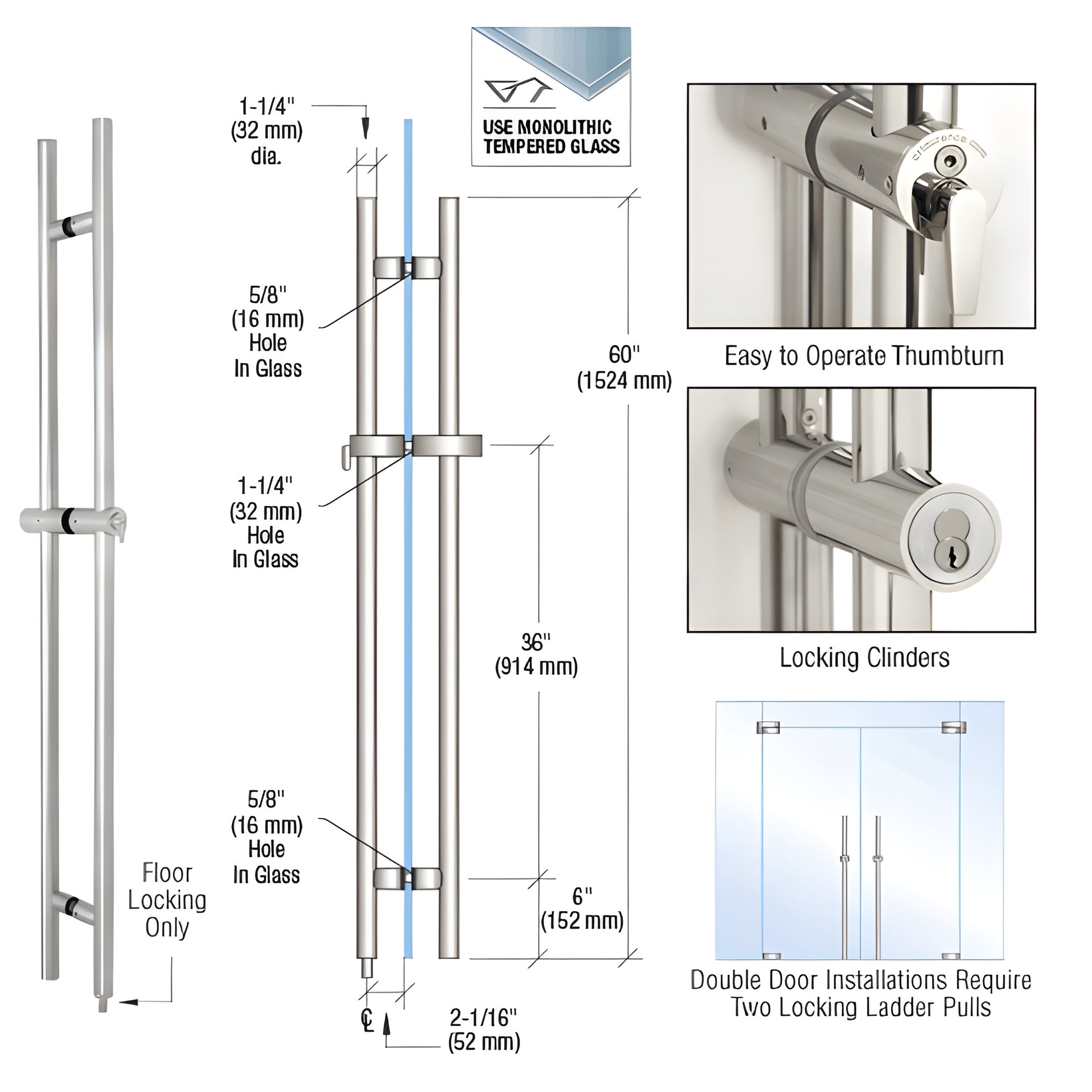

| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 3 |
| Mounting | Type Back-to-Back |
| Overall Length 60 in. | (1524 mm) |
Overview
Our CRL LLPA Locking Ladder Pulls feature a concealed deadbolt mechanism, ensuring seamless operation with an A.D.A.
compatible thumbturn.
Ideal for glass doors between 1/2" to 3/4" thick, these pulls lock securely into the floor and are available in brushed or polished 316 stainless steel finishes.
Custom sizes can be shipped within one to two weeks, and A.D.A.
compliant models are ready upon request.
Equipped with a standard 7-pin Rim Cylinder, these pulls offer flexibility with interchangeable cores and can accommodate most standard Rim type cylinders.
Note that glass fabrication is required, and additional accessories such as Push/Pull Indicators and Dustproof Keepers are available separately.
compatible thumbturn.
Ideal for glass doors between 1/2" to 3/4" thick, these pulls lock securely into the floor and are available in brushed or polished 316 stainless steel finishes.
Custom sizes can be shipped within one to two weeks, and A.D.A.
compliant models are ready upon request.
Equipped with a standard 7-pin Rim Cylinder, these pulls offer flexibility with interchangeable cores and can accommodate most standard Rim type cylinders.
Note that glass fabrication is required, and additional accessories such as Push/Pull Indicators and Dustproof Keepers are available separately.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
