CRL 316 Polished Stainless 60" Upwards Locking Ladder Pull
CRL 316 Polished Stainless 60" Upwards Locking Ladder Pull
Regular price
$2,195.71 CAD
Regular price
Sale price
$2,195.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA60PS
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 2 |
| Mounting | Type Back-to-Back |
| Overall Length 60 in. | (1524 mm) |
Overview

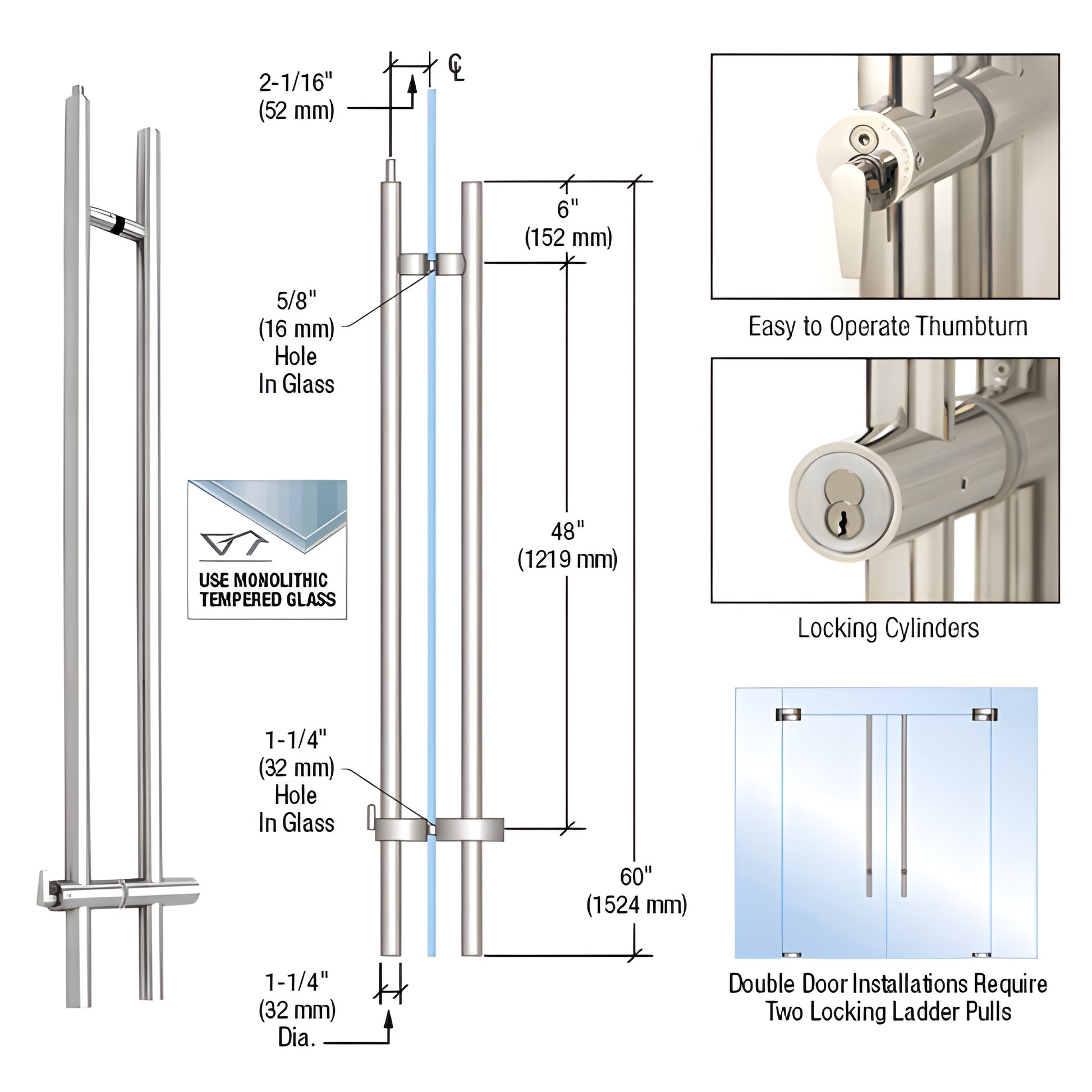

The CRL LLPUA Series Upward Locking Ladder Pulls feature a concealed deadbolt mechanism that locks securely into the ceiling, eliminating the need for floor locks.
Designed for easy operation, the thumbturn is positioned at a comfortable 42 inches above the floor—ideal for ADA compatibility.
Suitable for 1/2" to 3/4" thick tempered glass doors, these pulls are available in both brushed and polished 316 stainless steel.
Custom sizes can be shipped within one to two weeks, and a variety of interchangeable 7-pin and 6-pin cylinder options are available.
Please note, glass fabrication is required, and push/pull indicators and dustproof keepers are sold separately.
For more information on maintaining the stainless steel finish, refer to the Stainless Steel Disclaimer in our Technical References.
Contact CRL Customer Service for exact shipping weights if needed.
Designed for easy operation, the thumbturn is positioned at a comfortable 42 inches above the floor—ideal for ADA compatibility.
Suitable for 1/2" to 3/4" thick tempered glass doors, these pulls are available in both brushed and polished 316 stainless steel.
Custom sizes can be shipped within one to two weeks, and a variety of interchangeable 7-pin and 6-pin cylinder options are available.
Please note, glass fabrication is required, and push/pull indicators and dustproof keepers are sold separately.
For more information on maintaining the stainless steel finish, refer to the Stainless Steel Disclaimer in our Technical References.
Contact CRL Customer Service for exact shipping weights if needed.
