CRL 316 Polished Stainless 84" Locking Ladder Pull
CRL 316 Polished Stainless 84" Locking Ladder Pull
Regular price
$2,474.73 CAD
Regular price
Sale price
$2,474.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPA84PS
Shipping Weight: 17.857 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 17.857 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

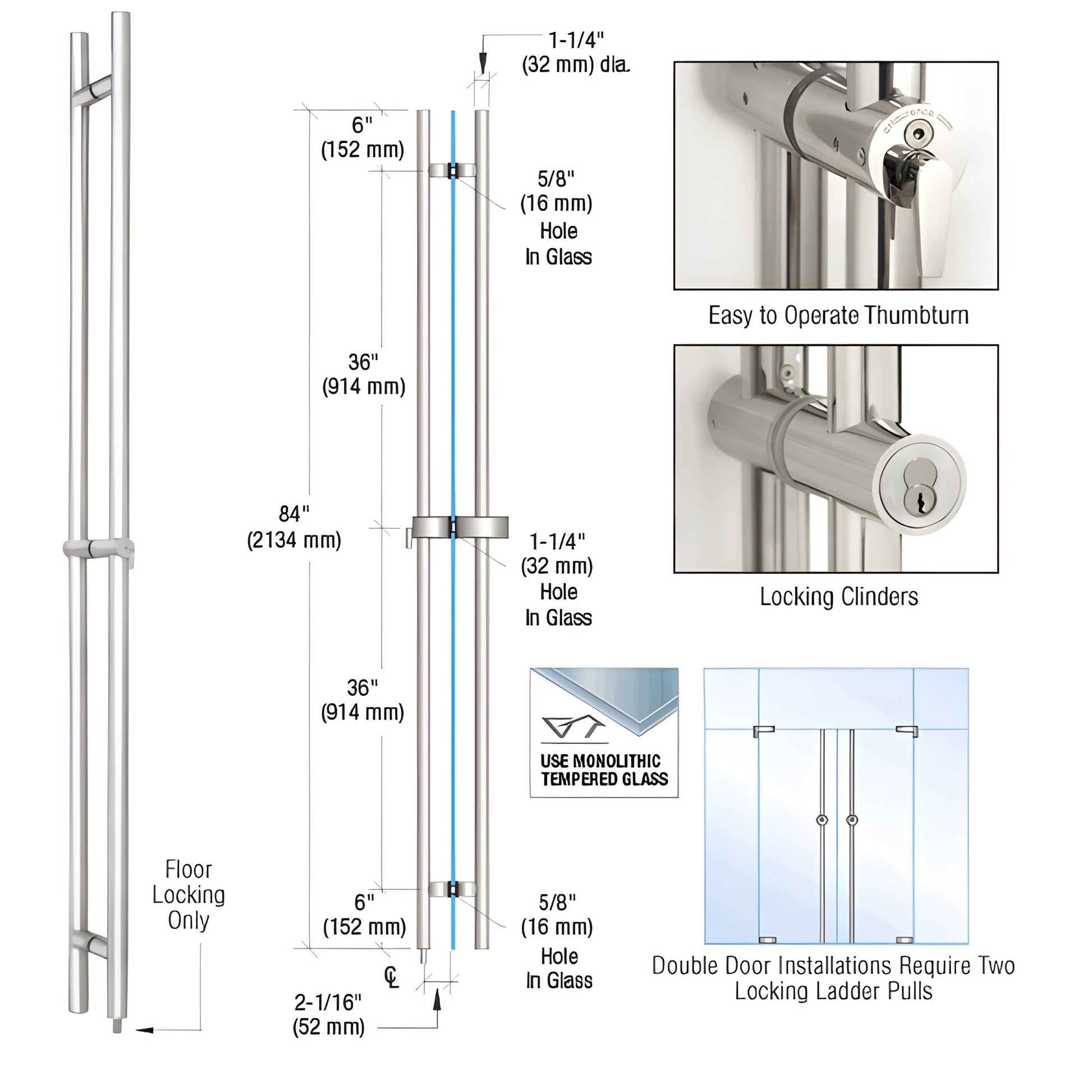

Description
| Adaptor For | 1 3/4 Inch Thick Doors LLPA134ADT |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 1/2 in. (12 mm) |
| Glazing Thickness | 3/4 in. (19 mm) |
| Material | 316 Stainless Steel |
| Mounting Points | 3 |
| Mounting | Type Back-to-Back |
| Overall Length 84 in. | (2134 mm) |
Overview
Our CRL LLPA Locking Ladder Pulls offer a seamless and secure solution for glass doors, featuring a fully concealed deadbolt locking mechanism.
Designed for 1/2" to 3/4" (12 to 19 mm) thick tempered glass, these pulls lock into the floor and are available in sleek brushed or polished stainless steel finishes.
Enjoy easy operation with a key or thumbturn positioned at a comfortable 42" above the floor.
For added versatility, adaptor kits for 1-3/4" (45 mm) thick doors and A.D.A.
compliant models are available.
Custom sizes can be shipped within one to two weeks.
Please note, glass fabrication is required and additional accessories such as Push/Pull Indicators and Dustproof Keepers are sold separately.
Designed for 1/2" to 3/4" (12 to 19 mm) thick tempered glass, these pulls lock into the floor and are available in sleek brushed or polished stainless steel finishes.
Enjoy easy operation with a key or thumbturn positioned at a comfortable 42" above the floor.
For added versatility, adaptor kits for 1-3/4" (45 mm) thick doors and A.D.A.
compliant models are available.
Custom sizes can be shipped within one to two weeks.
Please note, glass fabrication is required and additional accessories such as Push/Pull Indicators and Dustproof Keepers are sold separately.
