CRL 316 Polished Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection

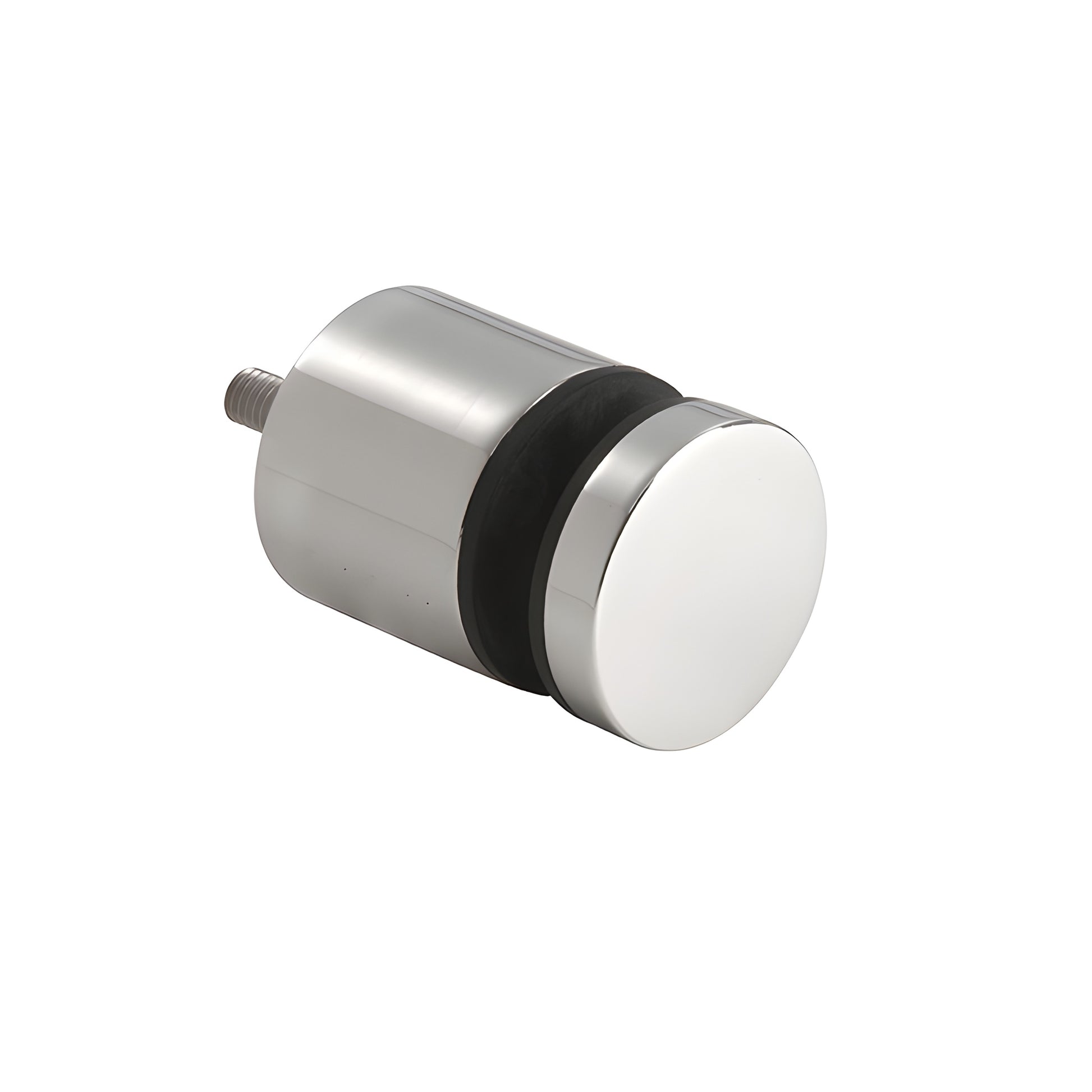

The CRL Glass Rail Standoff Base and Caps feature a compact design with a base, cap, and mounting stud, ideal for enhancing hand or guard railings.
Made from high-grade Alloy 316 stainless steel, these standoffs are perfect for use with 11/16" & 27/32" (17.52mm and 21.52 mm) laminated glass using Kuraray SentryGlas® Interlayer.

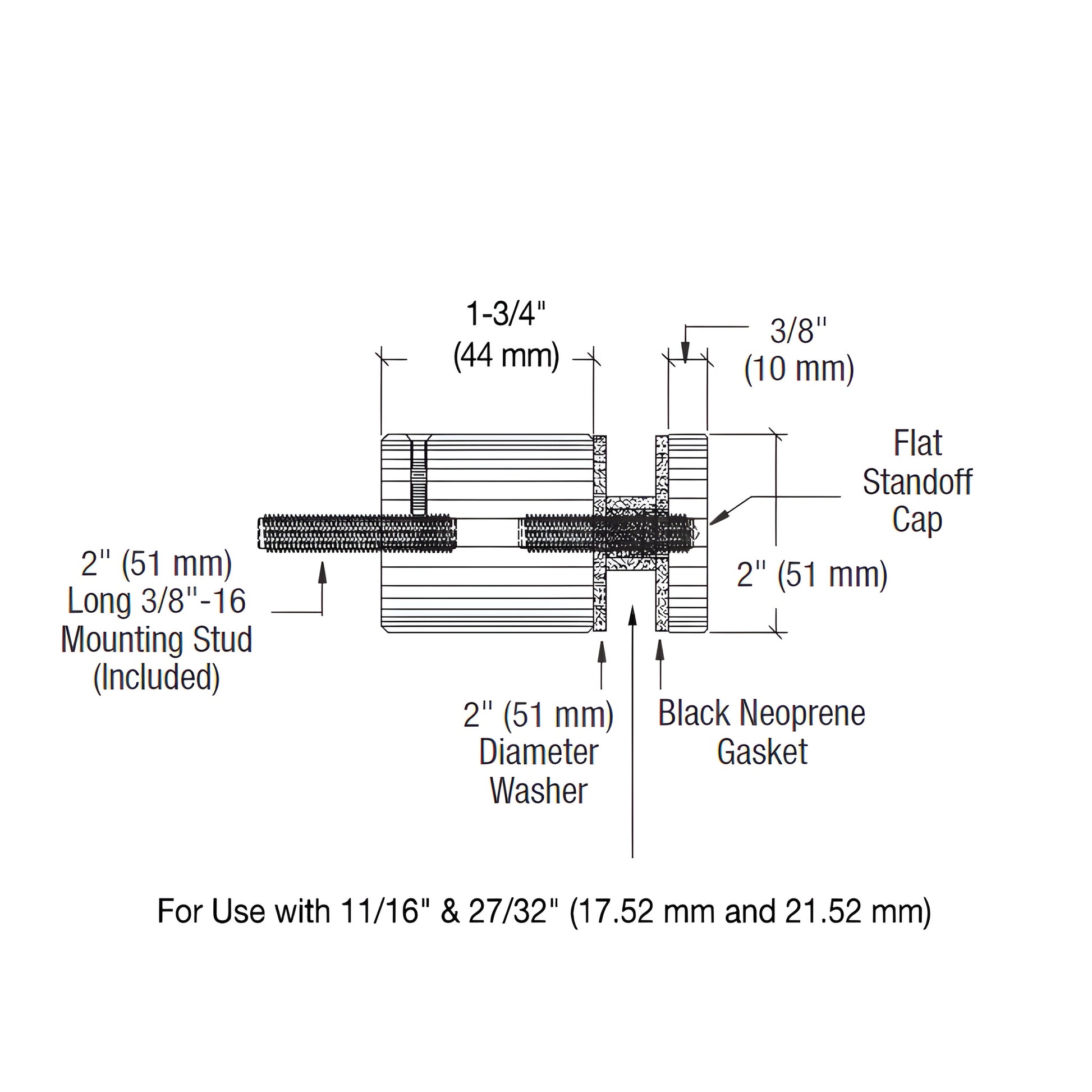

Easily mountable on steel, concrete, or wood substrates, the 2" (51 mm) diameter standoff with a 1-3/4" (44.5 mm) base includes a 3/8"-16 x 2" Allen stud for secure installation.
Remember to use the Cat.
No.
SSW12 Spanner Wrench to tighten the cap and ensure proper spacing between fittings, which affects installation and glass panel widths.
For detailed specifications and engineering reports, visit the CRL website.
Note, stainless steel requires regular maintenance to protect its finish.
