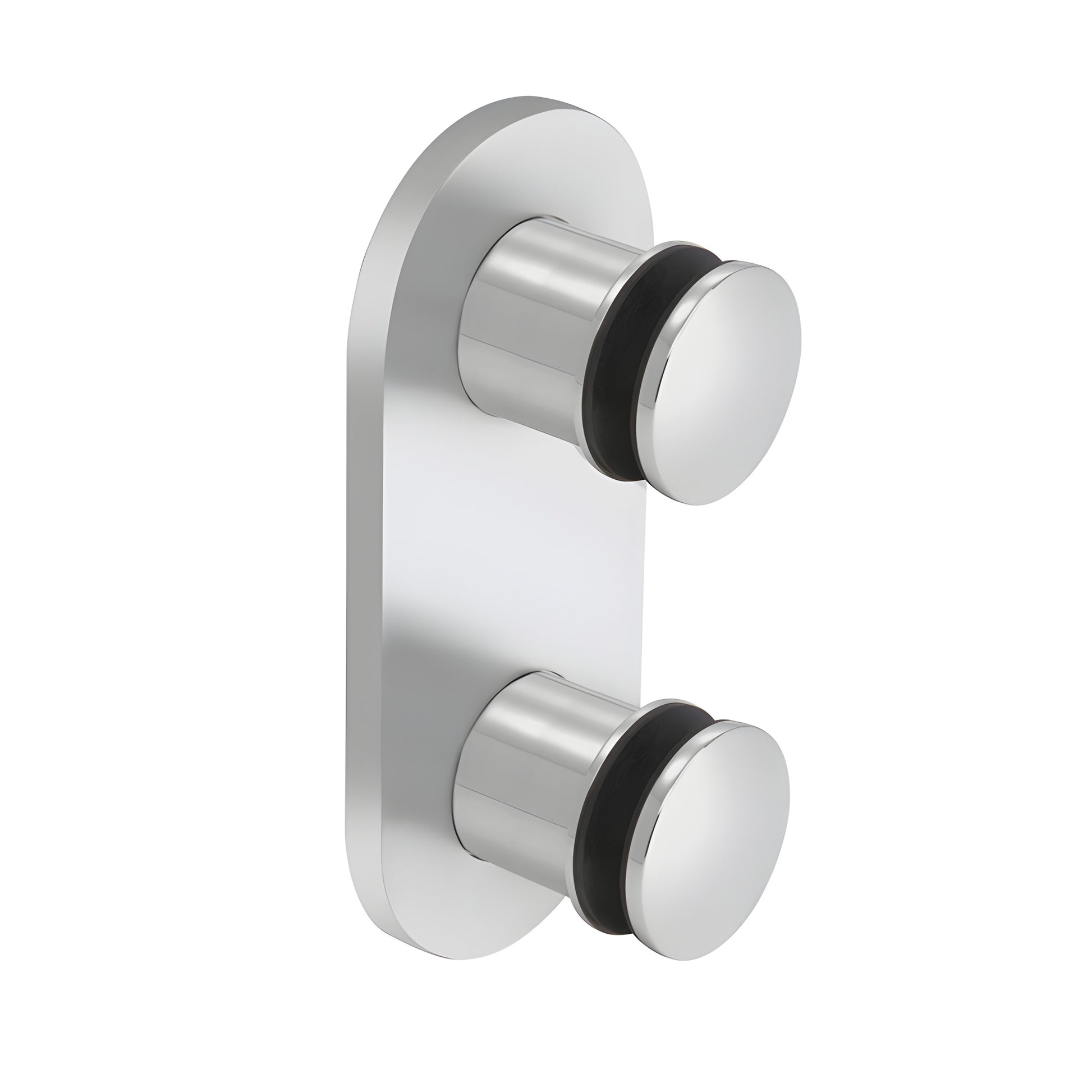

CRL 316 Polished Stainless Steel Dome 2-3/8" Glass Rail Standoff Fitting With Mounting Plate

CRL 316 Polished Stainless Steel Dome 2-3/8" Glass Rail Standoff Fitting With Mounting Plate

$543.28 CAD
$543.28 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# RS0B25PS
Shipping Weight: 7.2 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Base Plate Height 9-1/4 in.(235 mm)
Base Plate Length 4 in.(102 mm)
Base Plate Thickness 3/8 in.(10 mm)
Finish/ColorPolished Stainless Steel
Material316 Stainless Steel
Width 2 in.(51 mm)

Overview

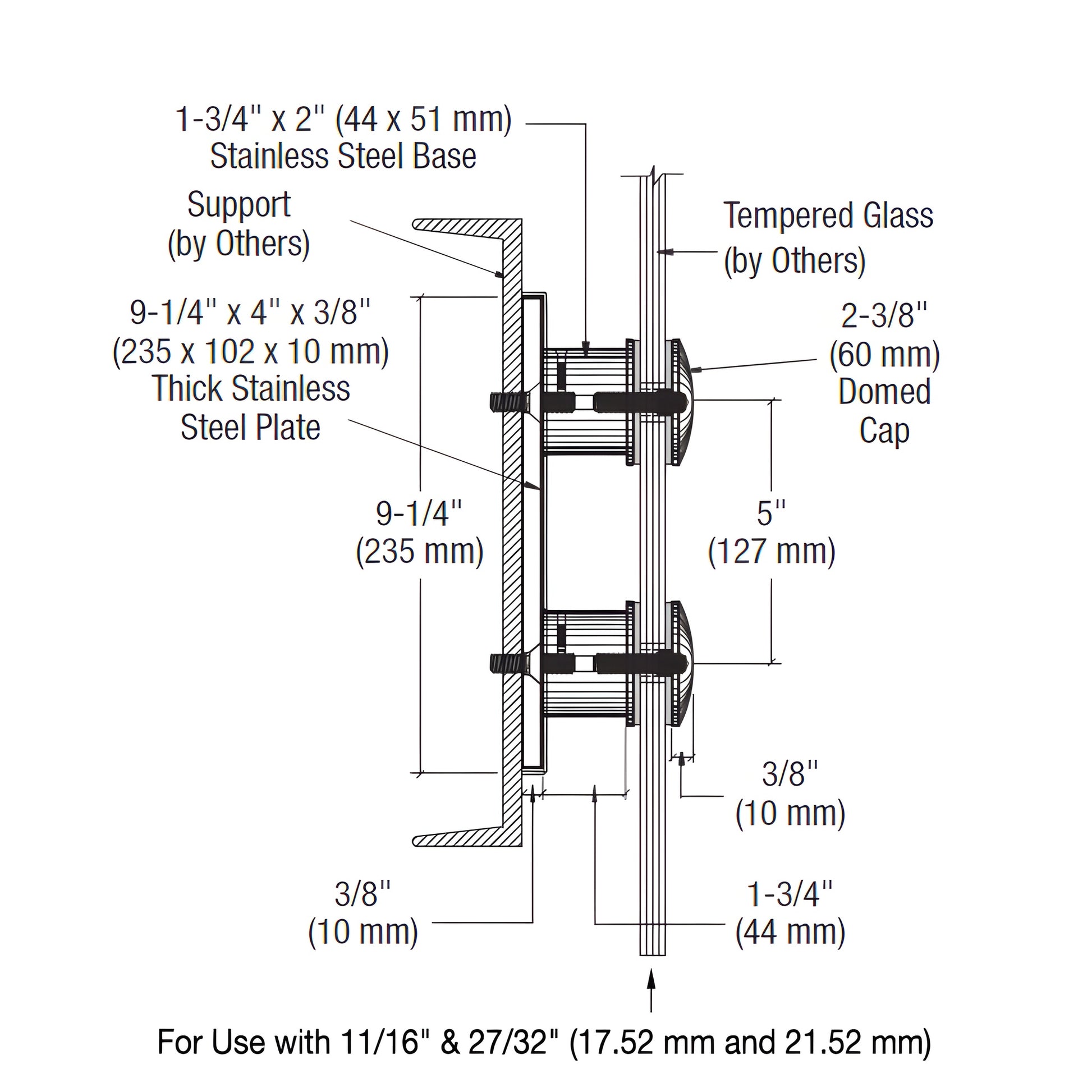

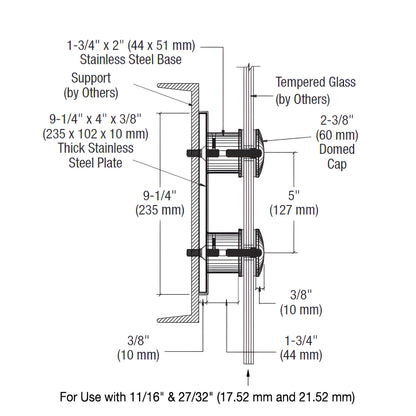

This Point Supported Standoff Fitting is expertly designed for use with 1/2" and 3/4" Monolithic Tempered Glass or 9/16" and 27/32" Laminated Tempered Glass featuring Kuraray SentryGlas® Interlayer.
Crafted from high-grade 316 stainless steel alloy, it boasts a robust 4" x 9-1/4" back plate for superior adjustment and stability with four anchor points.
This fitting includes a 2-3/8" diameter domed cap with a threaded stainless steel rod to firmly secure your glass panel.
Available in popular stainless steel finishes, this product can be customized for specific job site conditions, with attachment anchors for wood, concrete, or steel sold separately.
