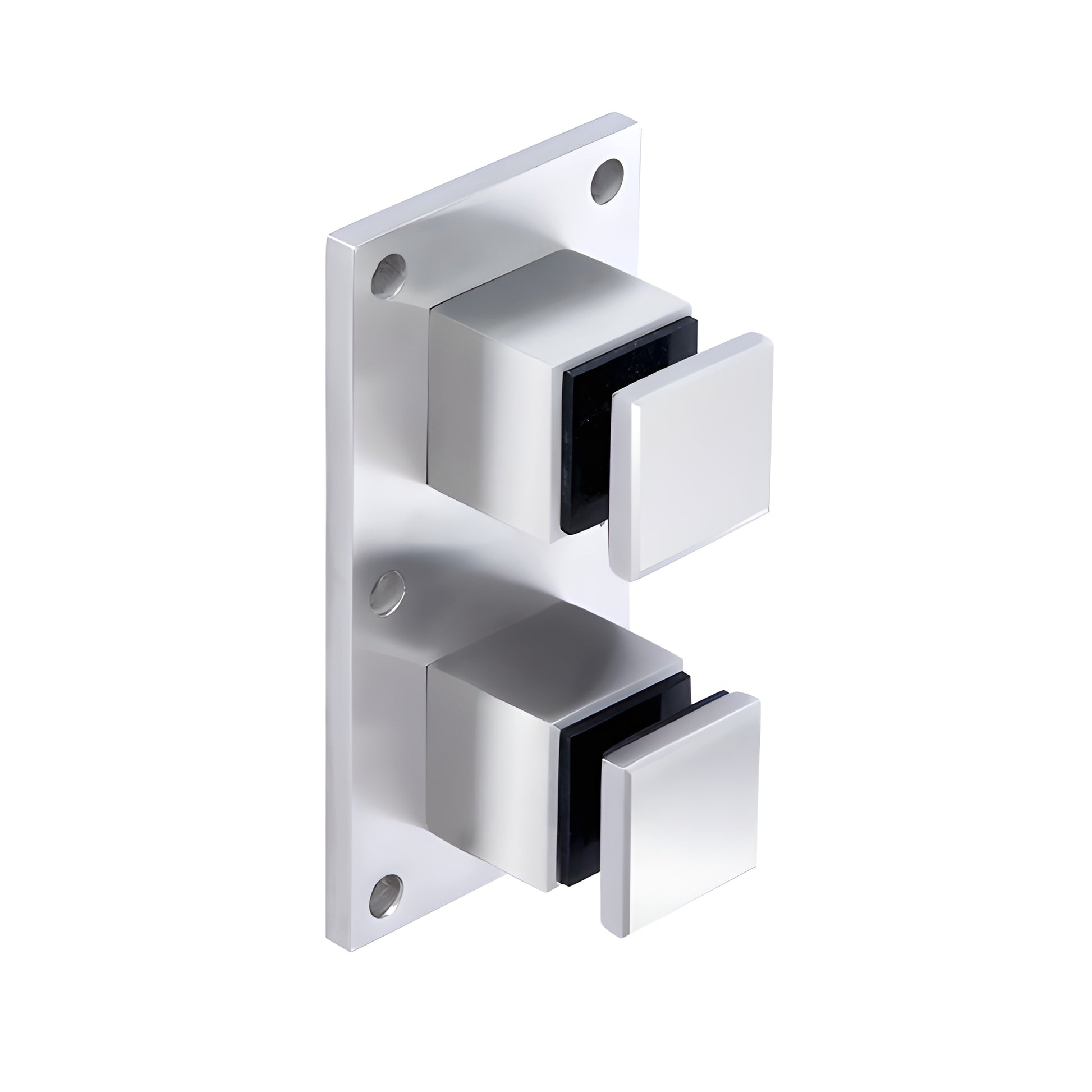

CRL 316 Polished Stainless Steel Standard 2" Square Glass Rail Standoff Fitting with Mounting Plate
Item # SS0B20PS
Finish (2)
-
Brushed Stainless Steel -
Polished Stainless Steel
Overview
| SKU | SS0B20PS |
|---|---|
| Sold As | 1 Each |
| Alloy | 316 |
| Base Plate Height | 8 in. (203 mm) |
| Base Plate Length | 4 in. (102 mm) |
| Base Plate Thickness | 3/8 in. (10 mm) |
| Cap Height | 2 in. (51 mm) |
| Finish/Color | Polished Stainless Steel |
| Height | 8 in. (203 mm) |
| Material | 316 Stainless Steel |
Description
- High Grade 316 Stainless Steel Designed to Mount to Wood, Concrete or Steel
- Custom Finishes Available

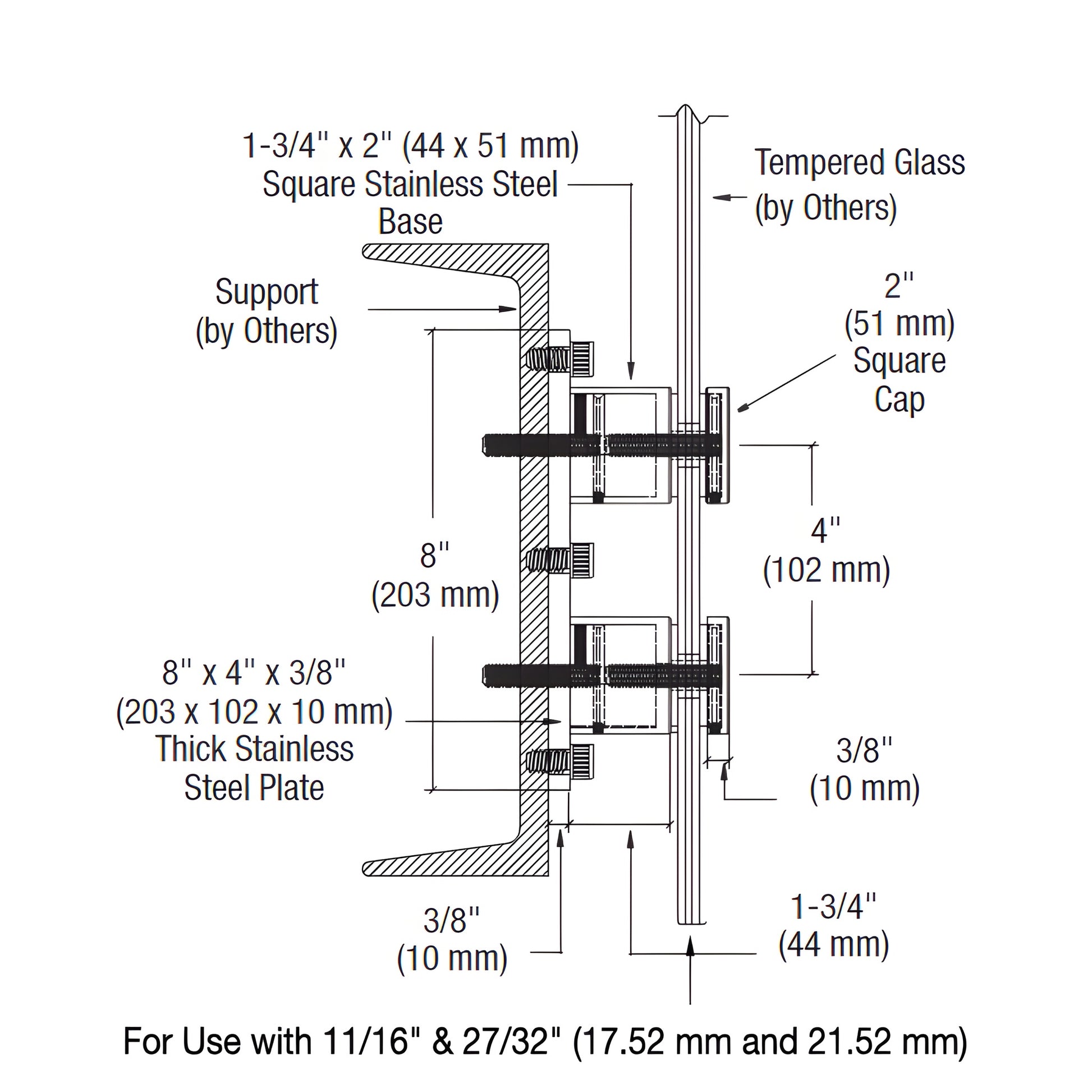

CRL Glass Rail Square Standoff Fittings can be used to mount glass up to 27/32" (21.52 mm) thick. This 316 grade stainless steel assembly can be mounted to a wood, concrete, or steel substrate, and features 2" (51 mm) square caps on threaded bolts to secure the glass. The 2" (51 mm) Square Standoffs are fastened to a 3/8" (10 mm) thick stainless steel plate that is pre-drilled for mounting. Two popular stainless finishes are available from stock.
SPECIFICATIONS:
Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Hole spacing between Standoffs is 4" (102 mm)
Product Warning:
For Use with 11/16" & 27/32" (17.52mm and 21.52 mm) Laminated Glass Using Kuraray SentryGlas® Interlayer. Do not use with raw or annealed glass)
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
