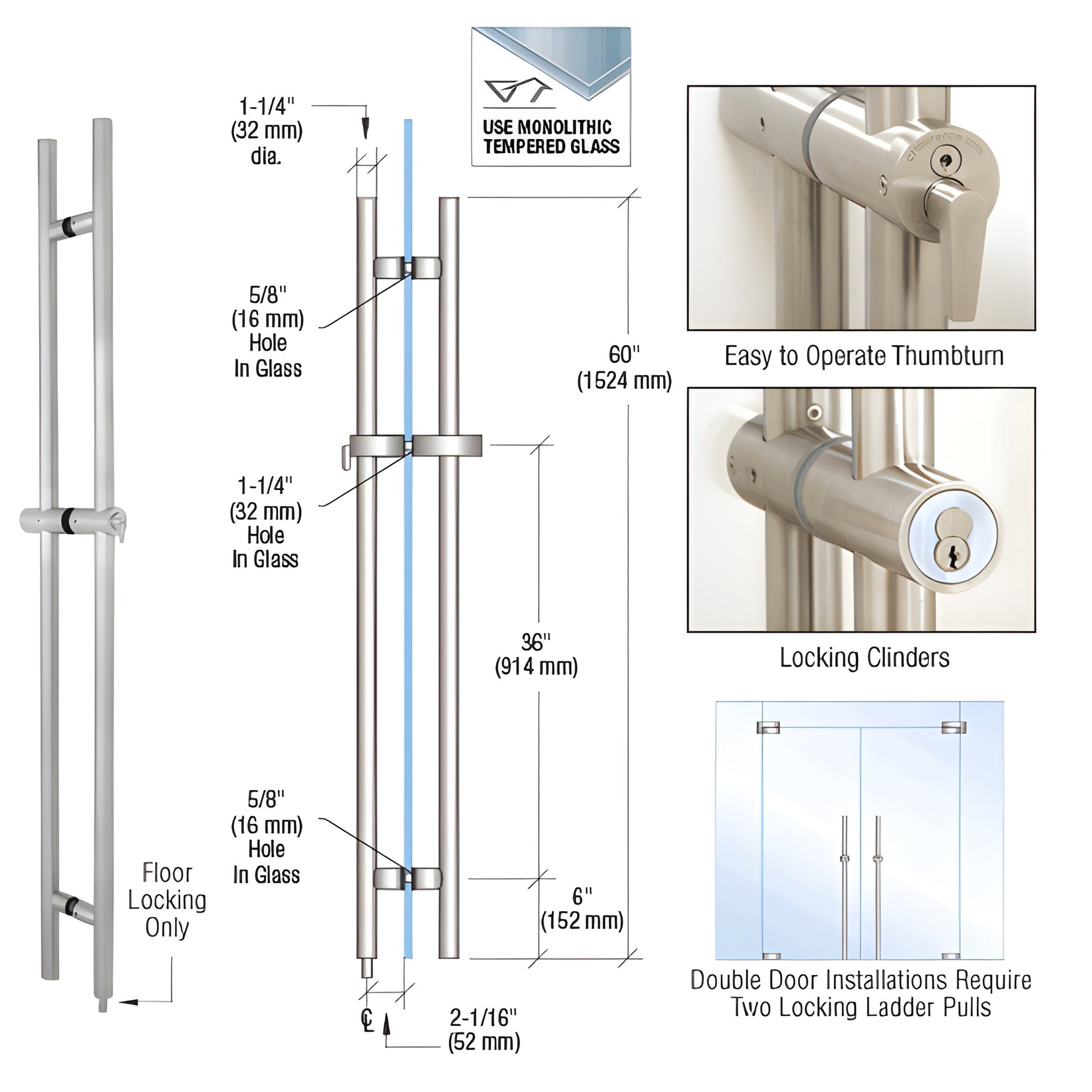

• LLPA60BS 60 in brushed stainless locking ladder pull for 1/2-3/4 tempered glass; floor-locking, ADA thumbturn.
1 1

CRL

CRL 316 Stainless Steel 60 in Locking Ladder Pull Handle

CRL 316 Stainless Steel 60 in Locking Ladder Pull Handle

$1,983.29 CAD
$1,983.29 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# LLPA60BS
Shipping Weight: 14.991 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adaptor For 1 3/4 Inch Thick Doors
LLPA134ADT
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Material
316 Stainless Steel
Mounting Points
3
Mounting Type
Back-to-Back
Overall Length
60 in. (1524 mm)

Overview

  • A.D.A. compatible thumbturn
  • Locks into the floor only
  • For 1/2" to 3/4" (12 to 19 mm) tempered glass
  • Adaptor kits available for 1-3/4" (45 mm) thick doors - LLPA134ADT
  • Operates at a comfortable 42" (1.07 m) above the floor
  • 1-1/4" (32 mm) diameter alloy tube — available in 316 brushed or polished stainless steel
  • Custom sizes ship within one to two weeks
  • A.D.A. compliant models available - Ask for a quote here

Our CRL LLPA Locking Ladder Pulls feature a fully concealed deadbolt locking mechanism designed for glass doors — a secure, modern locking ladder pull for 1/2"–3/4" tempered glass. Lock or unlock at an ergonomic height using the ADA thumbturn or key; the unit secures into the floor only. Available finishes: brushed stainless steel and polished stainless steel (316 option for higher corrosion resistance).

This locking ladder pull ships with a standard 7-pin rim cylinder with interchangeable core (IC) — use as supplied, remove the core for rekeying, or replace with a different 7-pin core. The LLPA accepts most standard rim-type cylinders. If you require proprietary 6-pin cylinders, remove the supplied rim cylinder and replace it with your chosen rim cylinder.

NOTE: Glass fabrication is required. Push/pull indicators in matching finishes and dustproof keepers are sold separately.

Product Warning:
The Medico cylinder will not work with standard LLPA series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.


SKU: LLPA60BS — For pricing, lead times, or A.D.A. model quotes, contact CRL today.

Specifications

CAD Drawings - pdf
LLPA60 DLLPA60 CAD Drawings.pdf
