CRL 42 in Brushed Stainless P7 135° Angle Post Railing Kit - No Fittings
CRL 42 in Brushed Stainless P7 135° Angle Post Railing Kit - No Fittings
Regular price
$503.61 CAD
Regular price
Sale price
$503.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F42ABS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder coat finishes available

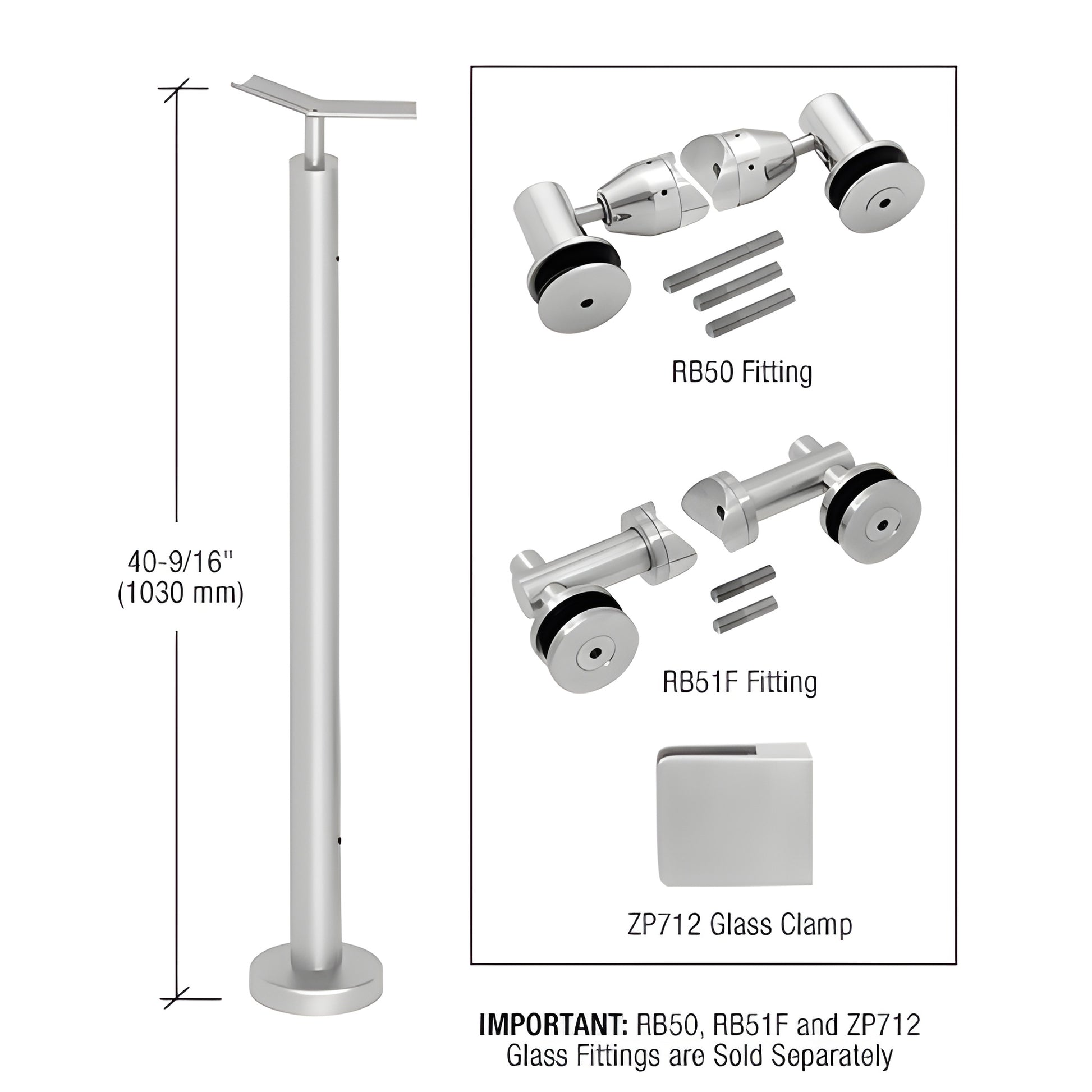

CRL Surface Mounted Post Railing Kits (SKU: P7F42ABS) are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are engineered for guardrail and handrail applications. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 handrail tubing. Kits include a base plate, base cover flange, and welded top saddle. To attach the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack; minimum order one pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Ideal for stainless steel post railing, glass panel railing, and custom-height handrail projects. Contact CRL to order SKU P7F42ABS or to request custom finishes and dimensions.
