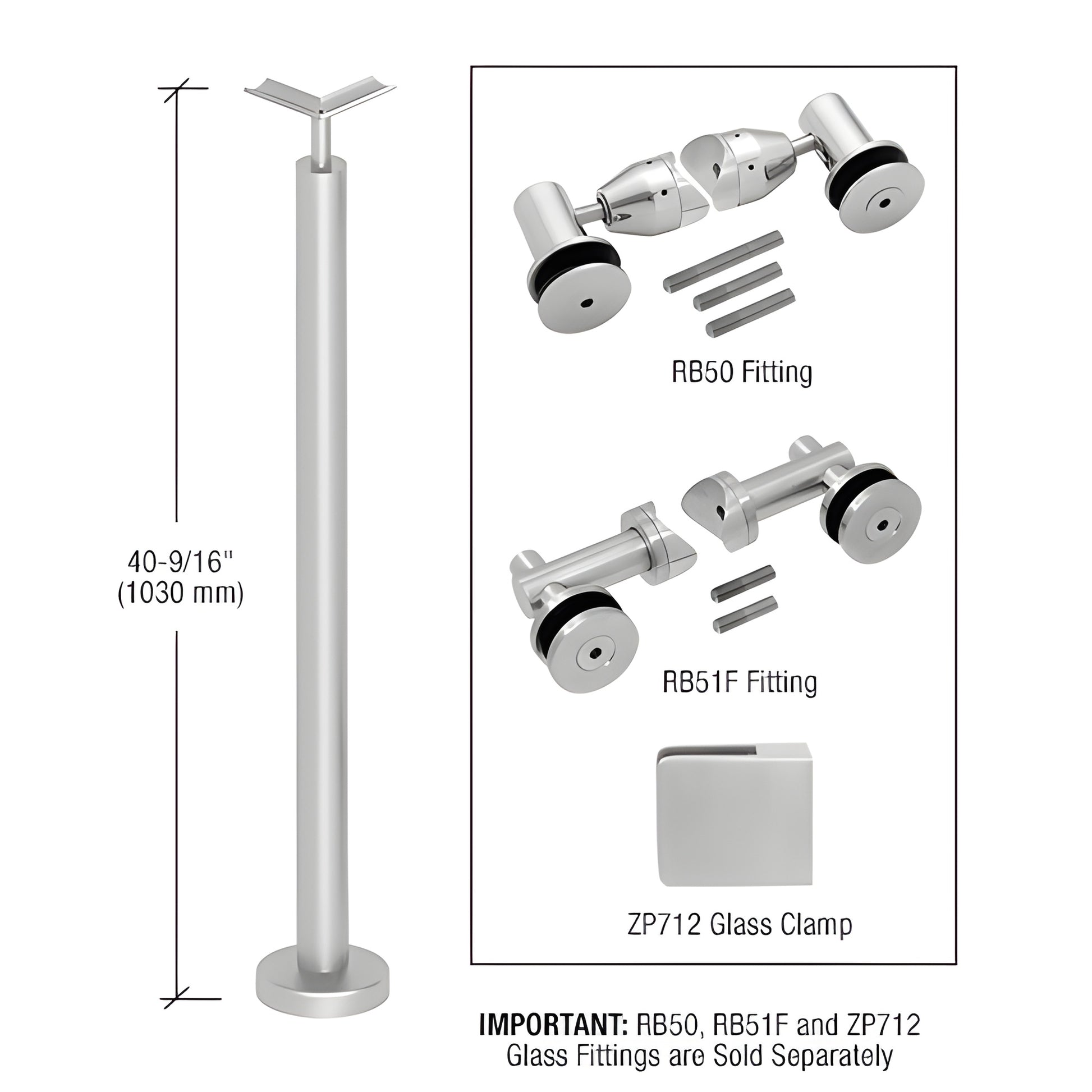

CRL 42 in P7 Brushed Stainless Corner Post Railing Kit No Fittings
CRL 42 in P7 Brushed Stainless Corner Post Railing Kit No Fittings
Regular price
$503.61 CAD
Regular price
Sale price
$503.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F42LBS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels (glass, acrylic or other infill)
- Glass attachment fittings sold separately (RB509BS required when ordering RB50BS glass fittings)
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom post heights also available
- Two standard stainless finishes; custom powder paint finishes available
- SKU: P7F42LBS
CRL Surface Mounted Post Railing Kits are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are engineered for guardrail and handrail applications. These surface-mounted stainless steel post kits support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 handrail tubing via welded top saddles and saddles. Each kit ships complete with a base plate, base cover flange, and welded top saddle—ideal for commercial and residential glass railing systems and handrail retrofit projects.
For attaching the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack). Note: glass attachment fittings and fasteners for glass are not included and must be ordered separately.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; purchase these separately to complete glass railing installations.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Order the P7F42LBS surface mounted stainless steel post railing kit or contact CRL for custom heights and finishes to match your glass railing project.
