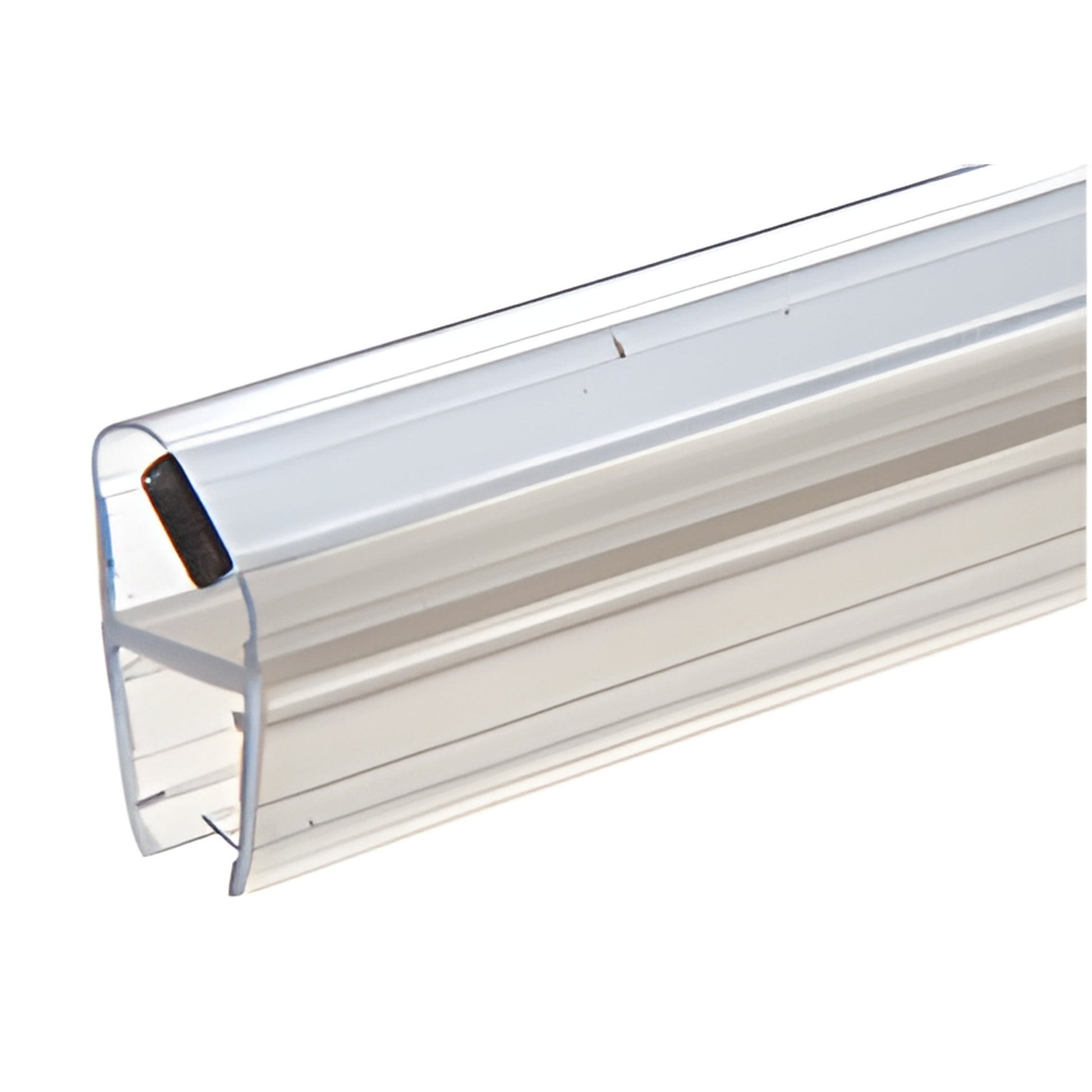

CRL 45° Left-Hand Magnetic Glass-to-Glass Profile, Fits 3/8-1/2" Glass

• Provides positive door closure
• Uses monolithic tempered glass
• Mix-and-match configurations to achieve desired result
• Made of co-extruded plastic with soft magnetic receiver

This CRL Magnetic Profile (SKU: PMA10) is a glass-to-glass magnetic profile designed for shower and partition doors. It accommodates 3/8" to 1/2" (10–12 mm) tempered glass and features a soft magnetic receiver in a durable co-extruded plastic body for reliable, long-lasting positive door closure. Ideal for glass shower door seals and frameless glass installations, this magnetic profile helps eliminate rattling and improves door alignment.

Applications — glass-to-glass magnetic profile configurations:

• 180° (one-direction swing): use PMA10 + PMB10
• 180° (both-direction swing): use PMC10 + PMC10
• 135° (door swings out only): use PMA10 + PMC10
• 90° (door swings out only; reverse for polarity): use PMA10 + PMB10

Specifications & installation notes:

• Glass thickness: 3/8"–1/2" (10–12 mm)
• Suggested gap size: 7/16" (11 mm)
• Suitable for monolithic tempered glass doors and frameless glass shower enclosures

Product Warning:
Suggested gap size is 7/16" (11 mm).

Optimize your frameless glass door with the PMA10 magnetic profile for secure, quiet closure — order PMA10 or contact us for help selecting the right configuration.
