Product Details
- Provides Fixed Panel Support for Enclosures Not Reaching the Ceiling
- No Hole Drilling Required

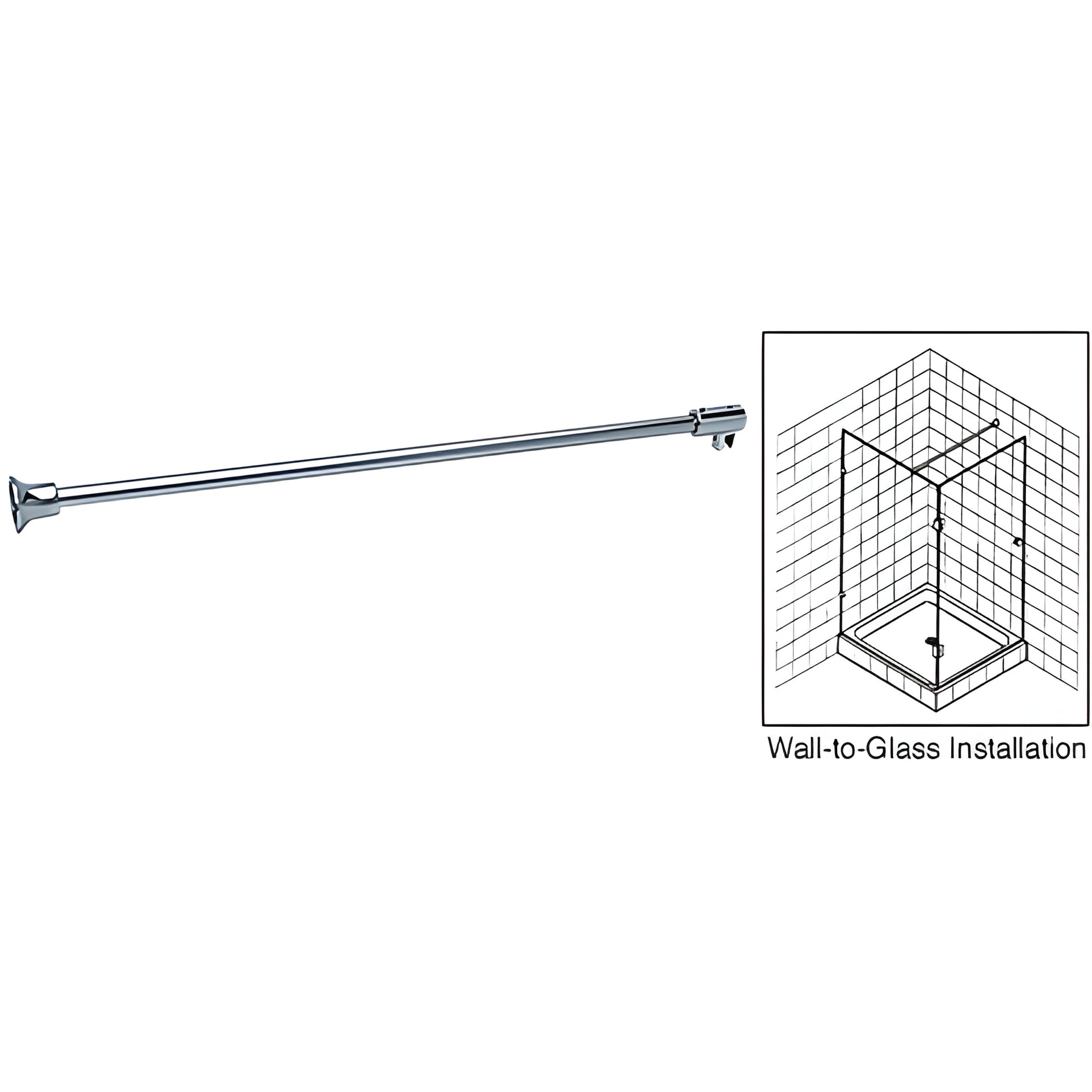

This CRL Fixed Panel Support Bar will stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed panel. The Glass-to-Glass Bar has a solid brass end cap with a swiveling U-shaped receptacle on both sides to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. No holes or cut-outs required. Stock Bars are 51" (1.3 m) in length. Simply cut-to-size required.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass End Caps
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Bar Length: 51" (1.3 m)
Includes: All Required Mounting Hardware
