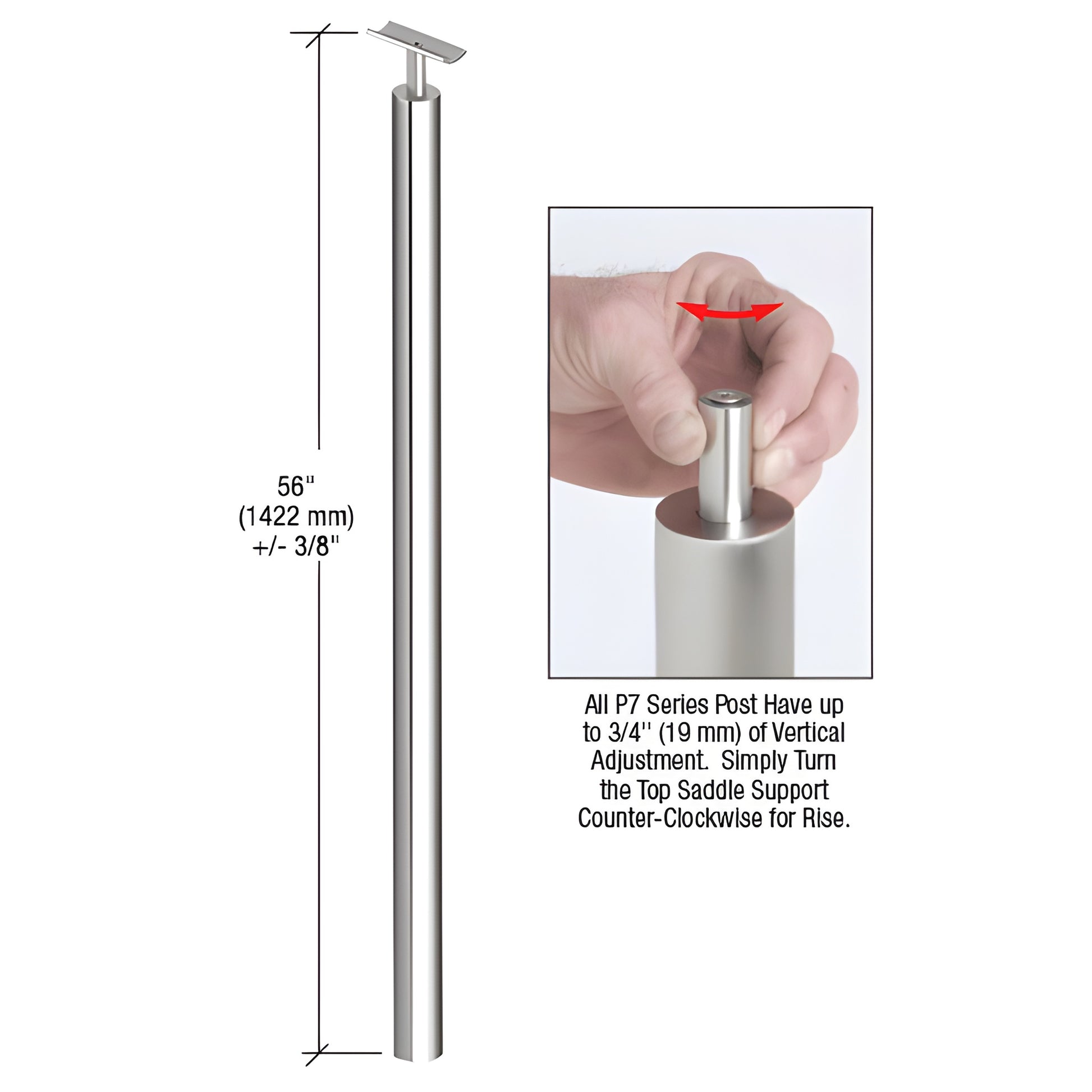

CRL Polished Stainless 56" P7 Series 180 Degree Blank Post
Finish (2)
- Brushed Stainless Steel
- Polished Stainless Steel
Overview
| SKU | P7BPFPS |
|---|---|
| Sold as | 1 Each |
| Base Plate Cover Included | Yes |
| Base Plate Diameter | 4-3/4 in. (121 mm) |
| Base Plate Mounting Holes | 2 |
| Base Plate Thickness | 3/8 in. (10 mm) |
| Finish/Color: | Polished Stainless Steel |
| Material | Stainless Steel |
| Mounting Hole Diameter | 9/16 in. (14 mm) |
Description
Product Details
- For Both Commercial and Residential Applications
- Glass Attachment Fittings Sold Separately
- Two Standard Stainless Finishes Available
- Ready to be Drilled and Cut to Size
CRL's P7 Series Blank Post Kits are manufactured from 1-1/2" Schedule 40 or 1.9" (48 mm) outside diameter Stainless Steel Tubing, and are designed for guard rail or hand rail applications. Vertical Adjustable Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 Hand Rail Tubing. Kits are ready to be cut to size then drill and tapped for glass brackets. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
