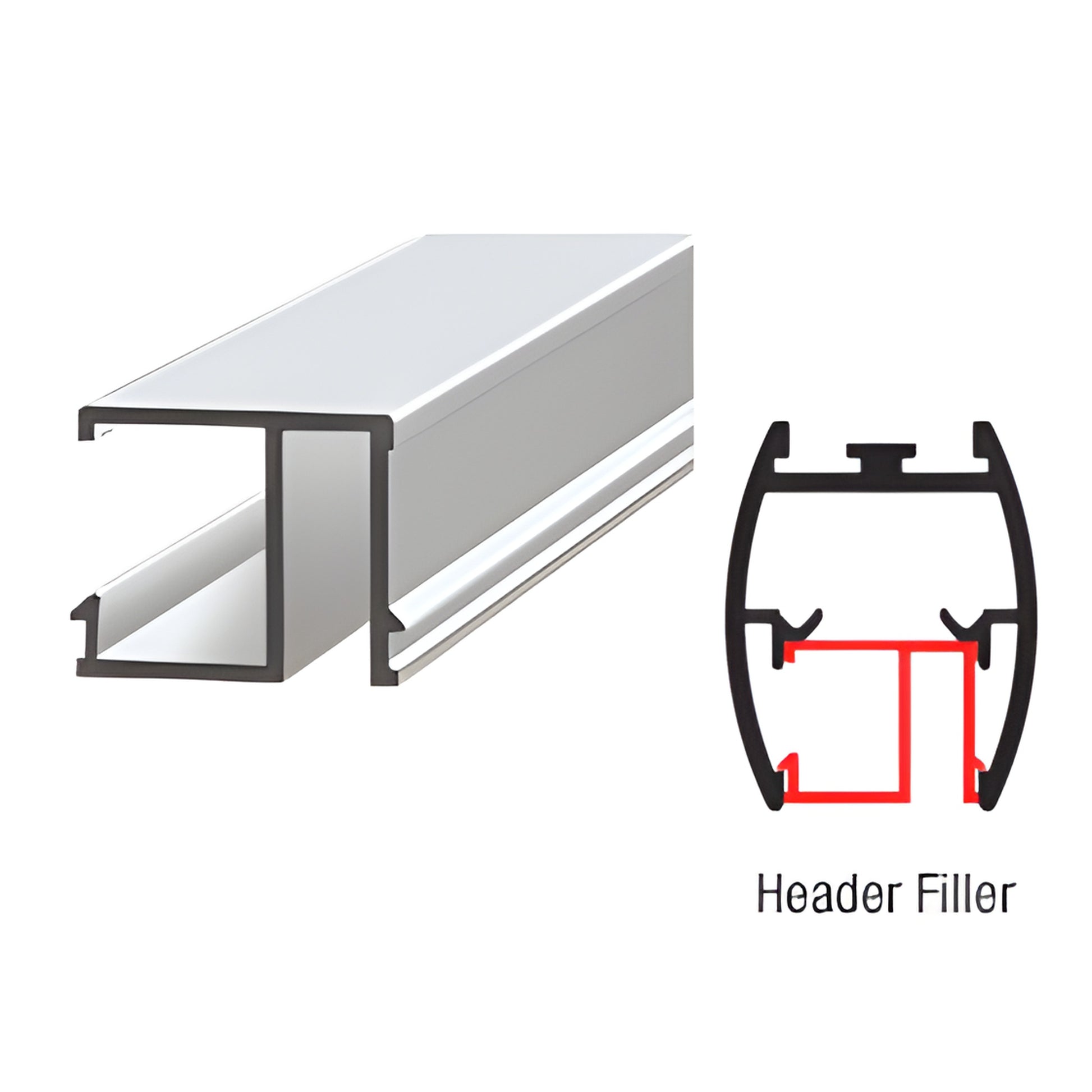

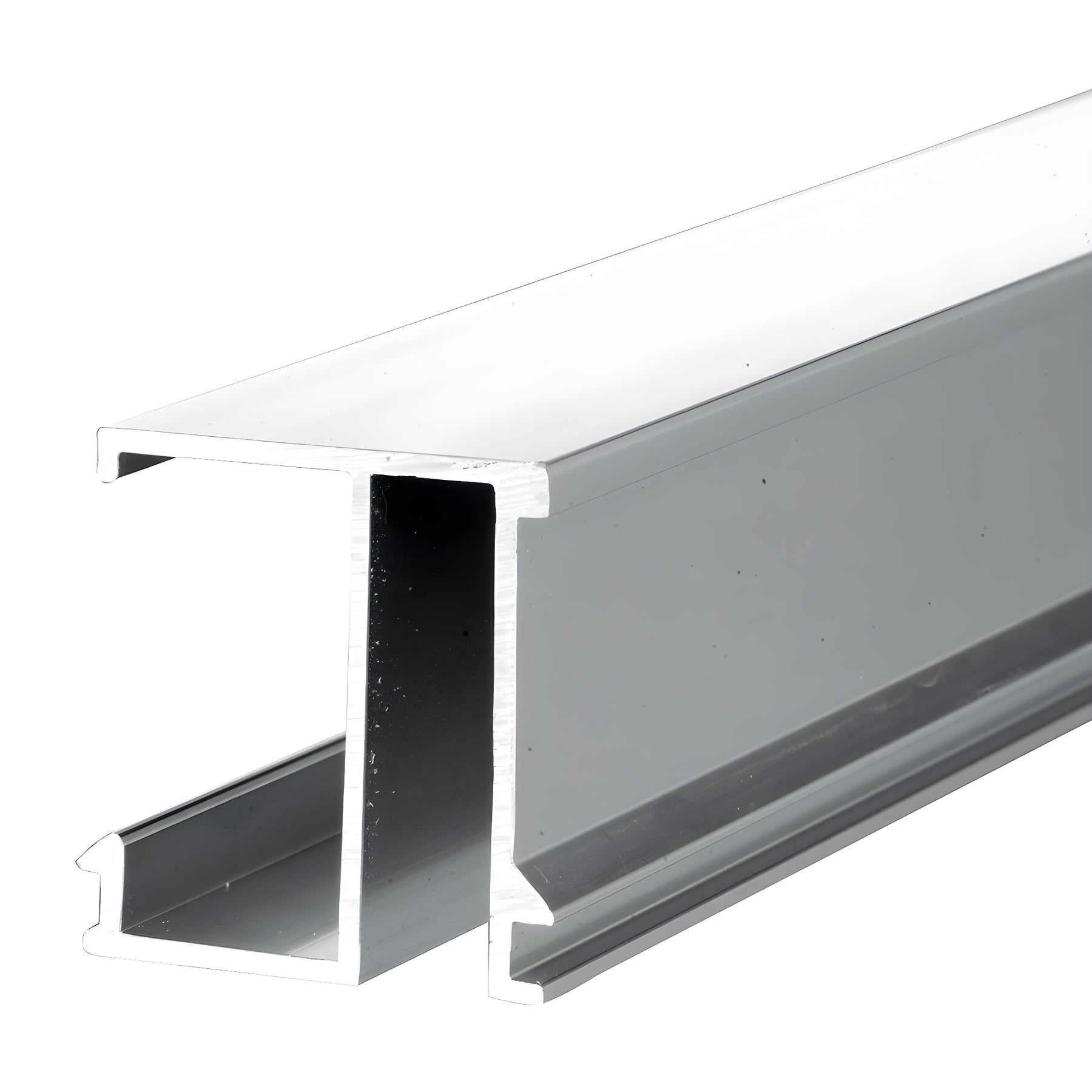

CRL 72" Brite Anodized Header Filler for CK/DK Cottage Sliders

• Individual supplementary extrusions and hardware components to convert our frameless shower door kits into angled enclosures or wider inline units
• Header filler used where fixed panels are located
• Finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze to match CRL kits
• DIY friendly — or send us a drawing to customize a unit for you
• Use with monolithic tempered glass

CRL Header Filler for CK/DK Cottage Series Sliders components (SKU: DK62BA) add versatility to frameless sliding shower door kits. Use these header fillers and matching extrusions to add panels, create a designer angled enclosure, or build a custom inline sliding unit. Stock lengths are available for headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and other accessories to complete your frameless shower door assembly.

Use these components to build the exact enclosure you require, or send us a drawing with dimensions and we will create a customized kit (glass and silicone not included). Each custom kit includes installation instructions.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions — Aluminum; Towel Bar — Brass Tubing; Knob — Solid Brass
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. These items must be ordered separately. Polycarbonates are translucent in color.


For custom quotes or design help for your frameless sliding shower door enclosure (DK62BA),
