CRL 84in Brushed Stainless D-Shape Locking Ladder Glass Door Pull

• Locks operate at a comfortable 42" (1.07 m) height above the floor
• Fits 1/2" to 3/4" (12 to 19 mm) glass — ideal for frameless glass door applications
• 316 alloy stainless steel tubing for corrosion resistance and commercial glass door use
• Deadbolt locks into the floor (custom models that lock into the top or both top and bottom available on request)

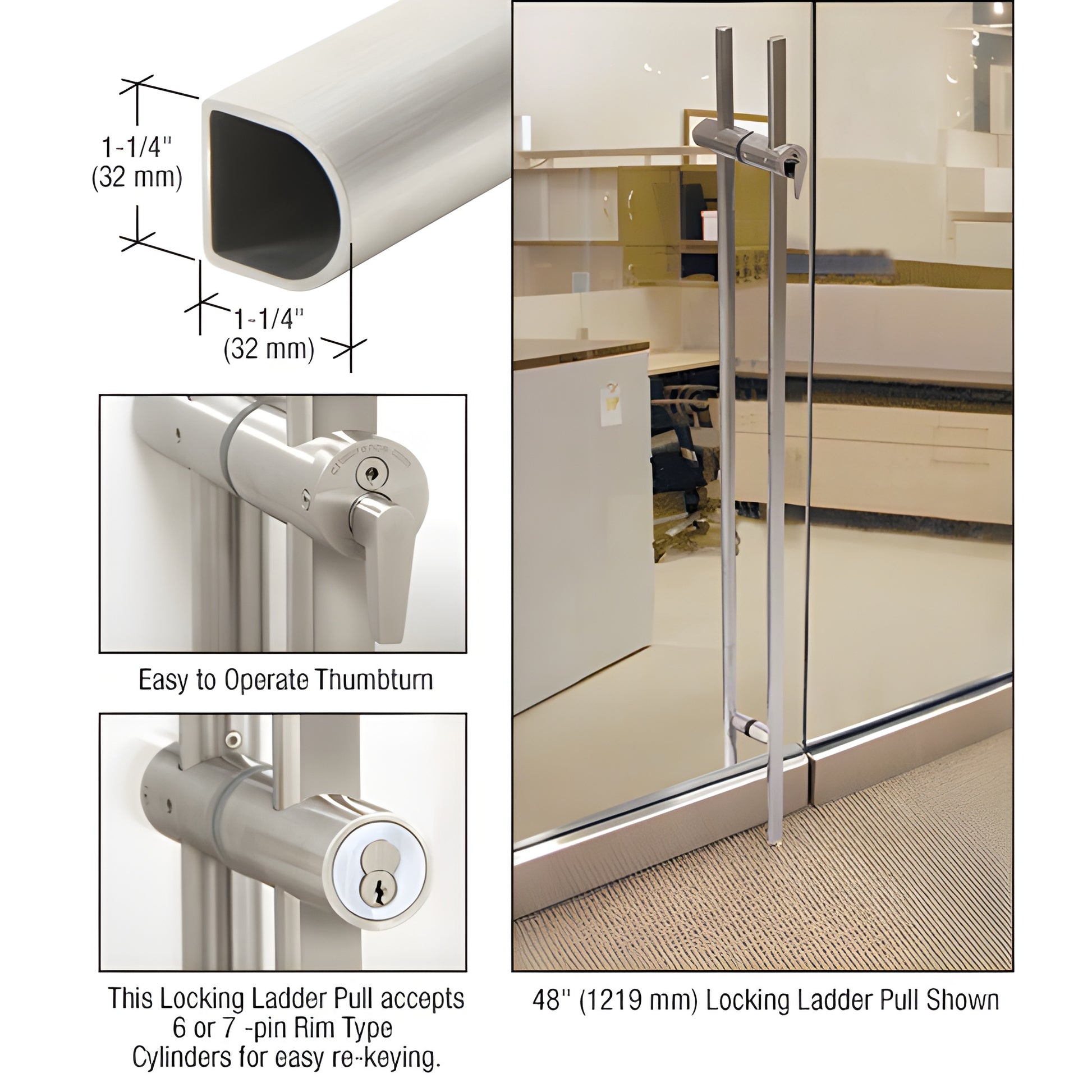

CRL Designer Series "D" Shape Locking Ladder Pulls (SKU: DLLPA84BS) feature a fully concealed deadbolt locking mechanism that secures into the floor for secure glass door access control. The key or thumbturn is positioned at a comfortable height above the finished floor for easy operation. Supplied with a standard 7-pin rim cylinder with interchangeable core — use it as supplied, remove the core to have it re-keyed, or replace the entire rim cylinder to accept proprietary 6-pin or other rim-type cylinders. These ladder pulls accept most standard rim-type cylinders used in commercial glass doors and frameless storefronts.

Note: Glass fabrication is required for installation.

Product Warning:
Glass fabrication is required.

Stainless Steel Advisory:

For the DLLPA84BS D-shape locking ladder pull for glass doors, contact CRL Customer Service to verify specifications, request glass fabrication guidance, or place your order.
