CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 3/4" Glass
CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 3/4" Glass
Regular price
$1,192.22 CAD
Regular price
Sale price
$1,192.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B34D
Shipping Weight: 63.39 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 63.39 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

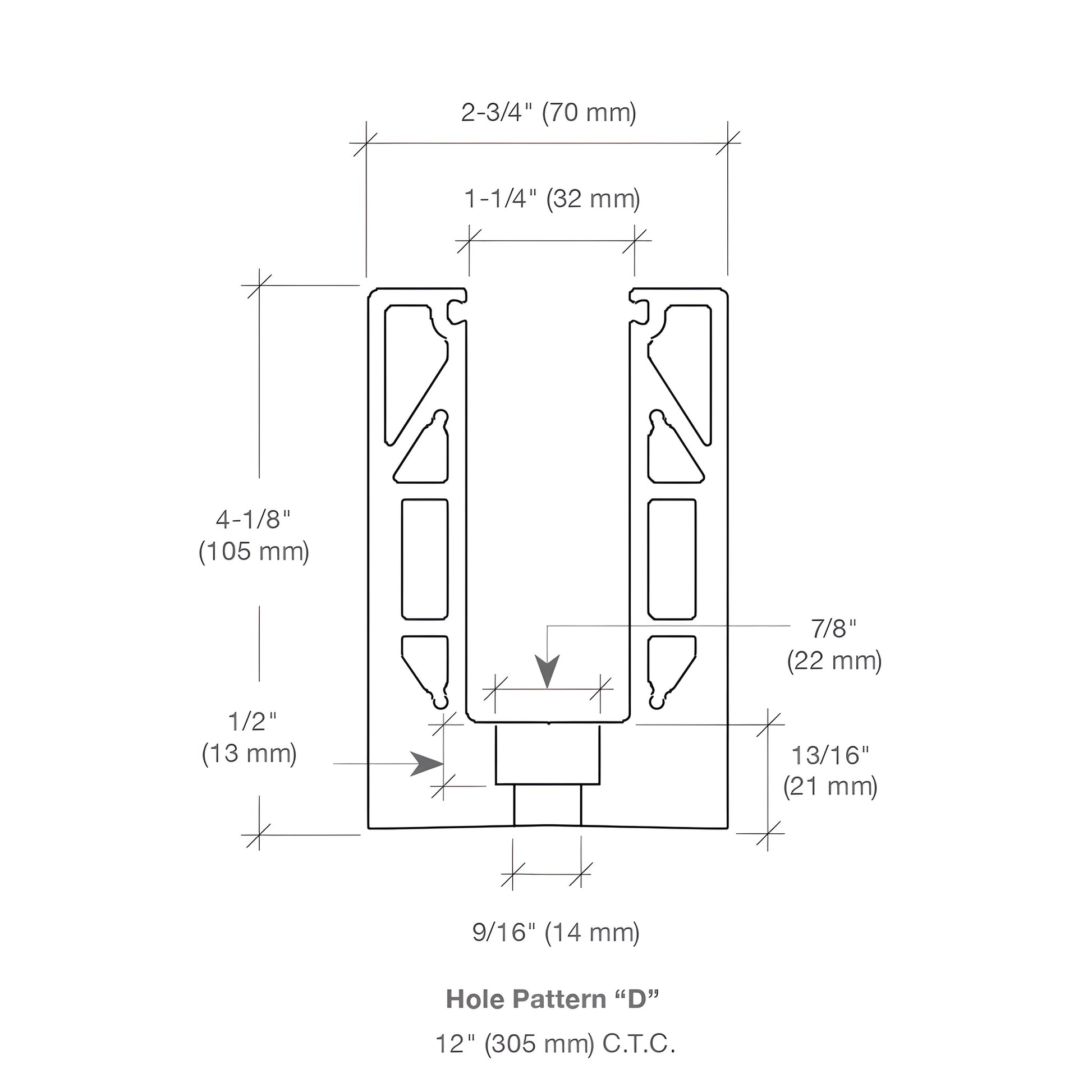

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glass | Included No |
| Glazing Thickness | 3/4 in. (19 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Width 2-3/4 in. | (70 mm) |
Overview

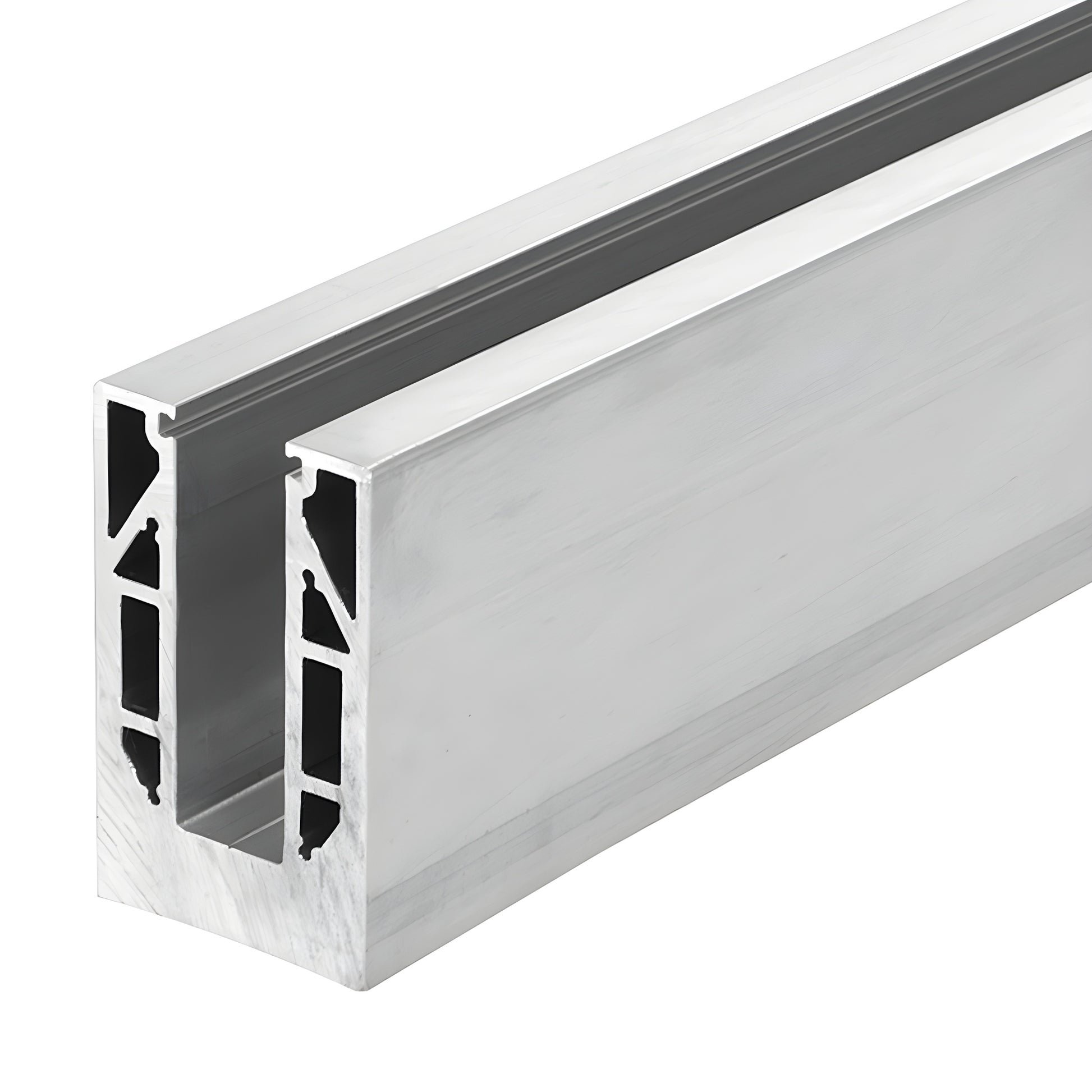

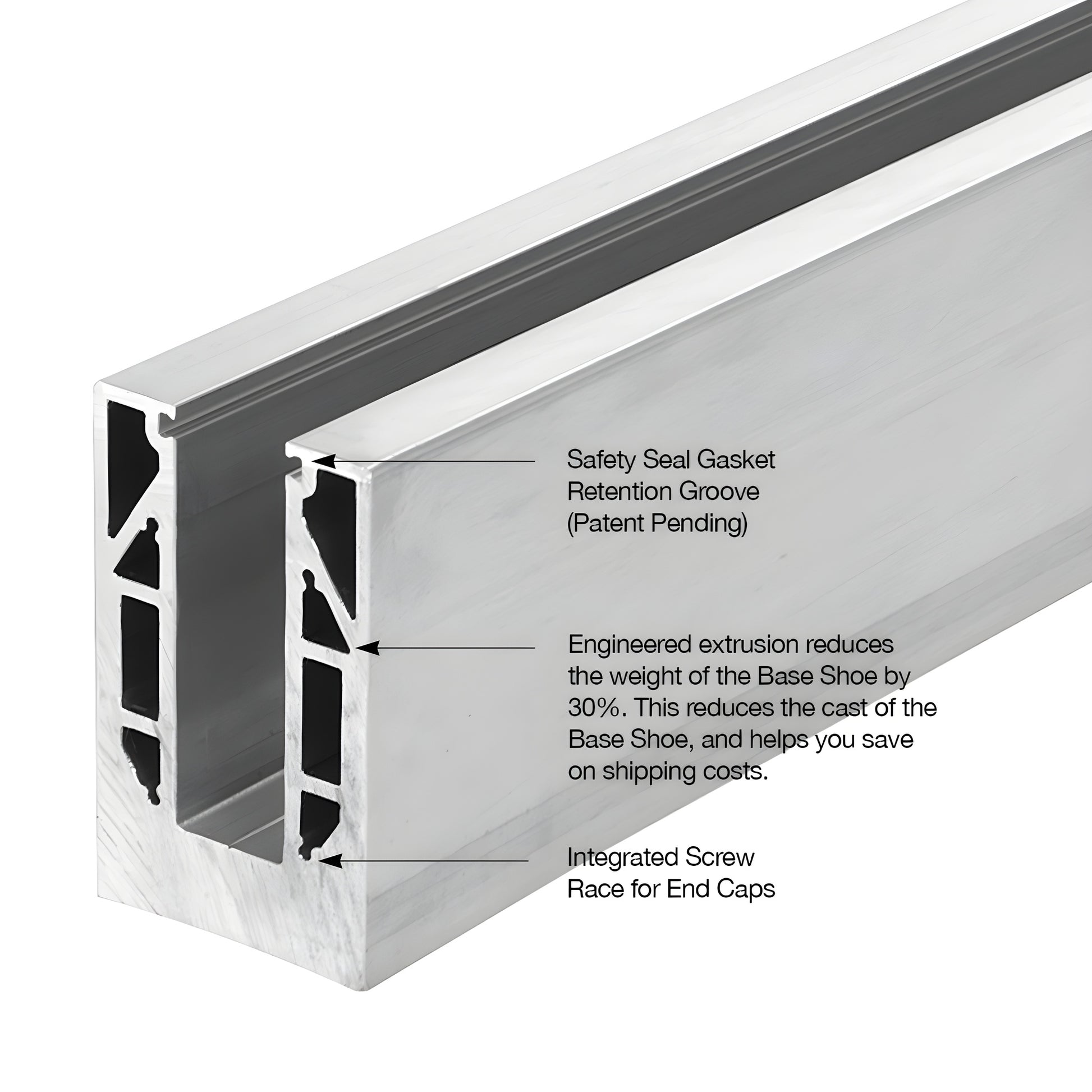

The CRL 8B Series Square Base Shoe is engineered for glass railing and windscreen applications, offering a 30% lighter design compared to CRL's traditional B7S Series, which enhances cost-effectiveness and reduces shipping expenses.
Compatible with 3/4" (19 mm) monolithic tempered glass, this base shoe integrates seamlessly with CRL's patented TAPER-LOC® System and can be easily cut to size with a chop saw.
Meeting NBC load requirements when installed per ICC-3269, the product ensures safety and reliability.
Note: Direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe for optimal results.
Contact CRL Customer Service for precise shipping weight details if needed.
Compatible with 3/4" (19 mm) monolithic tempered glass, this base shoe integrates seamlessly with CRL's patented TAPER-LOC® System and can be easily cut to size with a chop saw.
Meeting NBC load requirements when installed per ICC-3269, the product ensures safety and reliability.
Note: Direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe for optimal results.
Contact CRL Customer Service for precise shipping weight details if needed.
