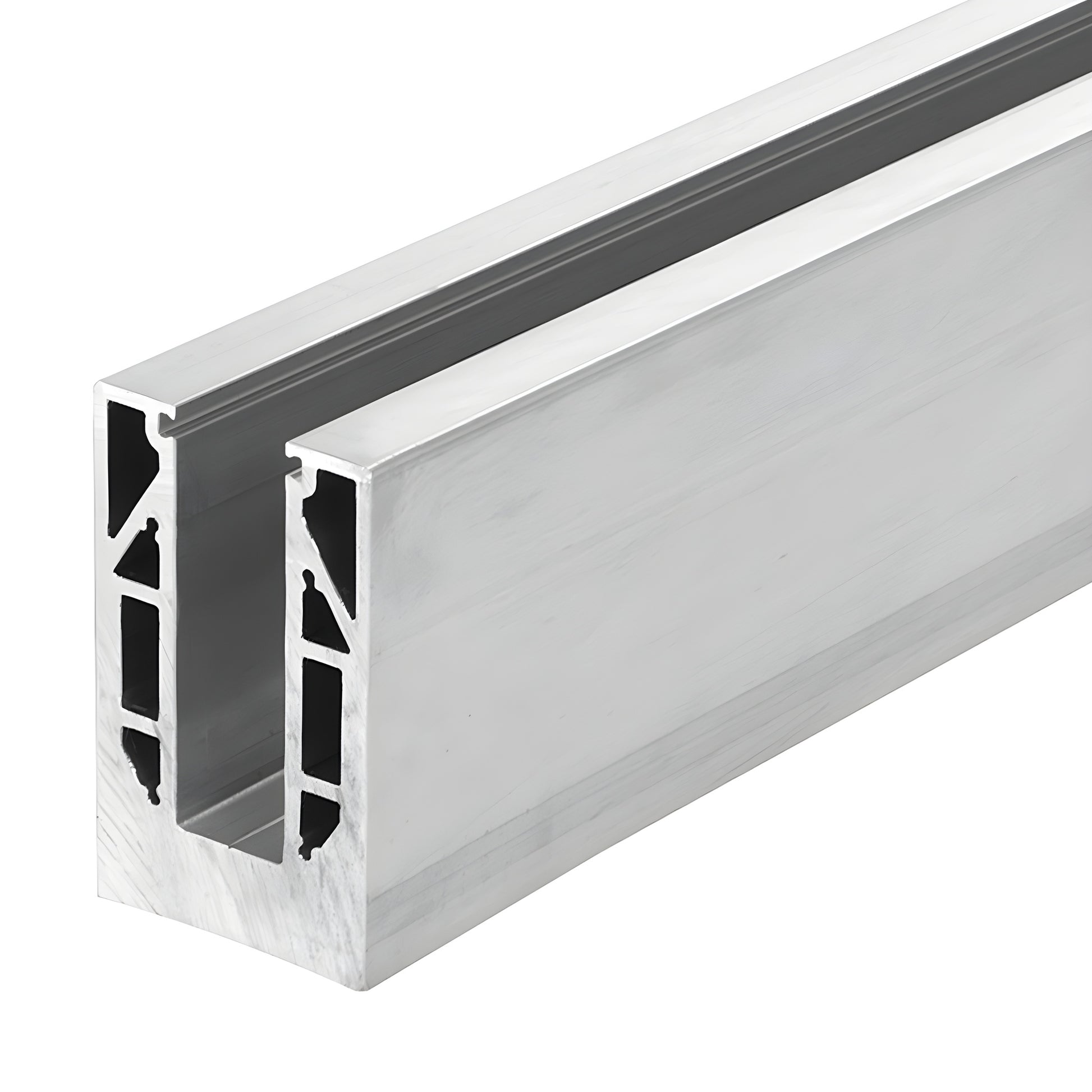

CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 5/8" Glass
CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 5/8" Glass
Regular price
$1,161.50 CAD
Regular price
Sale price
$1,161.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B58D
Shipping Weight: 63.259 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 63.259 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

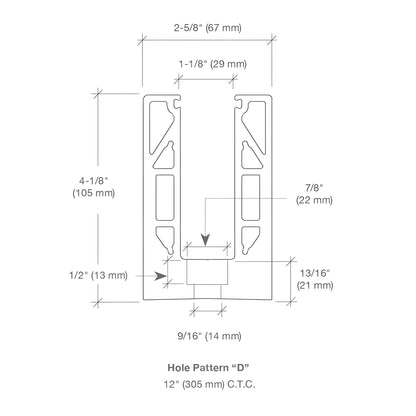

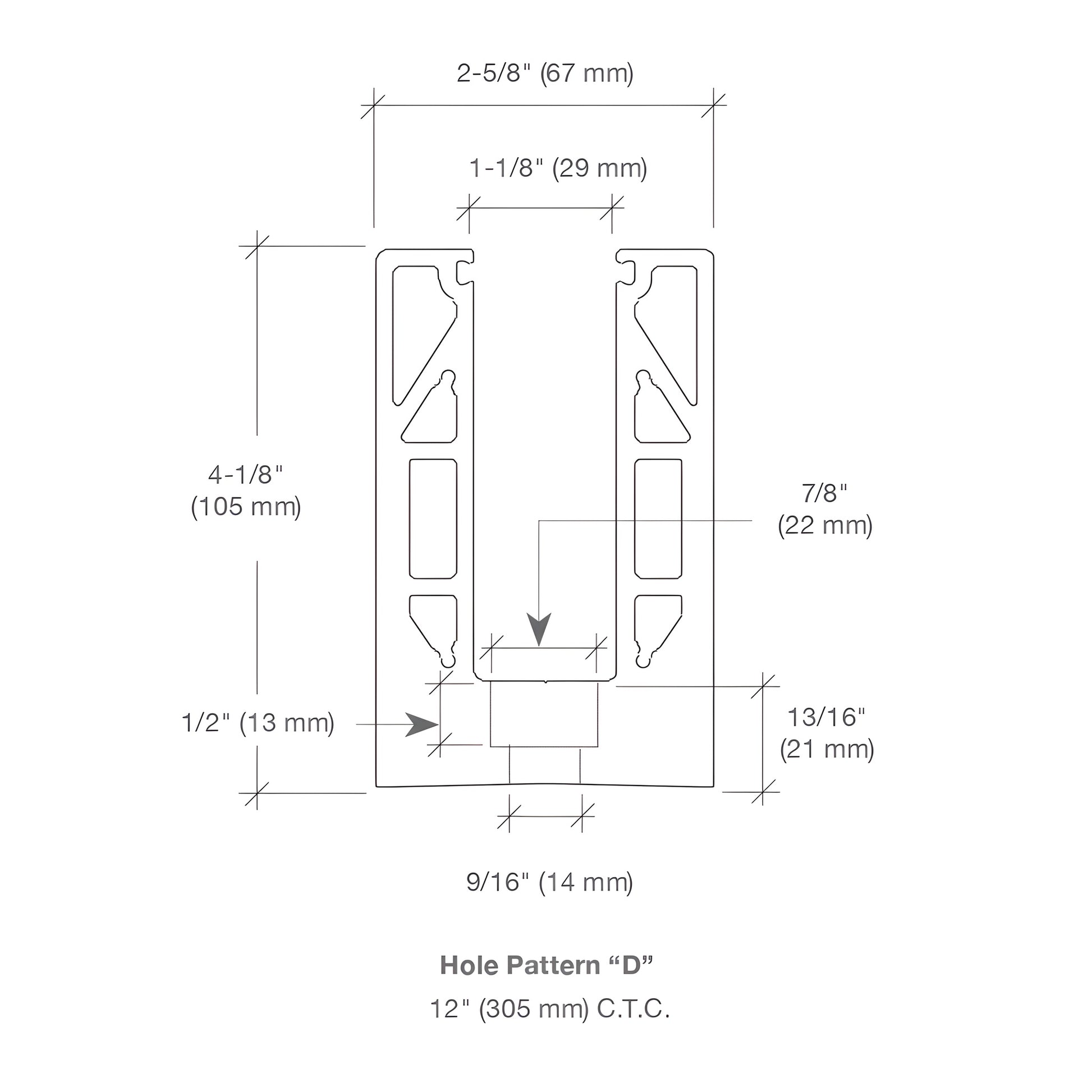

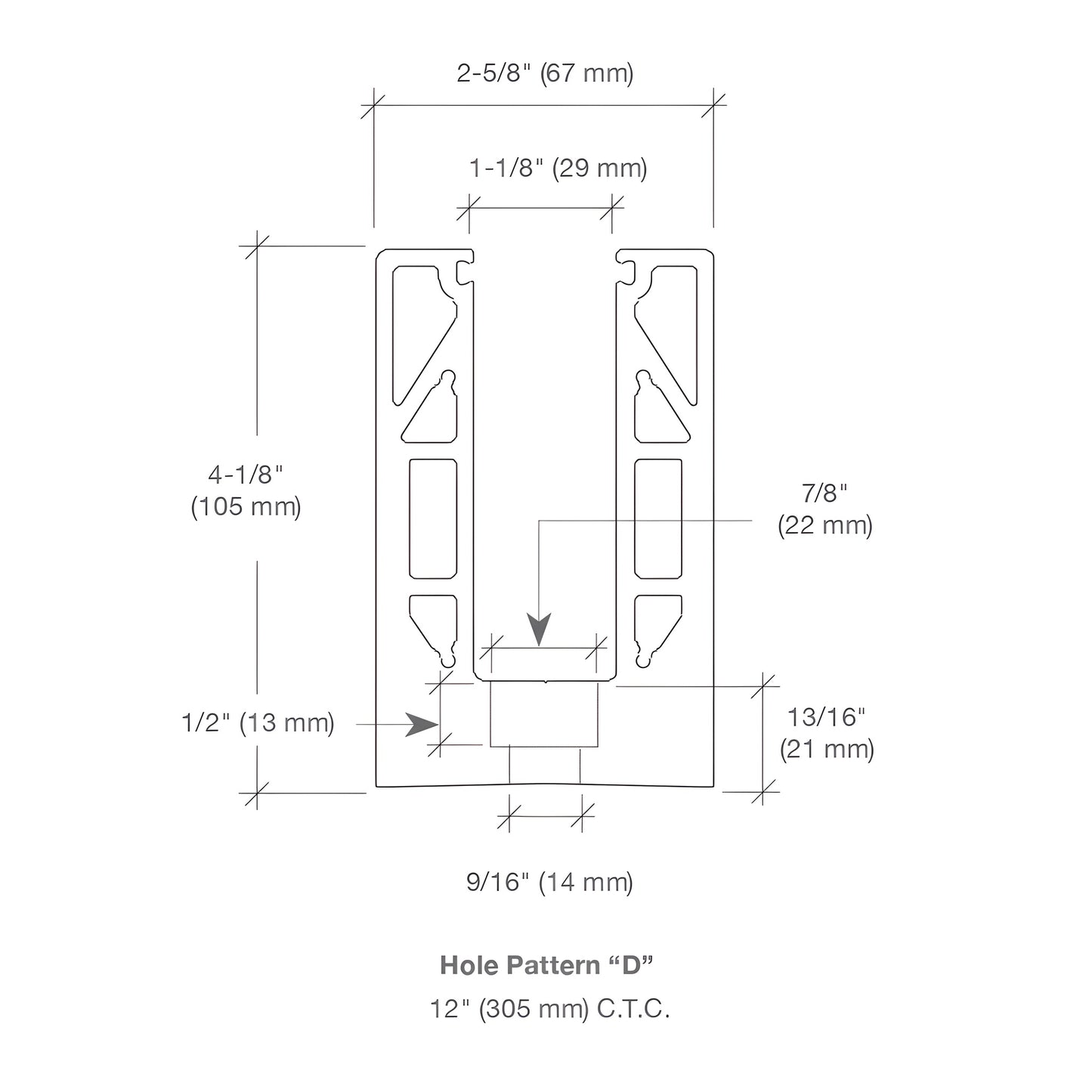

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 5/8 in. (16 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Width 2-5/8 in. | (67 mm) |
Overview

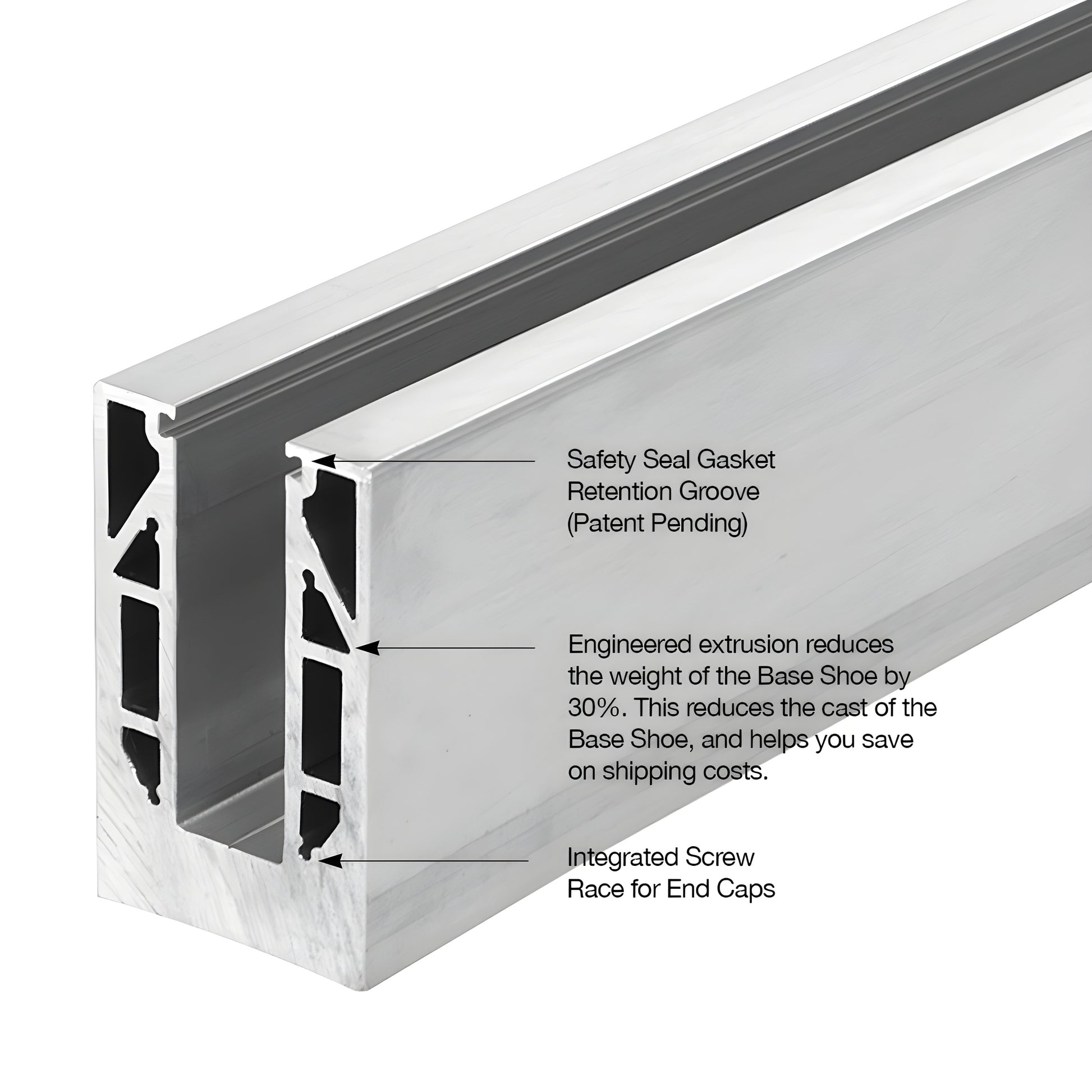

The CRL 8B Series Square Base Shoe is an innovative solution for glass railing and windscreen applications, offering a 30% lighter alternative to the traditional CRL B6N Series.
Designed to accommodate 5/8" (15 mm) monolithic tempered glass, this base shoe can be easily cut to length using a chop saw, making installation quick and efficient.
When installed in accordance with ICC-3269, CRL Glass Railing Systems meet NBC load requirements, ensuring safety and reliability.
With its competitive pricing and reduced shipping costs, the CRL 8B Series is both environmentally friendly and cost-effective.
For precise shipping weights or additional inquiries, please contact CRL Customer Service prior to placing your order.
Designed to accommodate 5/8" (15 mm) monolithic tempered glass, this base shoe can be easily cut to length using a chop saw, making installation quick and efficient.
When installed in accordance with ICC-3269, CRL Glass Railing Systems meet NBC load requirements, ensuring safety and reliability.
With its competitive pricing and reduced shipping costs, the CRL 8B Series is both environmentally friendly and cost-effective.
For precise shipping weights or additional inquiries, please contact CRL Customer Service prior to placing your order.
