CRL 8B Series Mill Aluminum 120" Square Base Shoe Fascia Mount Drilled for 3/4" Glass
CRL 8B Series Mill Aluminum 120" Square Base Shoe Fascia Mount Drilled for 3/4" Glass
Regular price
$1,210.14 CAD
Regular price
Sale price
$1,210.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B34F
Shipping Weight: 64.408 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 64.408 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

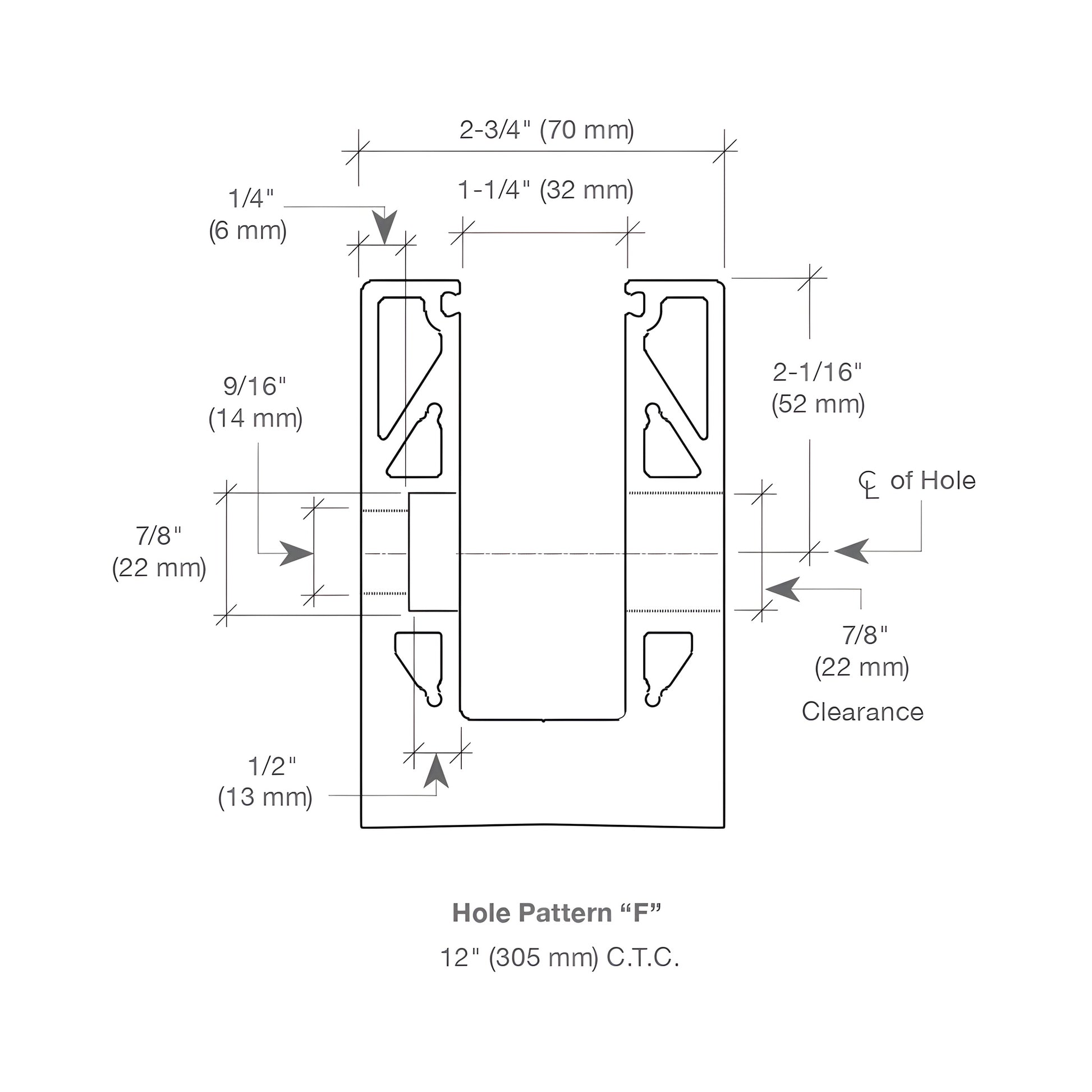

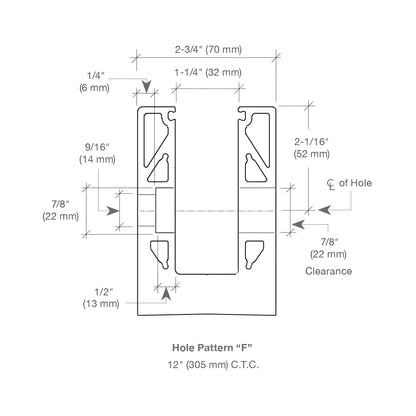

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glass | Included No |
| Glazing Thickness | 3/4 in. (19 mm) |
| Glazing | Type Monolithic |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
Overview

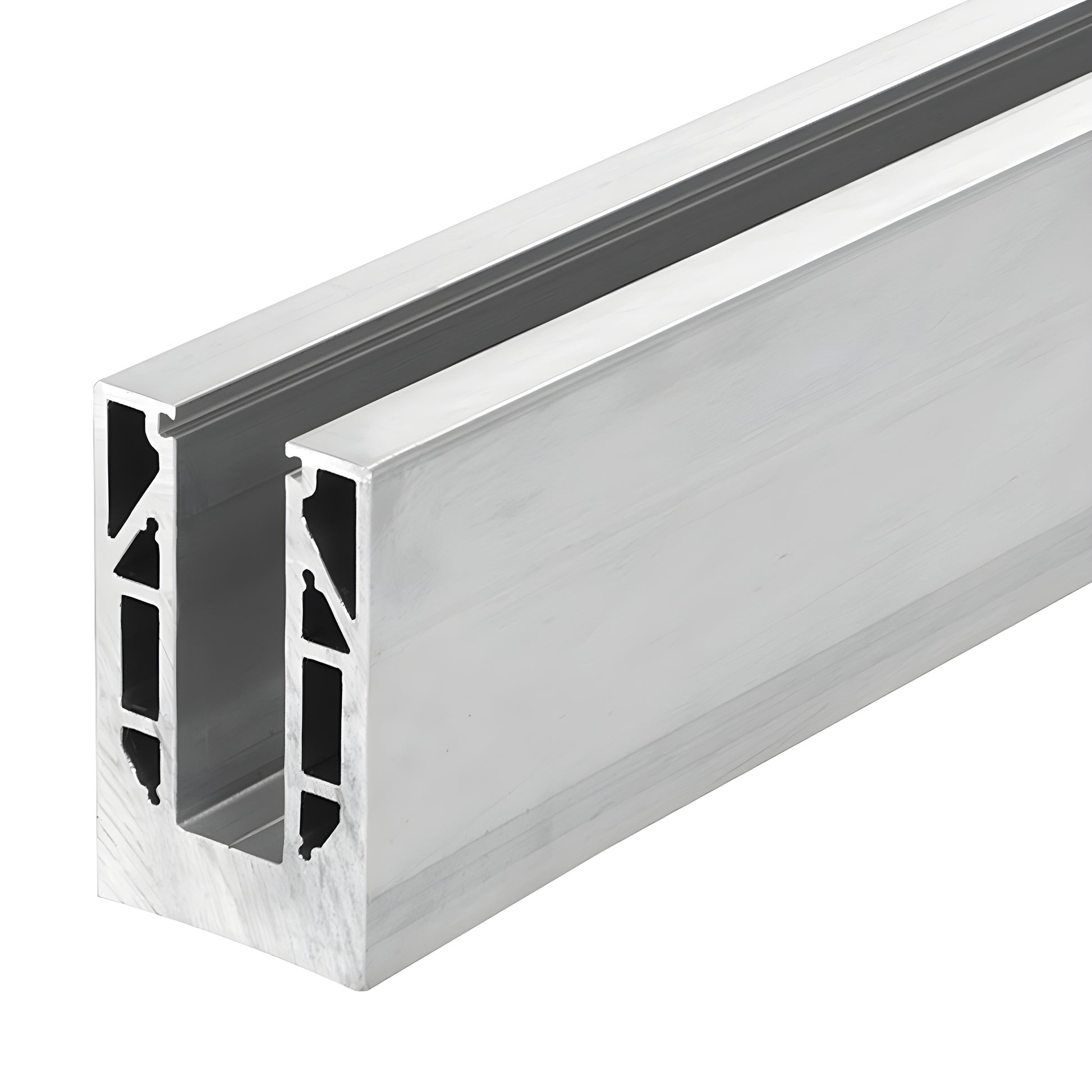

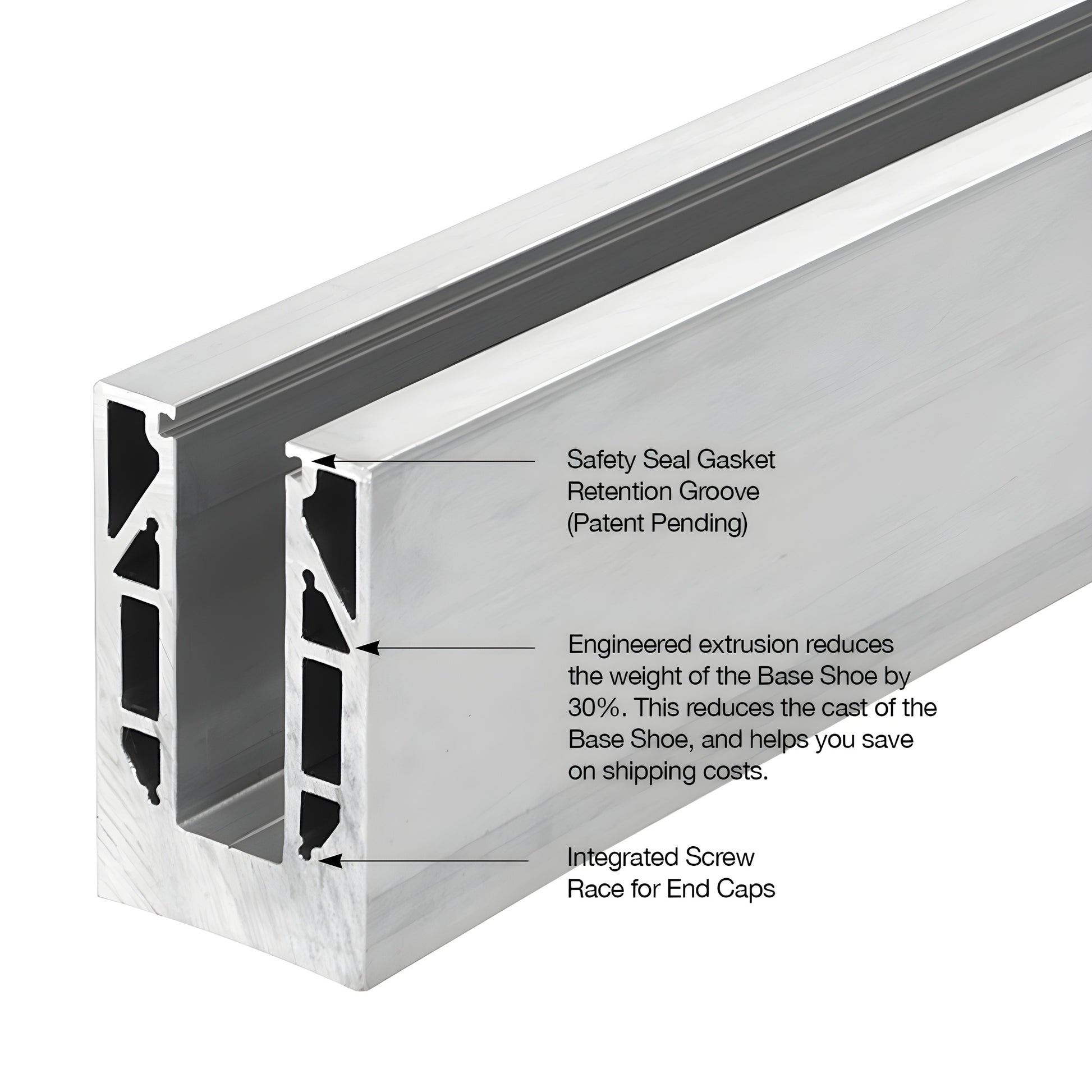

The CRL 8B Series Square Base Shoe is a lightweight alternative to the traditional B7S Series, offering a 30% reduction in weight.
Ideal for glass railing and windscreen applications, it is designed for use with 3/4" (19 mm) monolithic tempered glass undrilled base shoes.
This product can be easily cut to length with a chop saw, making it both user-friendly and cost-effective.
Meeting NBC load requirements when installed per ICC-3269, the 8B Series is compatible with CRL's TAPER-LOC® System, providing a reliable and sustainable solution for your glass railing needs.
Note: Direct powder coating is not recommended; instead, opt for powder-coated cladding over the base shoe.
For shipping inquiries, contact CRL Customer Service for accurate weight and cost details.
Ideal for glass railing and windscreen applications, it is designed for use with 3/4" (19 mm) monolithic tempered glass undrilled base shoes.
This product can be easily cut to length with a chop saw, making it both user-friendly and cost-effective.
Meeting NBC load requirements when installed per ICC-3269, the 8B Series is compatible with CRL's TAPER-LOC® System, providing a reliable and sustainable solution for your glass railing needs.
Note: Direct powder coating is not recommended; instead, opt for powder-coated cladding over the base shoe.
For shipping inquiries, contact CRL Customer Service for accurate weight and cost details.
