CRL 8B Series Mill Aluminum 120" Square Base Shoe Fascia Mount Drilled for 5/8" Glass
CRL 8B Series Mill Aluminum 120" Square Base Shoe Fascia Mount Drilled for 5/8" Glass
Regular price
$1,166.62 CAD
Regular price
Sale price
$1,166.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B58F
Shipping Weight: 63.259 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 63.259 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

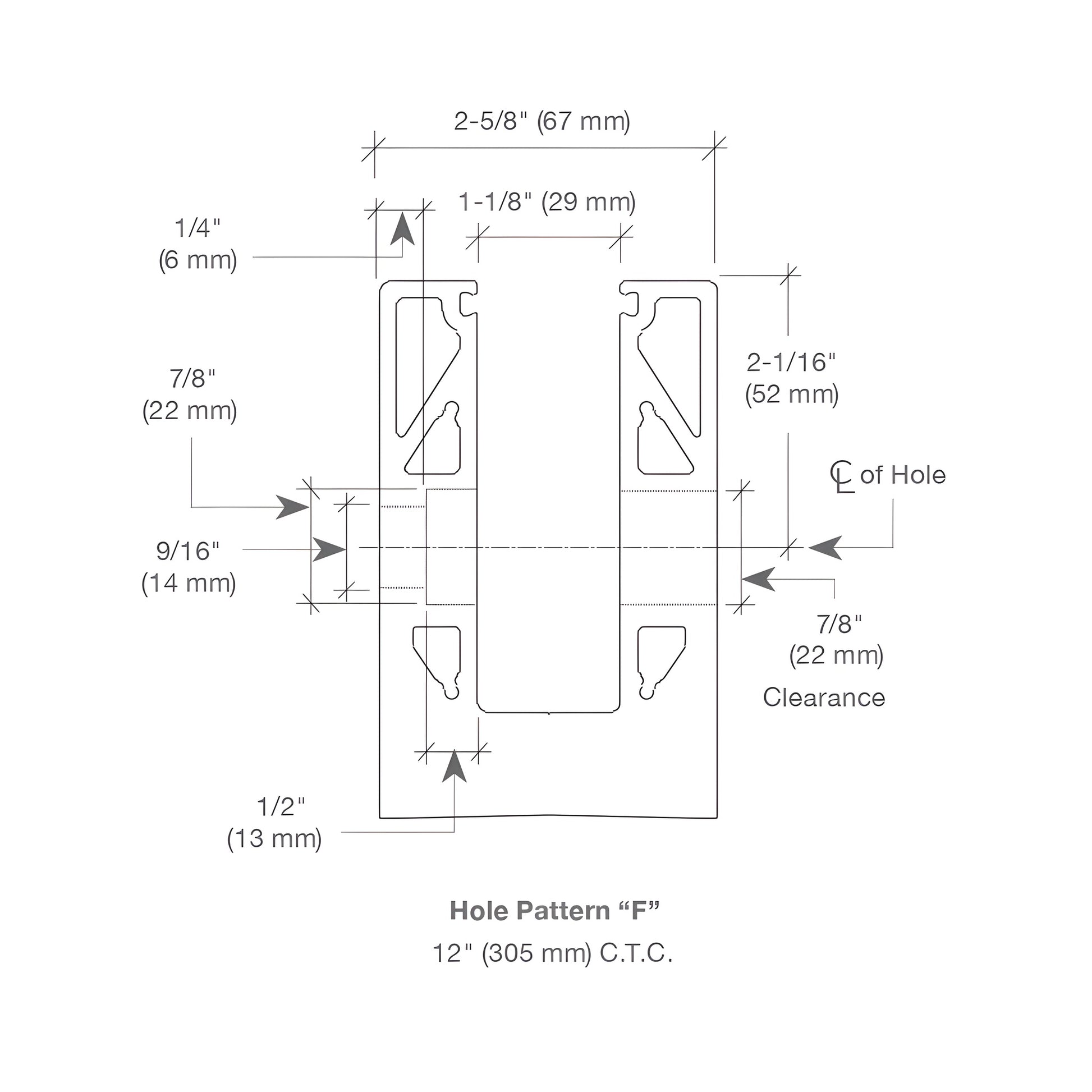

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glass | Included No |
| Glazing Thickness | 5/8 in. (16 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Width 2-5/8 in. | (67 mm) |
Overview

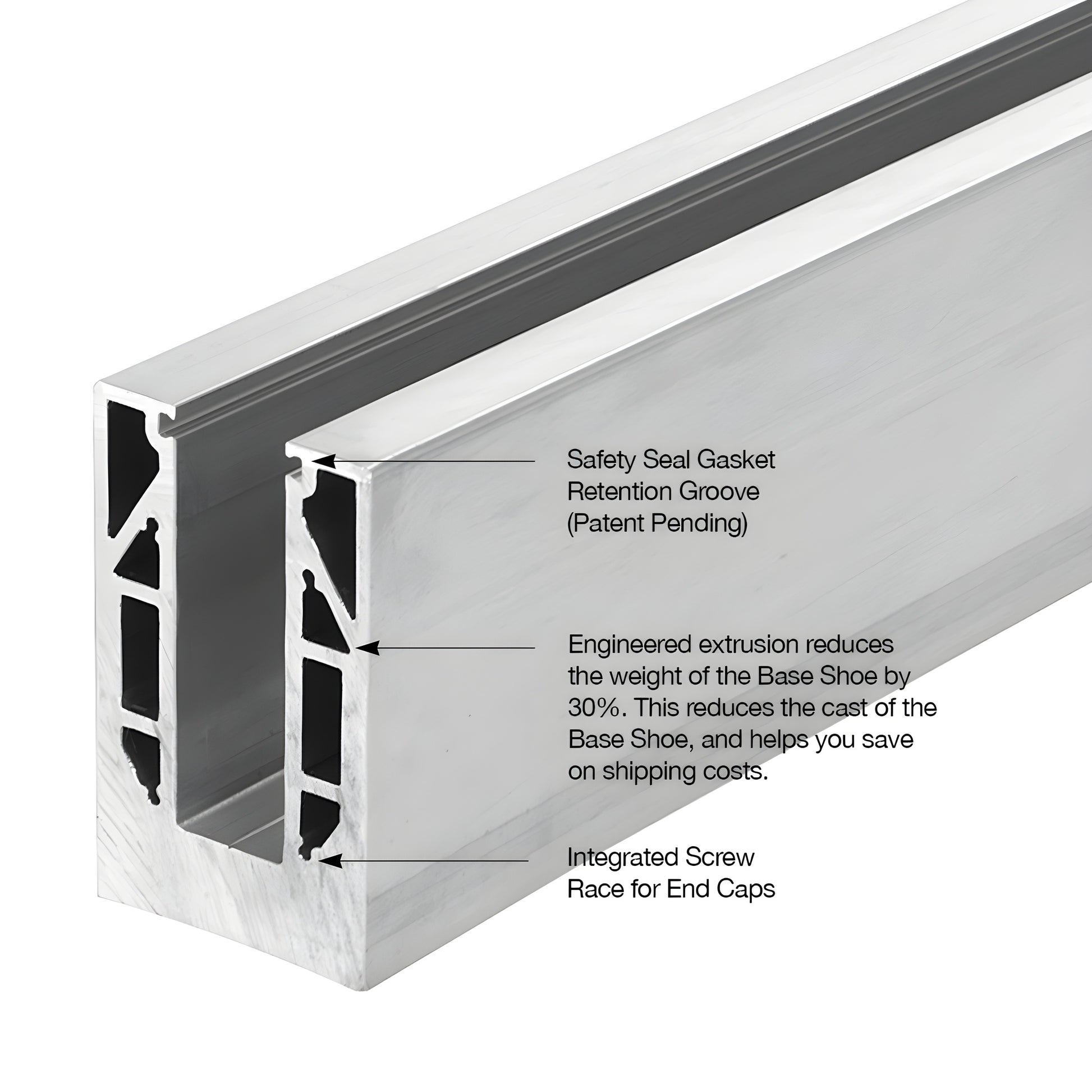

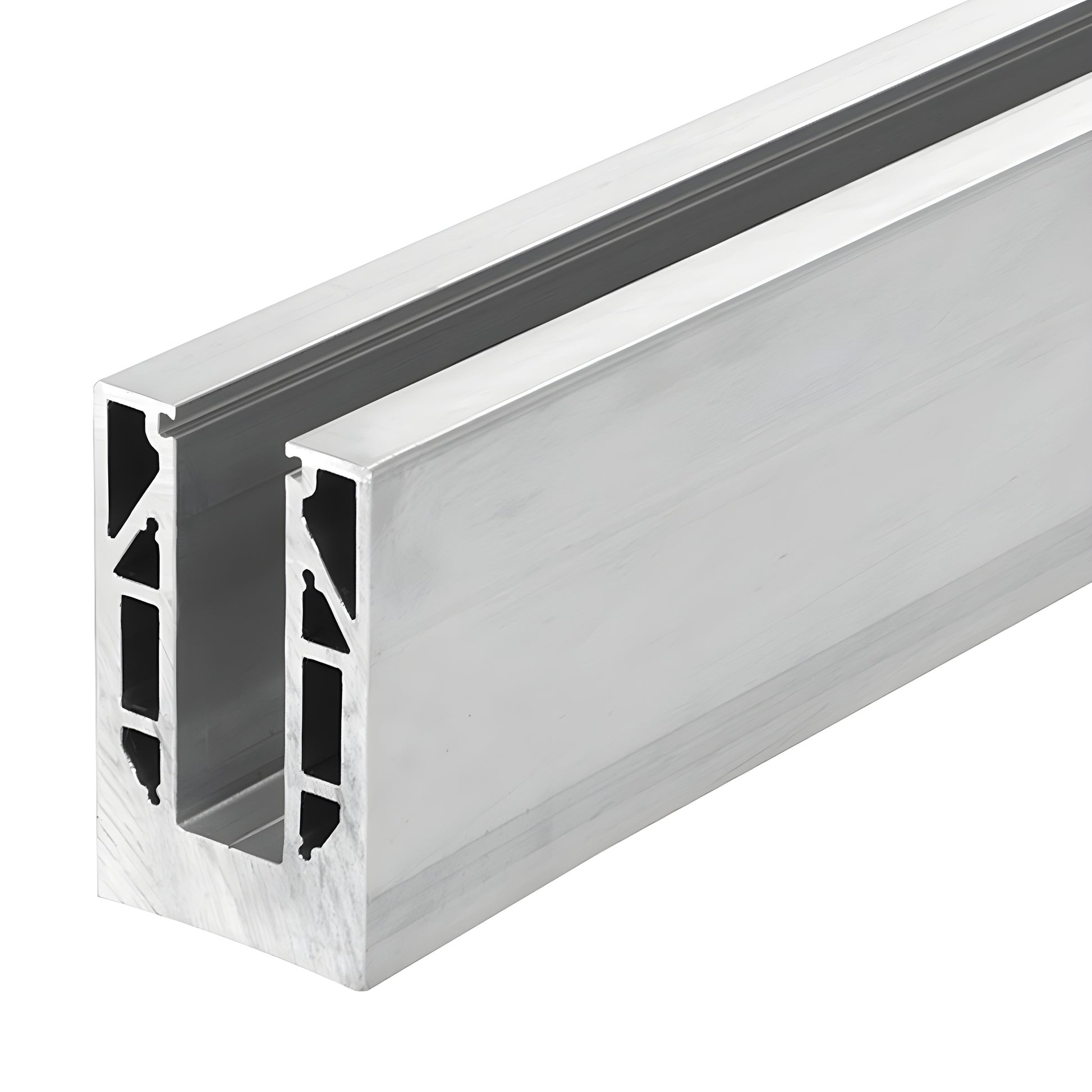

The CRL 8B Series Square Base Shoe is a cutting-edge product designed for glass railing and windscreen applications.
At 30% lighter than the traditional B6N Series, it offers cost-effectiveness, eco-friendliness, and reduced shipping expenses.
Compatible with 5/8" (15 mm) monolithic tempered glass, it can be easily cut to size using a chop saw with a 10" (254 mm) aluminum-compatible blade.
This innovative base shoe meets NBC load requirements when installed according to ICC-3269 standards and is perfectly suited for CRL's patented TAPER-LOC® System.
For precise shipping weight details and further inquiries, contact CRL Customer Service.
At 30% lighter than the traditional B6N Series, it offers cost-effectiveness, eco-friendliness, and reduced shipping expenses.
Compatible with 5/8" (15 mm) monolithic tempered glass, it can be easily cut to size using a chop saw with a 10" (254 mm) aluminum-compatible blade.
This innovative base shoe meets NBC load requirements when installed according to ICC-3269 standards and is perfectly suited for CRL's patented TAPER-LOC® System.
For precise shipping weight details and further inquiries, contact CRL Customer Service.
Specifications
Quote Request Forms
Engineering & Test Reports
