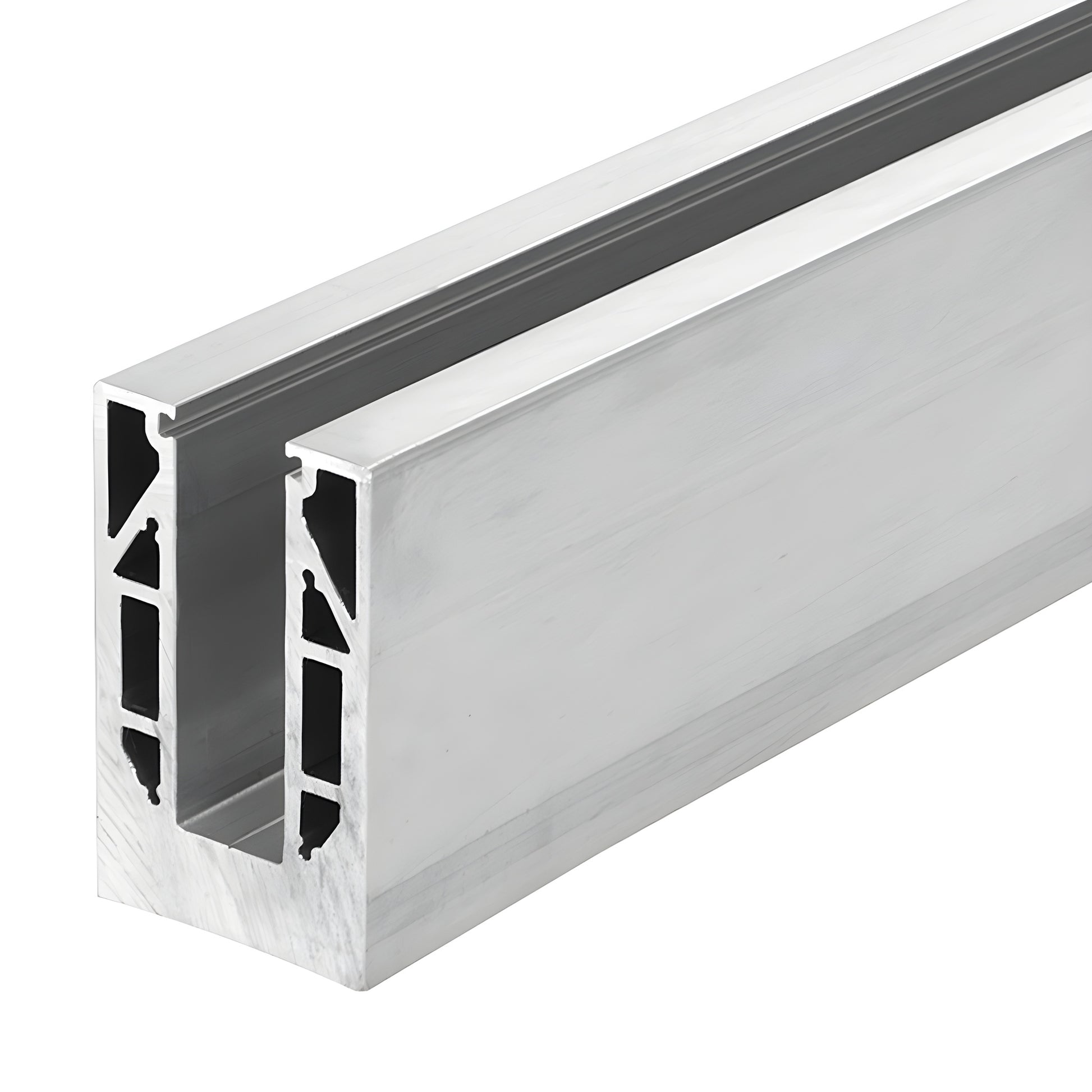

CRL 8B Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass
CRL 8B Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass
Regular price
$2,182.91 CAD
Regular price
Sale price
$2,182.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B20D
Shipping Weight: 124.217 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 124.217 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

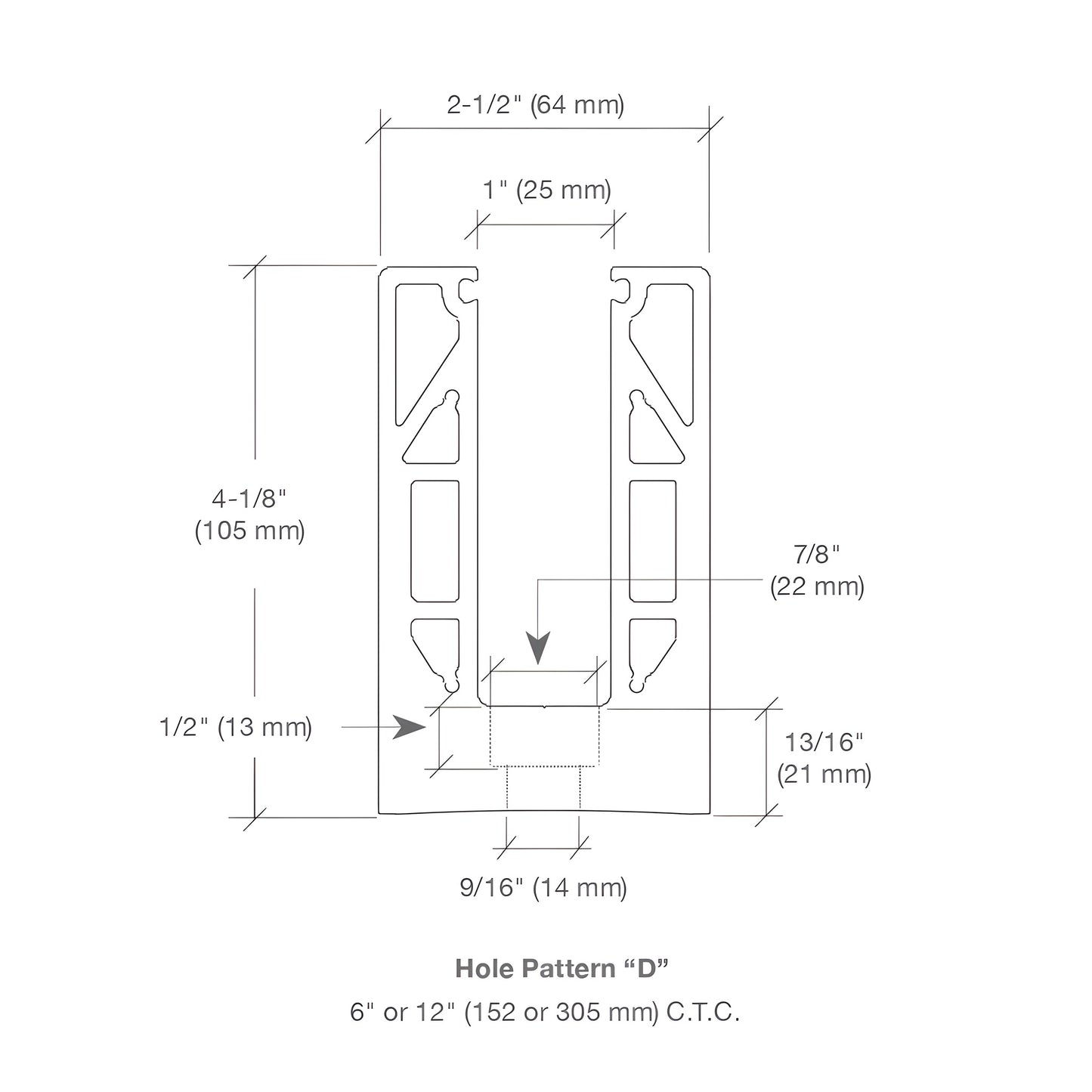

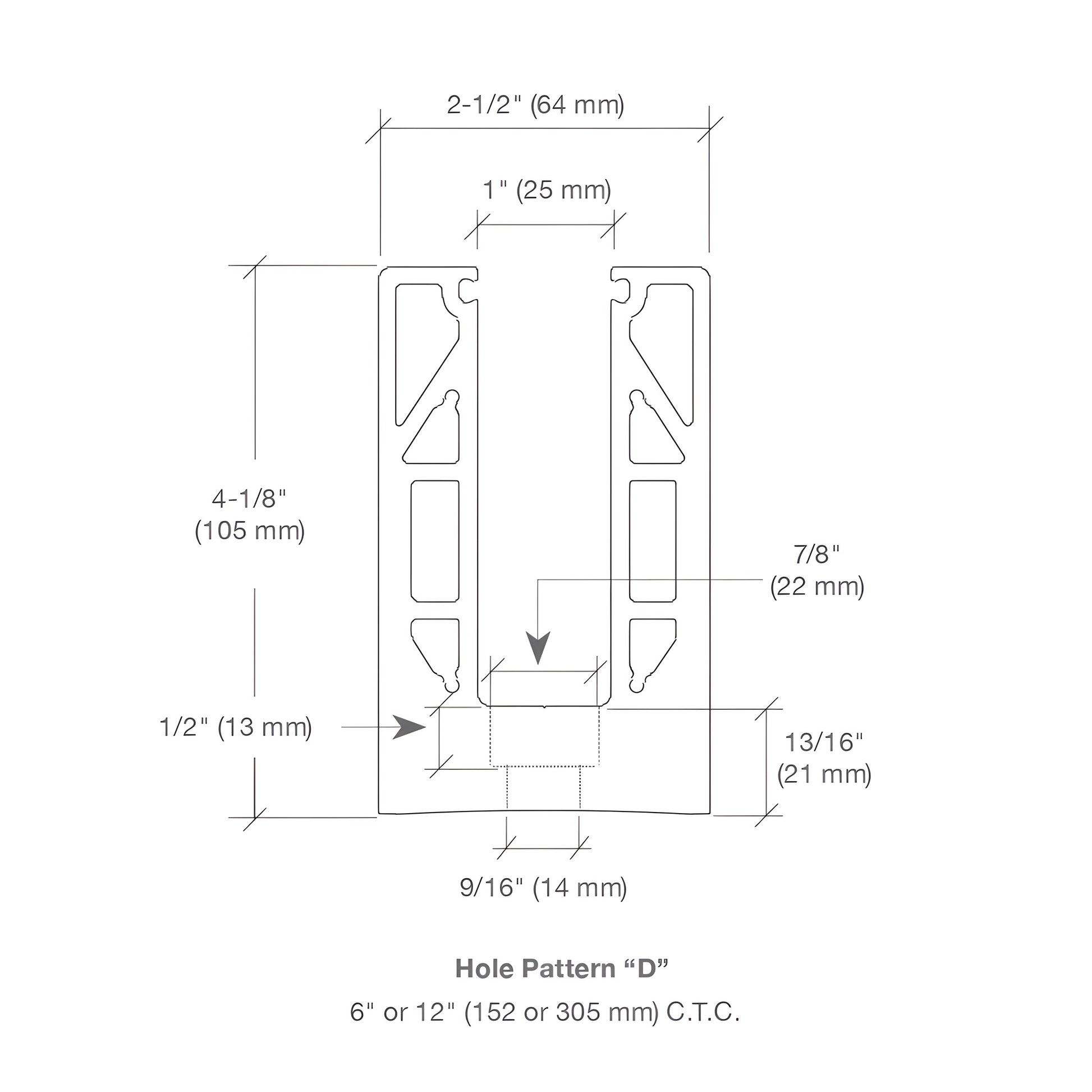

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/2 in. (13 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
| Width 2-1/2 in. | (64 mm) |
Overview

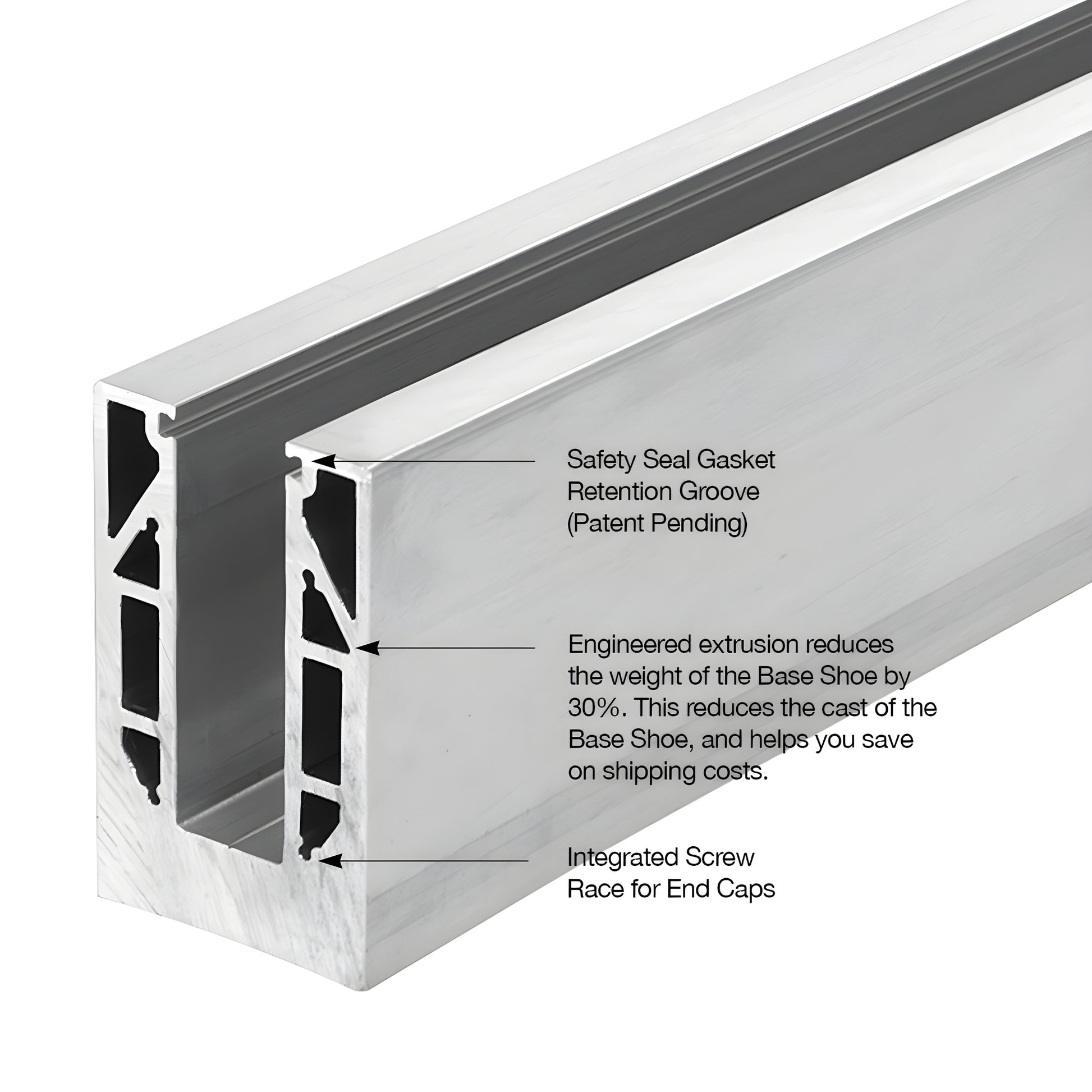

The CRL 8B Series Square Base Shoe is an eco-friendly, lightweight alternative to the traditional B5S Series, boasting a 30% reduction in weight.
This innovative design is specifically engineered for guard rail and windscreen applications, accommodating 1/2" (12 mm) monolithic tempered glass.
Available in 10' and 20' stock lengths, both drilled and undrilled, this product is easily customizable with a chop saw.
Additionally, it meets NBC load requirements when installed according to ICC-3269, ensuring both safety and reliability.
This innovative design is specifically engineered for guard rail and windscreen applications, accommodating 1/2" (12 mm) monolithic tempered glass.
Available in 10' and 20' stock lengths, both drilled and undrilled, this product is easily customizable with a chop saw.
Additionally, it meets NBC load requirements when installed according to ICC-3269, ensuring both safety and reliability.
