CRL 8B Series Mill Aluminum 240" Square Base Shoe Fascia Mount Drilled for 1/2" Glass
CRL 8B Series Mill Aluminum 240" Square Base Shoe Fascia Mount Drilled for 1/2" Glass
Regular price
$2,209.78 CAD
Regular price
Sale price
$2,209.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B20F
Shipping Weight: 124.217 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 124.217 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

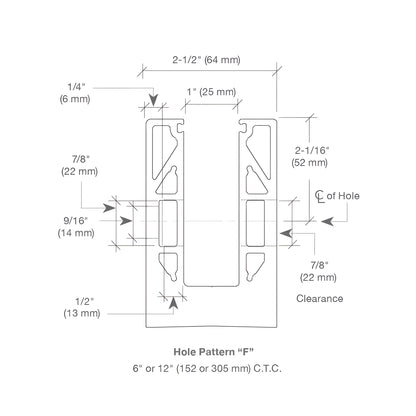

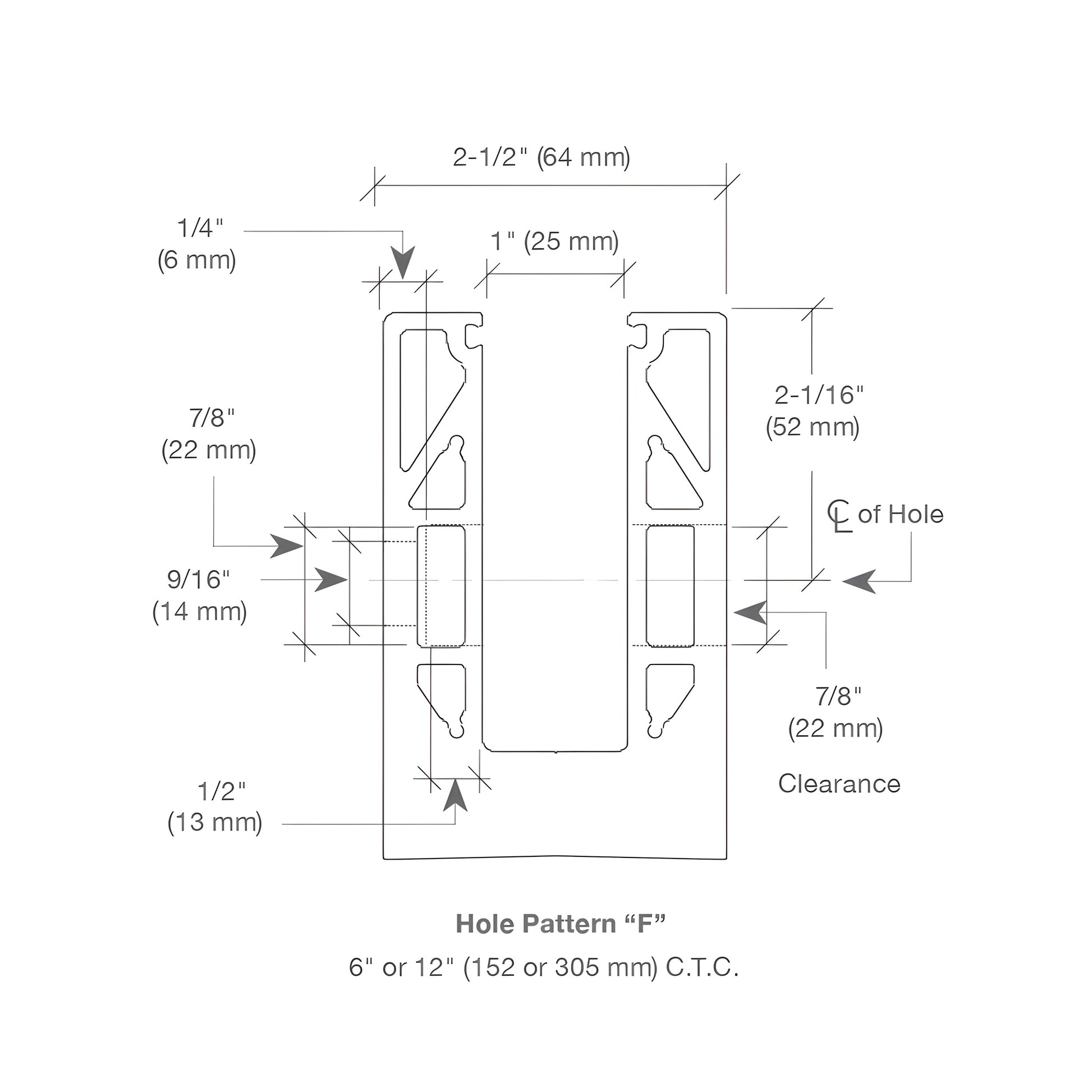

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/2 in. (13 mm) |
| Glazing | Type Monolithic |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
| Profile | Drilled |
Overview

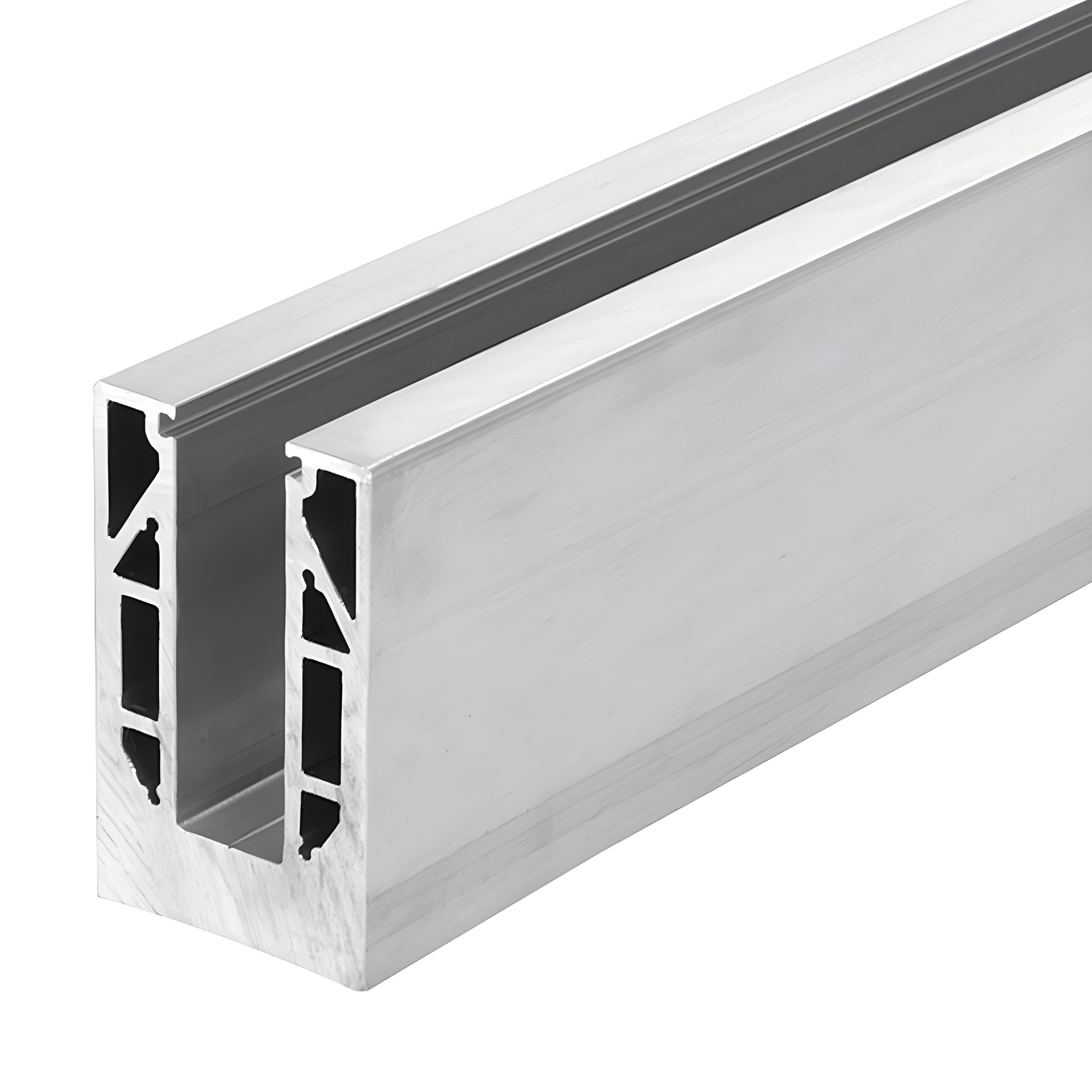

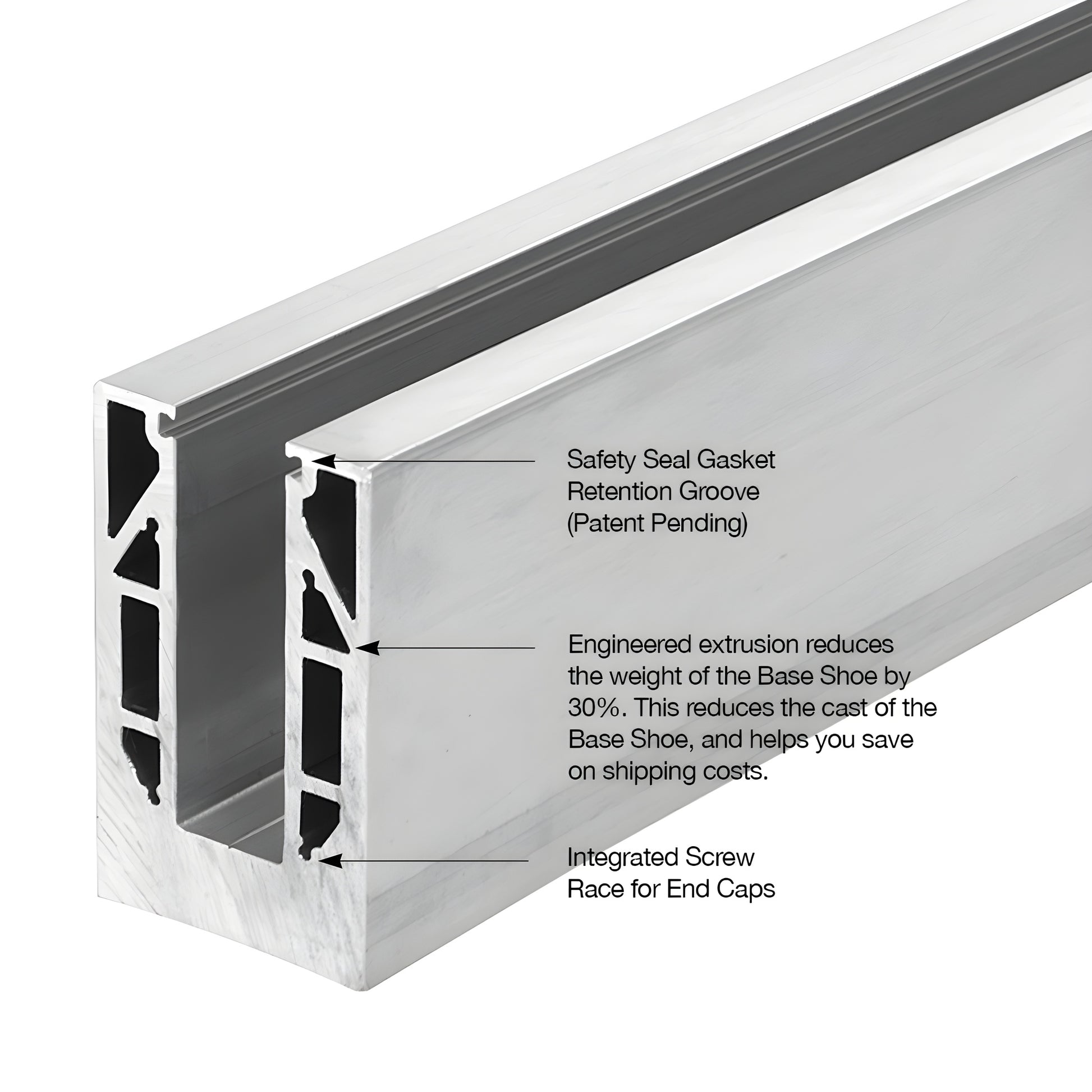

The CRL 8B Series Square Base Shoe is a cutting-edge, lightweight solution, 30% lighter than the traditional CRL B5S Series Shoe, making it an eco-friendly and cost-effective choice.
Specially designed for guard rail and windscreen applications, it accommodates 1/2" (12 mm) monolithic tempered glass and is available in 10' and 20' stock lengths, both drilled and undrilled.
This product seamlessly integrates with CRL's patented TAPER-LOC® System and can be conveniently cut to size using a chop saw with a minimum 10" (254 mm) saw blade.
Meeting NBC load requirements when installed according to ICC-3269, the 8B Series promises performance and durability, all while offering reduced shipping costs.
Specially designed for guard rail and windscreen applications, it accommodates 1/2" (12 mm) monolithic tempered glass and is available in 10' and 20' stock lengths, both drilled and undrilled.
This product seamlessly integrates with CRL's patented TAPER-LOC® System and can be conveniently cut to size using a chop saw with a minimum 10" (254 mm) saw blade.
Meeting NBC load requirements when installed according to ICC-3269, the 8B Series promises performance and durability, all while offering reduced shipping costs.
