CRL 9BL Series Mill 118-1/8" Square Base Shoe Drilled for 11/16" Glass
CRL 9BL Series Mill 118-1/8" Square Base Shoe Drilled for 11/16" Glass
Regular price
$1,275.42 CAD
Regular price
Sale price
$1,275.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 9BL68D
Shipping Weight: 69.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 69.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

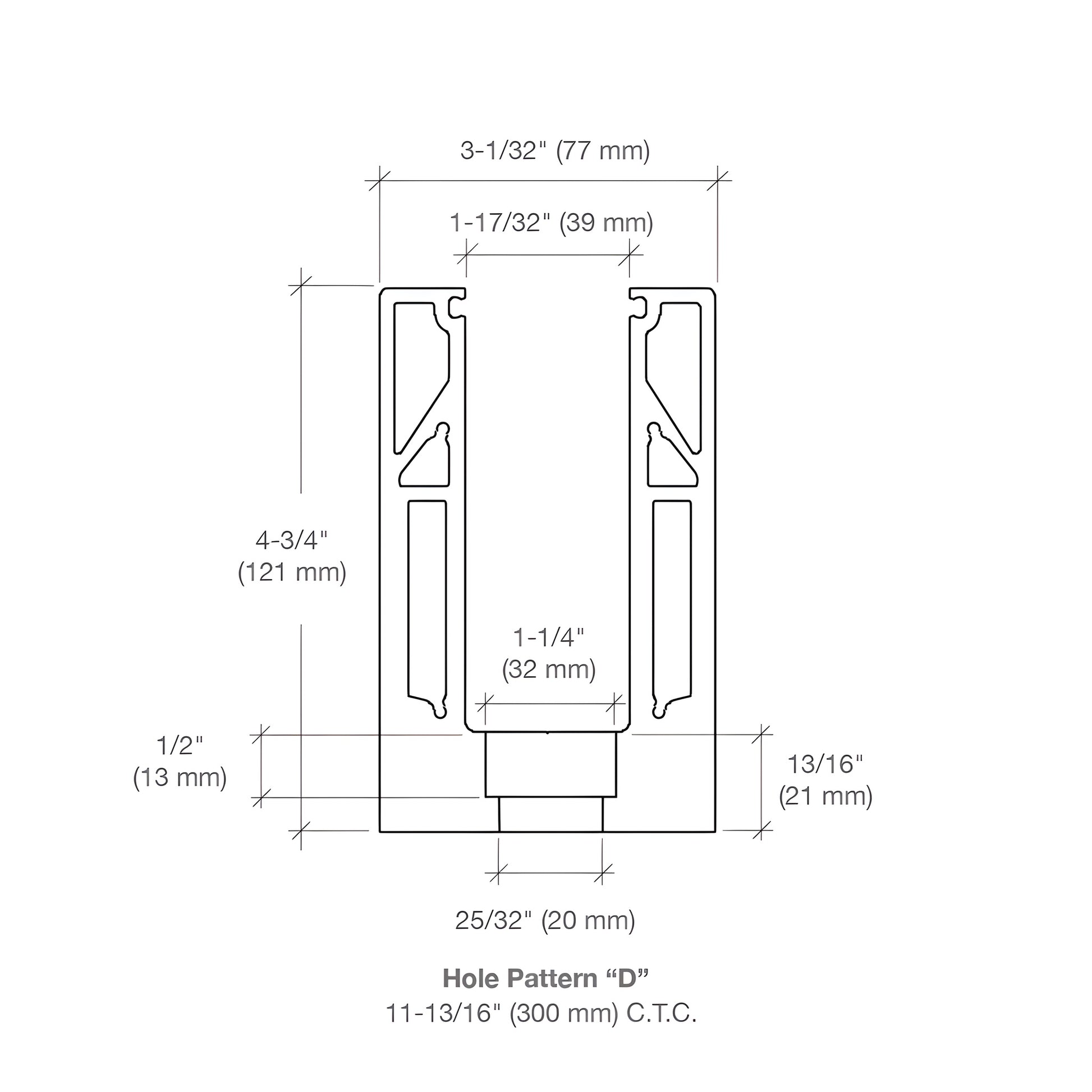

| Drilling Center To Center 11-13/16 in. | (300 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 11/16 in. (17 mm) |
| Glazing | Type Laminated |
| Height 4-3/4 in. | (121 mm) |
| Length 118-1/8 in. | (3000 mm) |
| Material | Aluminum |
| Width 3-1/32 in. | (77 mm) |
Overview
The CRL 9BL68D Series Square Base Shoe is an innovative solution for 11/16" (17.52 mm) laminated tempered glass, specifically designed to align with the 2015 IBC Code Changes.

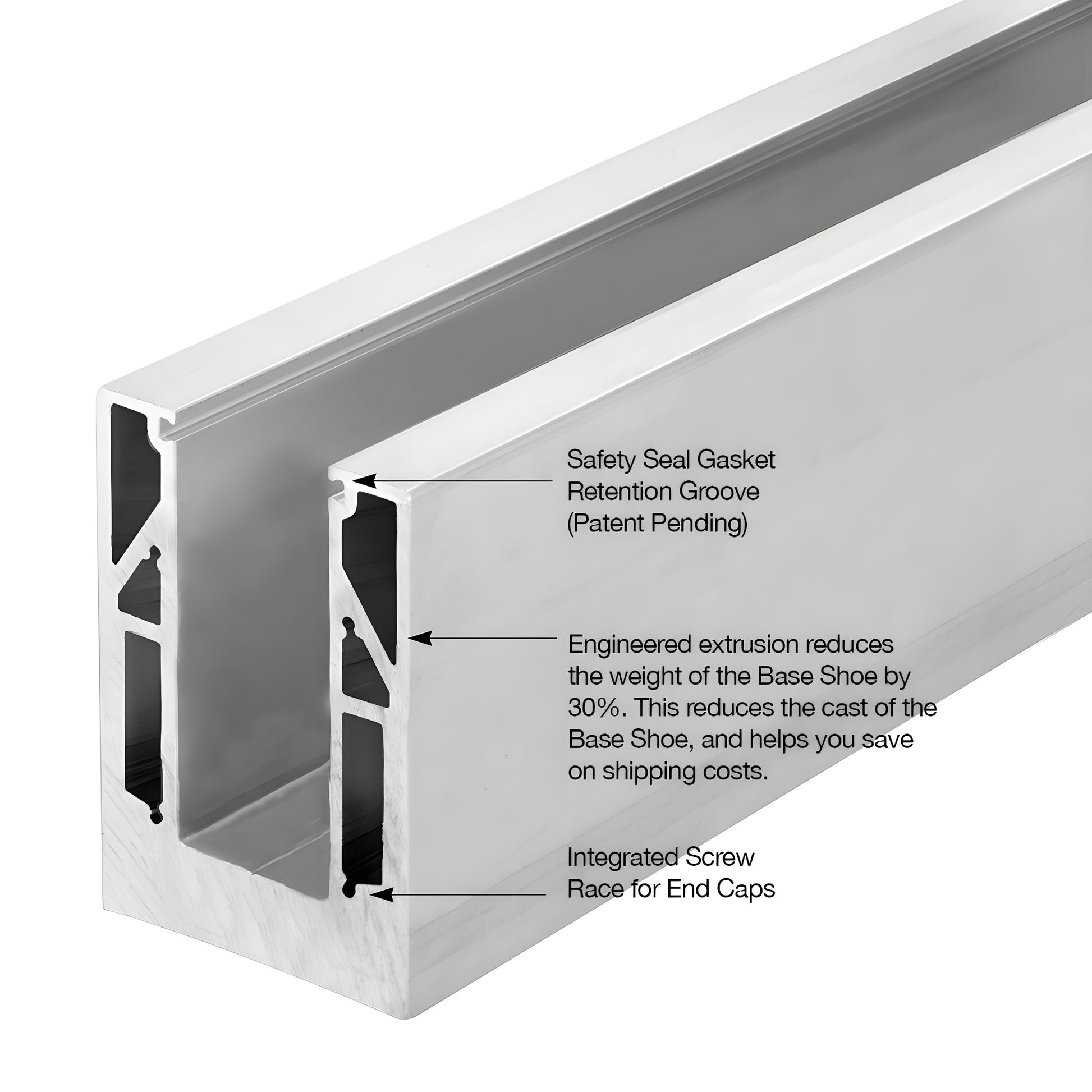

This lightweight base shoe, 30% lighter than the industry standard, not only provides significant savings on shipping costs but also meets and exceeds a 200 lb load with a 4x safety factor.
Engineered for durability and compatibility, it works seamlessly with CRL's patented TAPER-LOC® System and meets NBC load requirements when installed according to ICC-3842 guidelines.
Please consult with your glass fabricator before wet setting laminated tempered glass, and note that powder coating directly on the base shoe is not recommended.
This lightweight base shoe, 30% lighter than the industry standard, not only provides significant savings on shipping costs but also meets and exceeds a 200 lb load with a 4x safety factor.
Engineered for durability and compatibility, it works seamlessly with CRL's patented TAPER-LOC® System and meets NBC load requirements when installed according to ICC-3842 guidelines.
Please consult with your glass fabricator before wet setting laminated tempered glass, and note that powder coating directly on the base shoe is not recommended.
Specifications
Quote Request Forms
CAD Drawings - pdf
CAD Drawings - dwg
