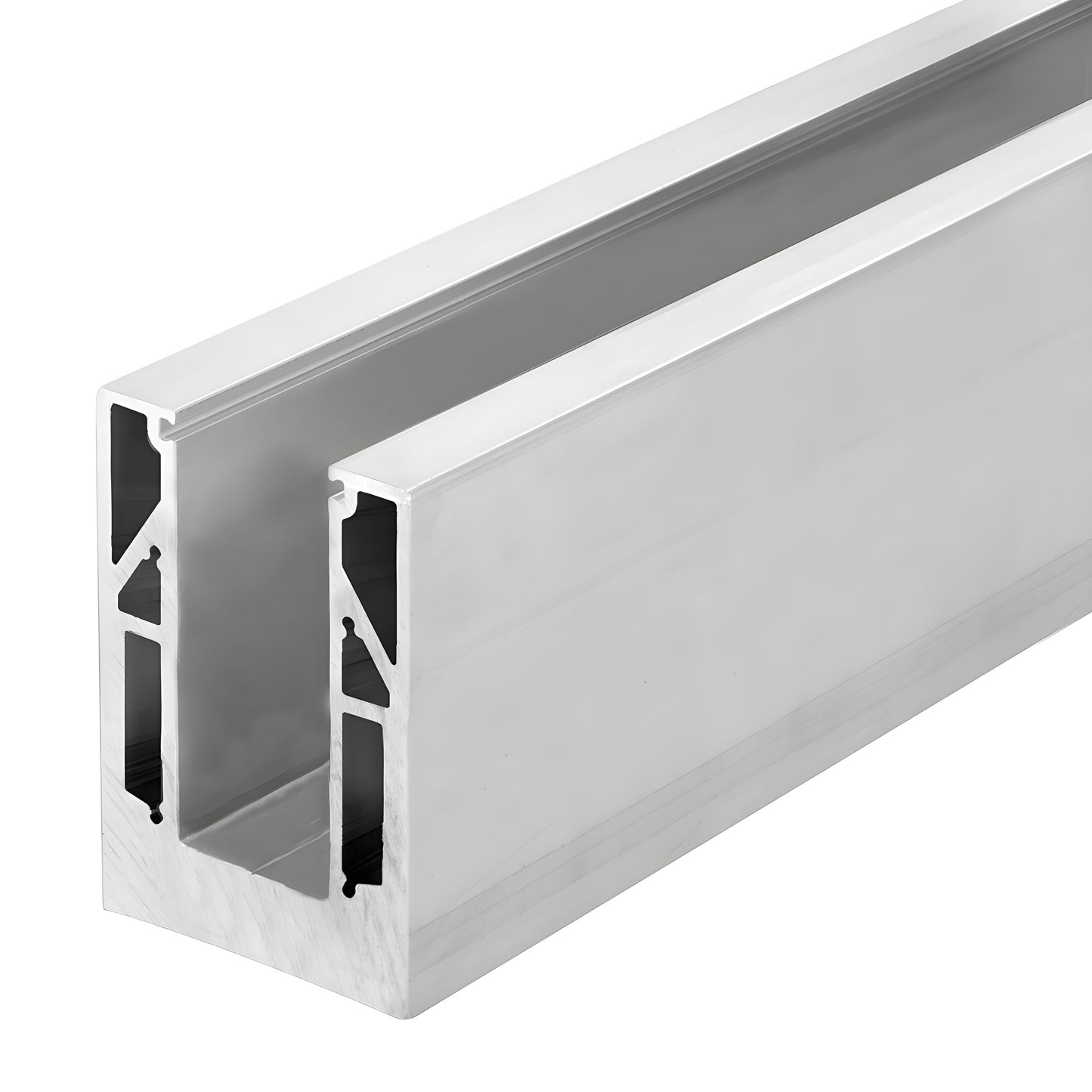

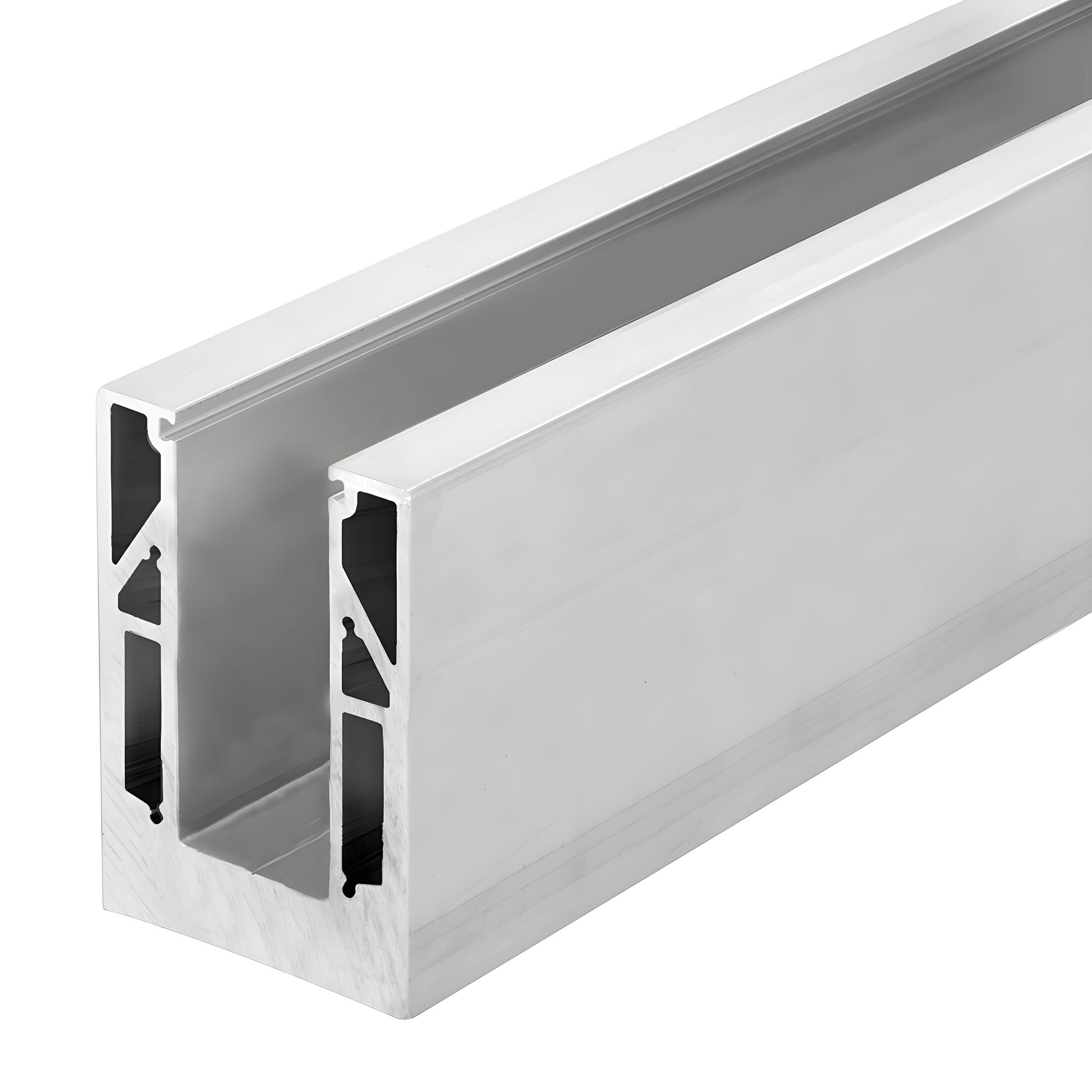

CRL 9BL Series Mill 118-1/8" Square Base Shoe Drilled for 27/32" Glass
CRL 9BL Series Mill 118-1/8" Square Base Shoe Drilled for 27/32" Glass
Regular price
$1,338.14 CAD
Regular price
Sale price
$1,338.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 9BL21D
Shipping Weight: 62.17 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 62.17 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

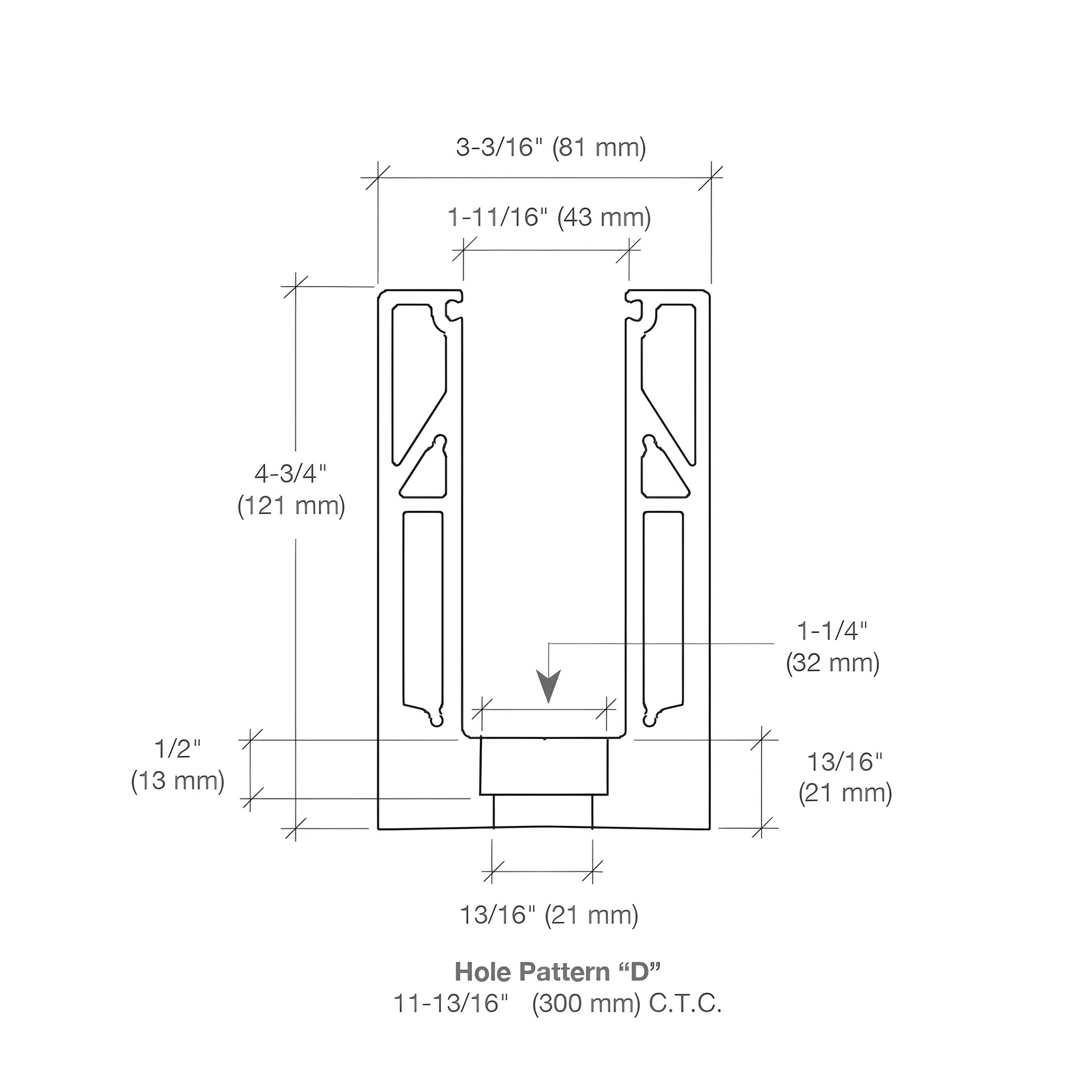

| Drilling Center To Center 11-13/16 in. | (300 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 27/32 in. (21 mm) |
| Glazing | Type Laminated |
| Height 4-3/4 in. | (121 mm) |
| Length 118-1/8 in. | (3000 mm) |
| Material | Aluminum |
| Profile | Drilled |
| Width 3-3/16 in. | (81 mm) |
Overview

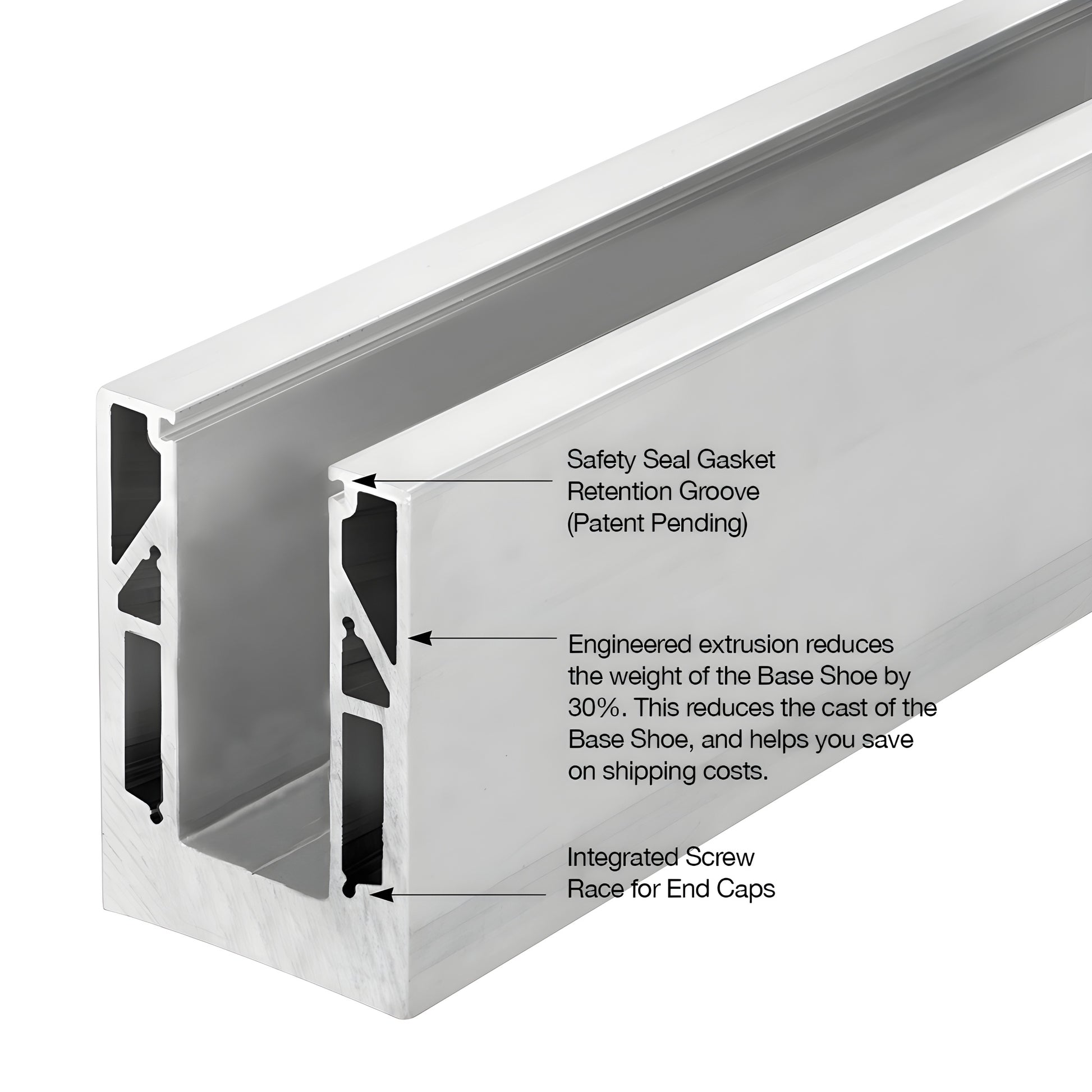

The CRL 9BL21D Series Square Base Shoe is expertly engineered for use with 27/32" (21.52 mm) Laminated Tempered Glass, offering a solution that is 30% lighter than the industry standard, making it cost-effective and eco-friendly.
Specifically designed to meet 2015 IBC Code Changes, this base shoe not only meets but exceeds the 200lb load requirement with a 4x safety factor, ensuring robust performance for CRL Glass Railing Systems.
Utilizing CRL's innovative TAPER-LOC® System, the 9BL can be custom cut to length using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting, and it meets NBC load requirements when installed according to ICC-3842.
For optimal results, CRL recommends consulting with the glass fabricator before wet setting laminated tempered glass and advises against direct powder coating of the base shoe extrusion.
Specifically designed to meet 2015 IBC Code Changes, this base shoe not only meets but exceeds the 200lb load requirement with a 4x safety factor, ensuring robust performance for CRL Glass Railing Systems.
Utilizing CRL's innovative TAPER-LOC® System, the 9BL can be custom cut to length using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting, and it meets NBC load requirements when installed according to ICC-3842.
For optimal results, CRL recommends consulting with the glass fabricator before wet setting laminated tempered glass and advises against direct powder coating of the base shoe extrusion.
