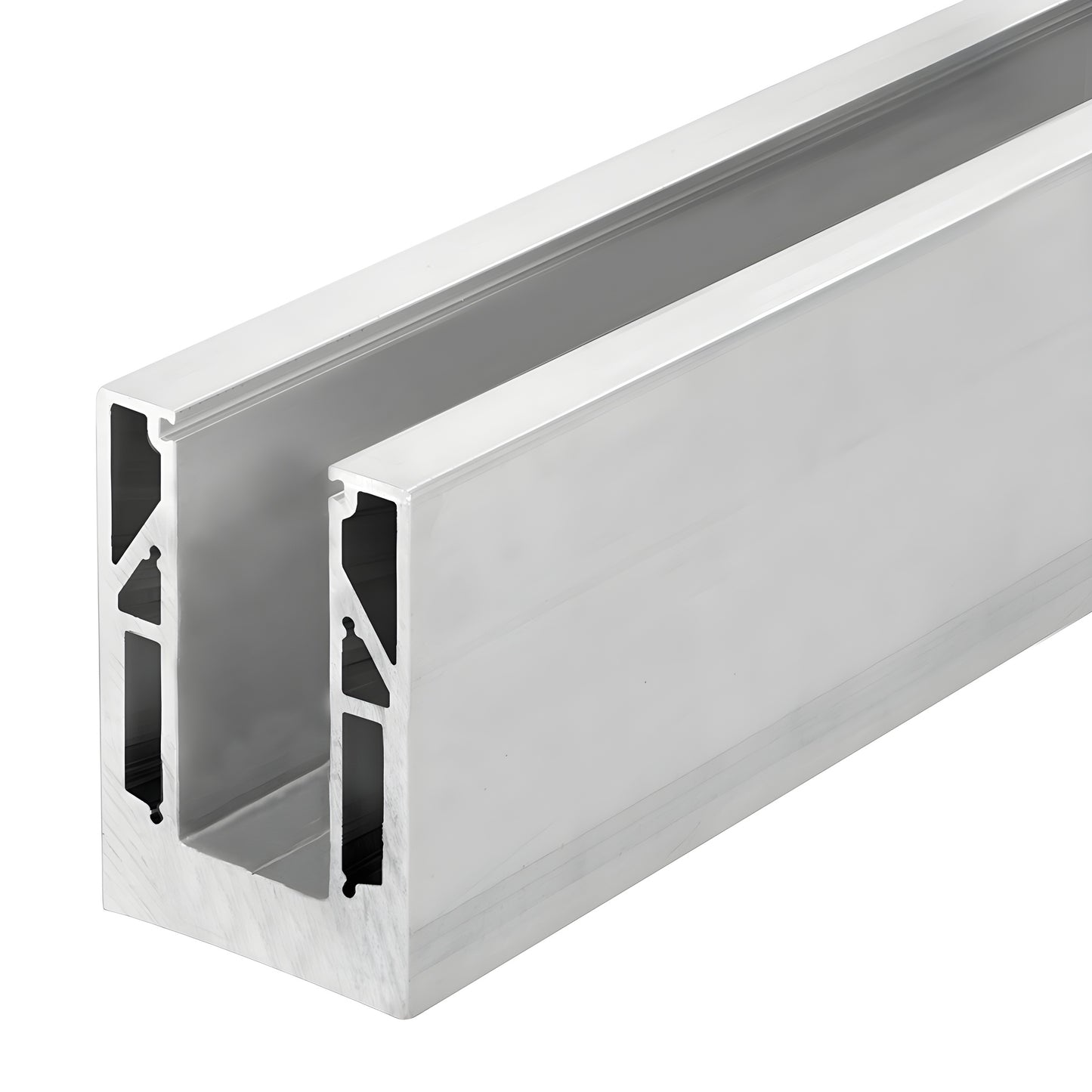

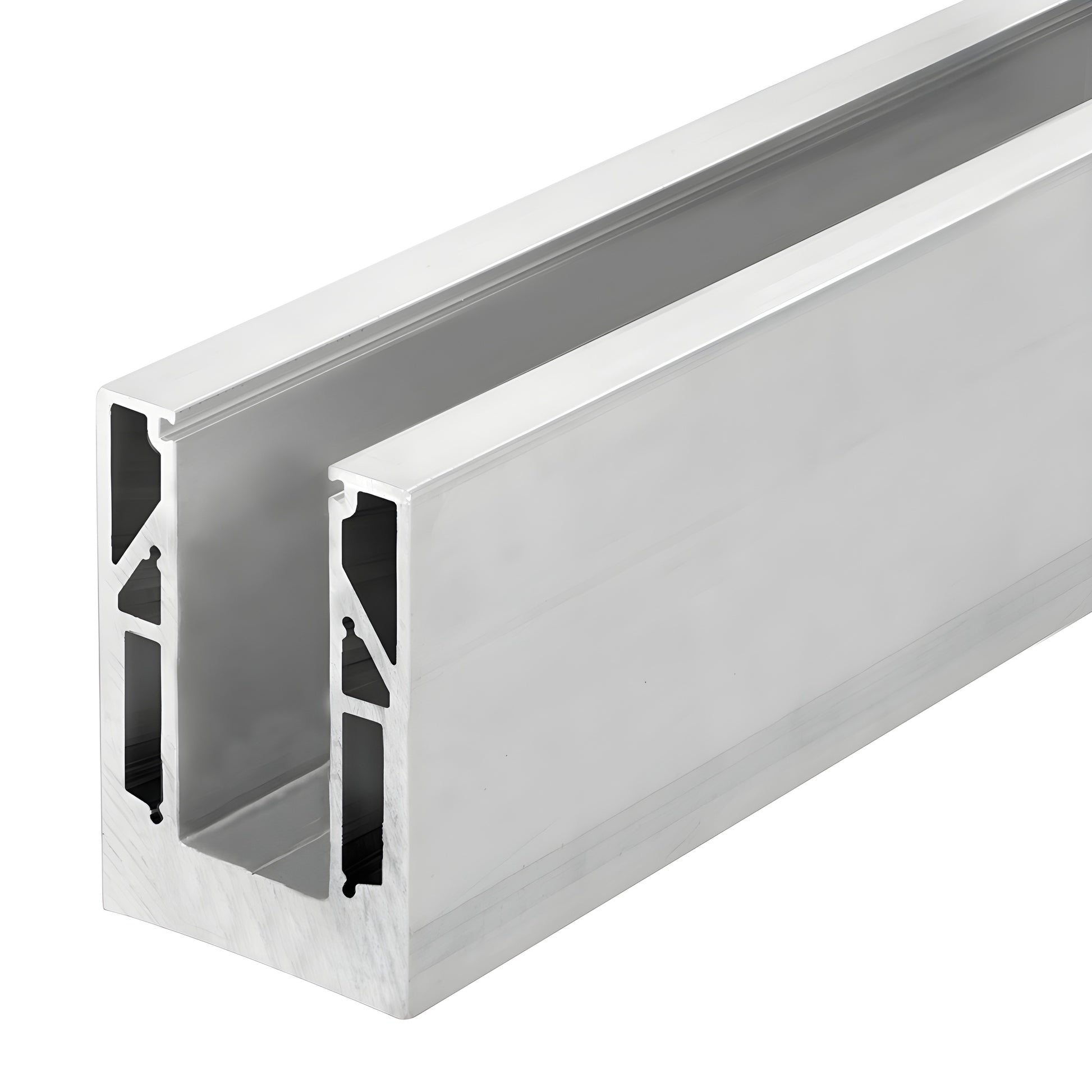

CRL 9BL Series Mill 118-1/8" Square Base Shoe Fascia Mount Drilled for 11/16" Glass
CRL 9BL Series Mill 118-1/8" Square Base Shoe Fascia Mount Drilled for 11/16" Glass
Regular price
$1,286.94 CAD
Regular price
Sale price
$1,286.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 9BL68F
Shipping Weight: 160.58 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 160.58 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

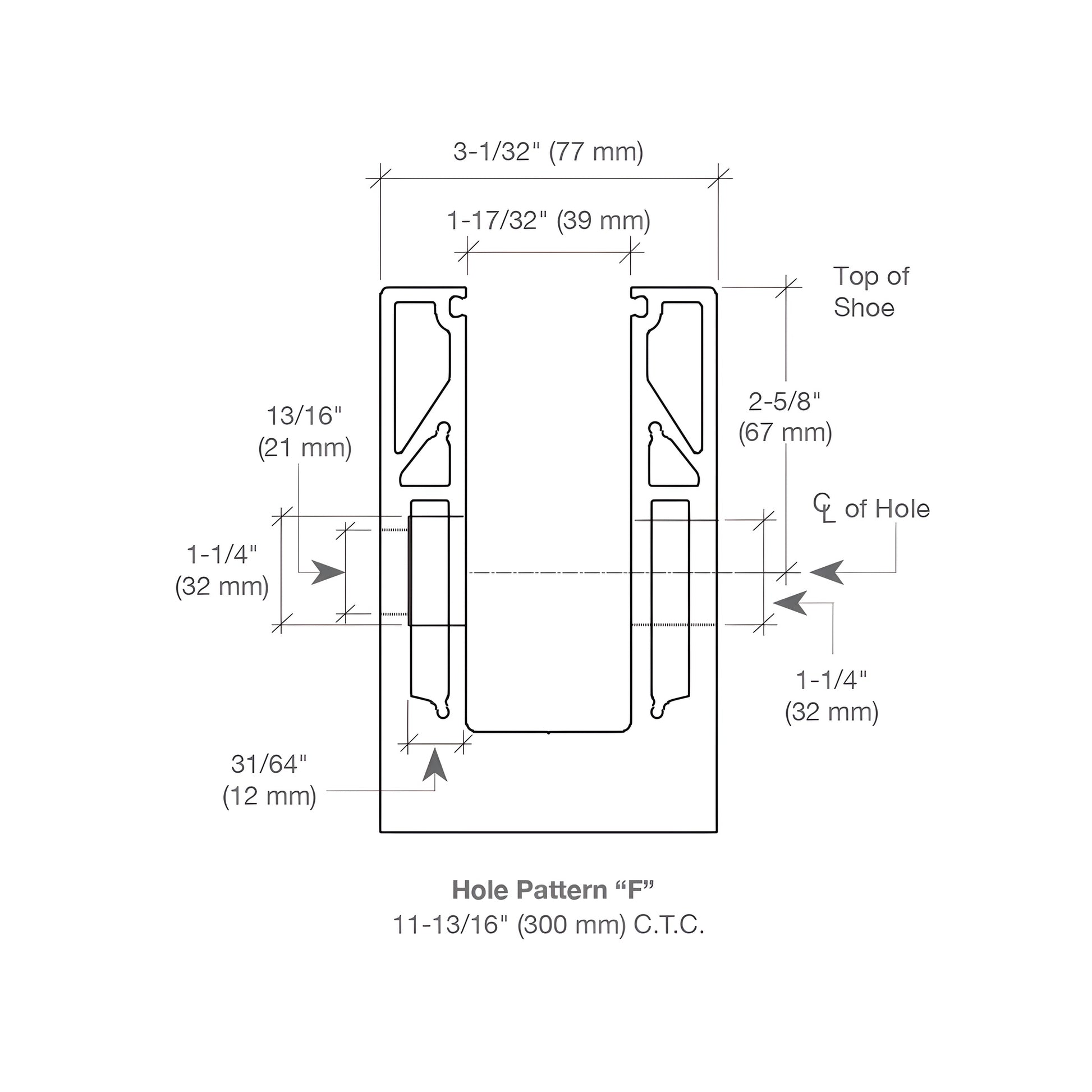

| Drilling Center To Center 11-13/16 in. | (300 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 11/16 in. (17 mm) |
| Glazing | Type Laminated |
| Height 4-3/4 in. | (121 mm) |
| Length 118-1/8 in. | (3000 mm) |
| Material | Aluminum |
| Width 3-1/32 in. | (77 mm) |
Overview
The CRL 9BL68F Series Square Base Shoe is specifically designed for 11/16" (17.52 mm) laminated tempered glass and is engineered to meet the 2015 IBC code changes.

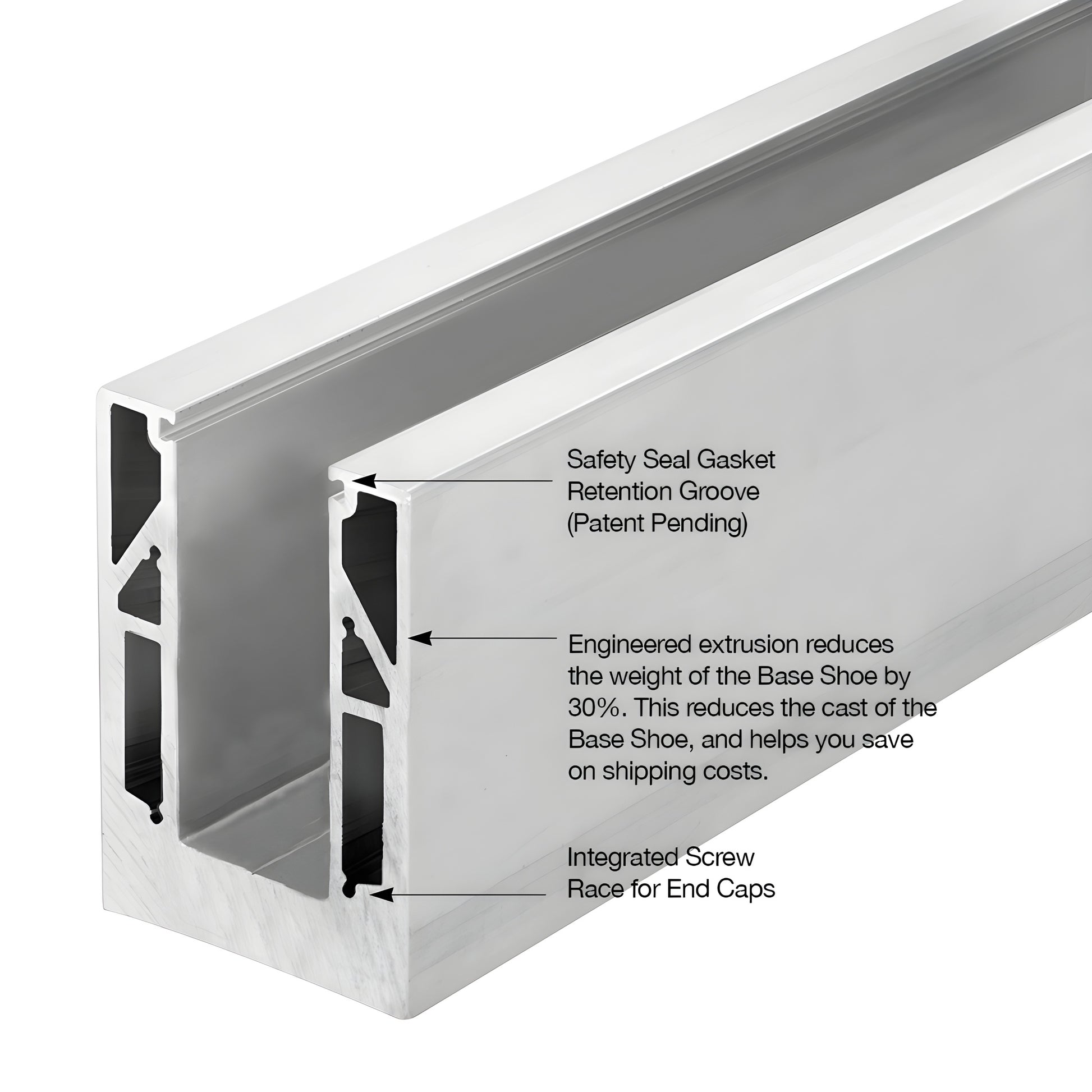

This innovative product is 30% lighter than the industry standard, making it more cost-effective, eco-friendly, and reducing shipping expenses.
The base shoe is compatible with CRL's patented TAPER-LOC® System and can be easily cut to size using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting.
Please note, CRL advises against direct powder coating of this extrusion; instead, apply powder-coated cladding over the base shoe for optimal results.
For installation, ensure to place the base shoe in its final position to mark and drill the substrate accurately.
For further details or precise shipping weights, contact CRL Customer Service.
This innovative product is 30% lighter than the industry standard, making it more cost-effective, eco-friendly, and reducing shipping expenses.
The base shoe is compatible with CRL's patented TAPER-LOC® System and can be easily cut to size using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting.
Please note, CRL advises against direct powder coating of this extrusion; instead, apply powder-coated cladding over the base shoe for optimal results.
For installation, ensure to place the base shoe in its final position to mark and drill the substrate accurately.
For further details or precise shipping weights, contact CRL Customer Service.
