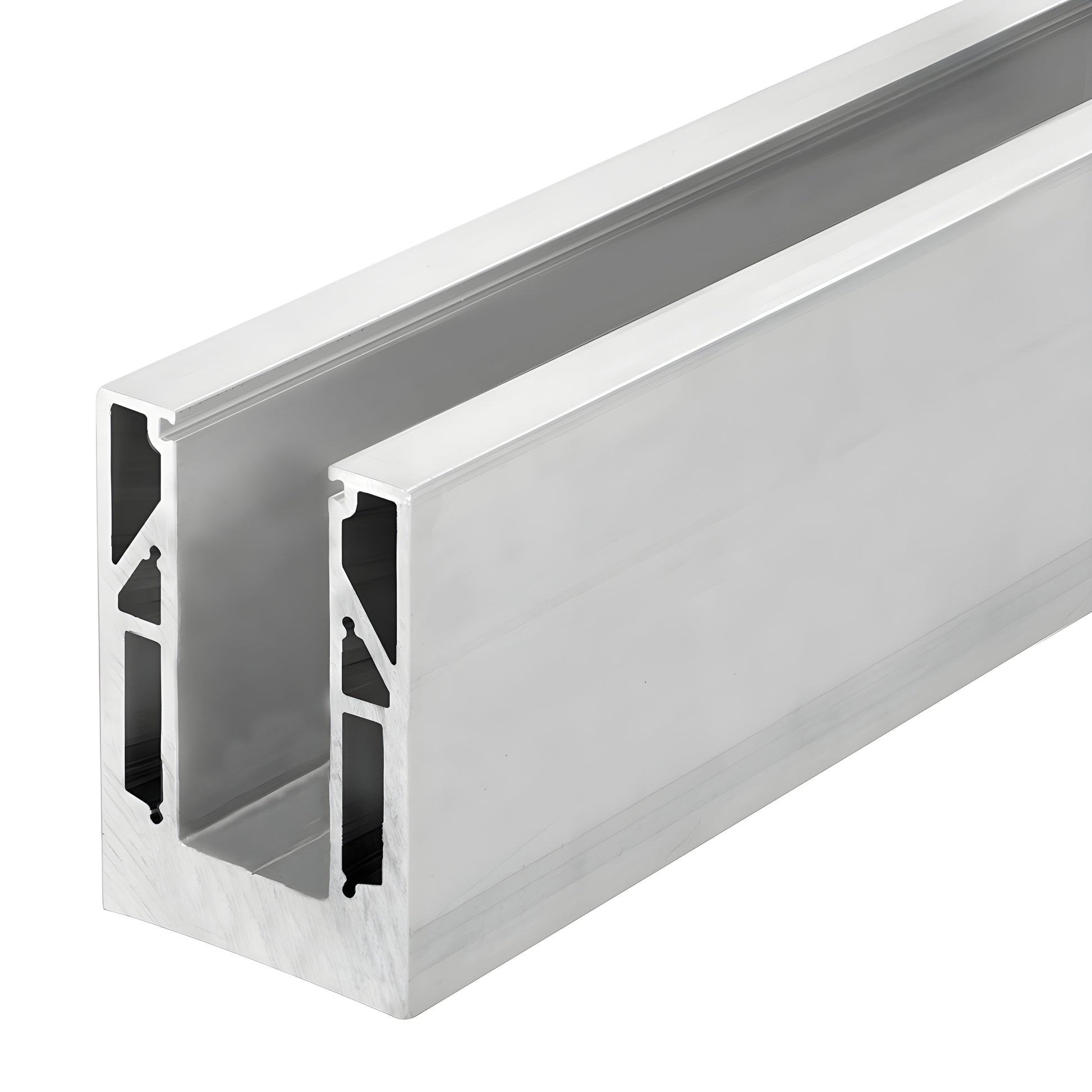

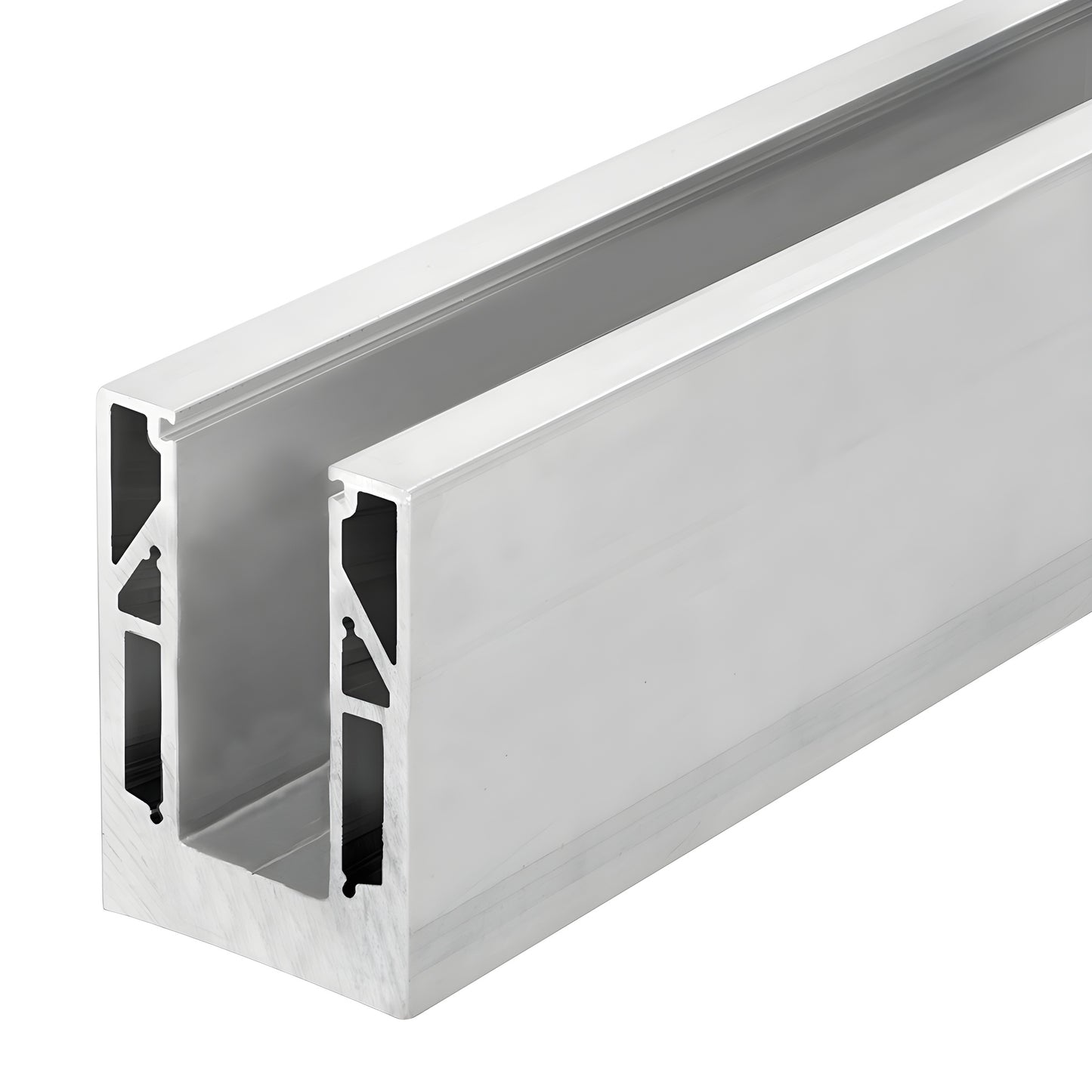

CRL 9BL Series Mill 118-1/8" Square Base Shoe Fascia Mount Drilled for 27/32" Glass

The CRL 9BL21F Series Square Base Shoe is a top choice for those working with 27/32" (21.52 mm) Laminated Tempered Glass.

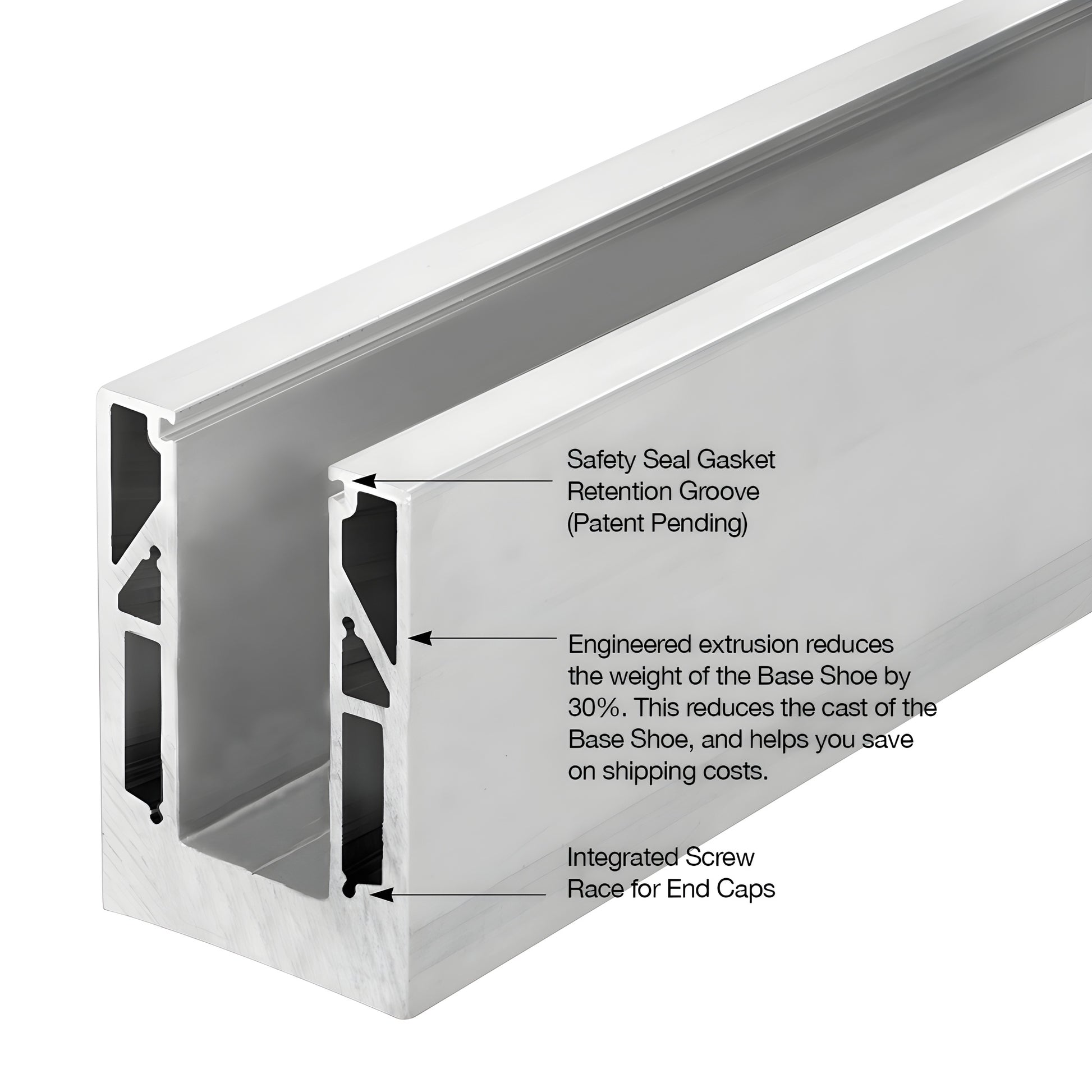

Engineered to comply with the 2015 IBC Code Changes, this base shoe is 30% lighter than the industry standard, leading to cost savings on shipping and a more environmentally friendly option.
It meets and exceeds a 200-pound load with a 4x safety factor, ensuring durability and reliability.
CRL recommends consulting with a glass fabricator before wet setting the glass, and notes that the product is compatible with the CRL TAPER-LOC® System and can be easily cut to size.
For optimal results, avoid powder coating the extrusion directly; instead, apply powder-coated cladding over the base shoe.

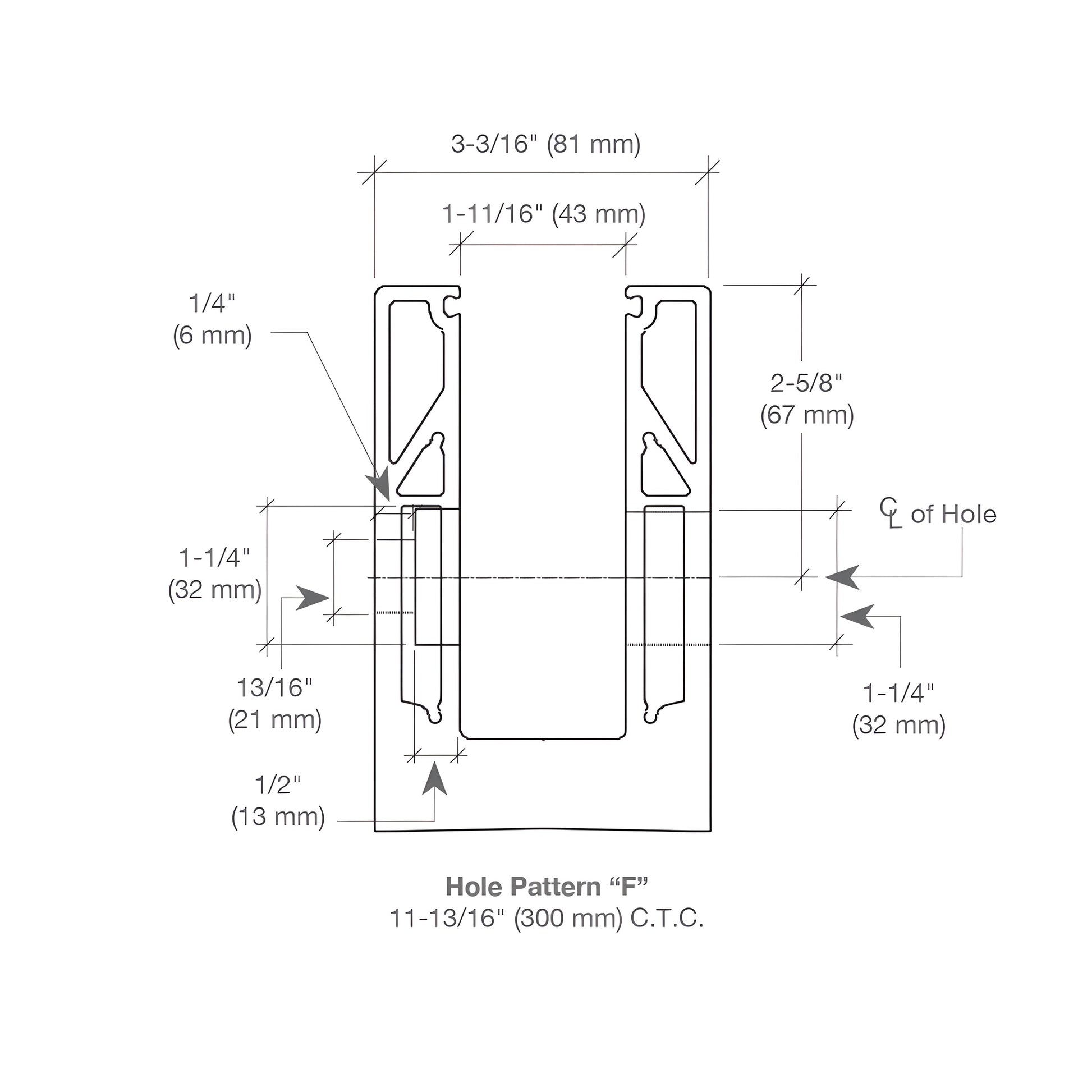

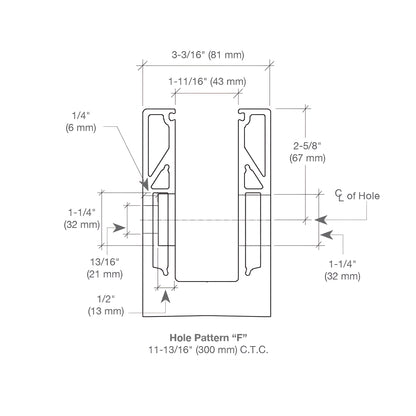

For precise installation, pre-drilled holes have a tolerance of +1/8 (3 mm)/-1/16 (1.5 mm), and it's suggested to mark the position before drilling into concrete or steel substrates.
