crlaurence.ca

CRL 9BL Series Mill 118-1/8" Square Base Shoe Undrilled for 11/16" Glass

CRL 9BL Series Mill 118-1/8" Square Base Shoe Undrilled for 11/16" Glass

$1,212.70 CAD
$1,212.70 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 9BL68
Shipping Weight: 72.9 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

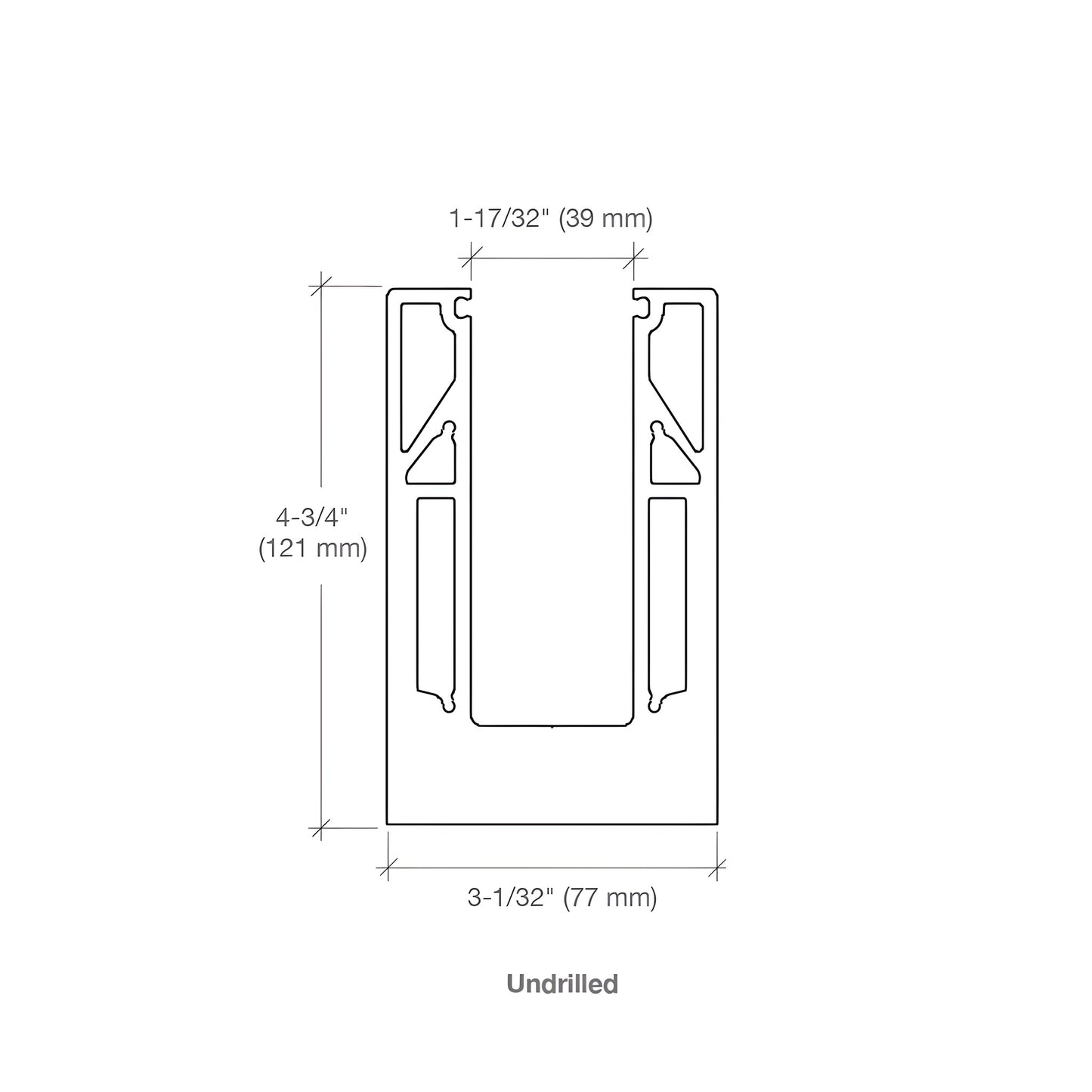

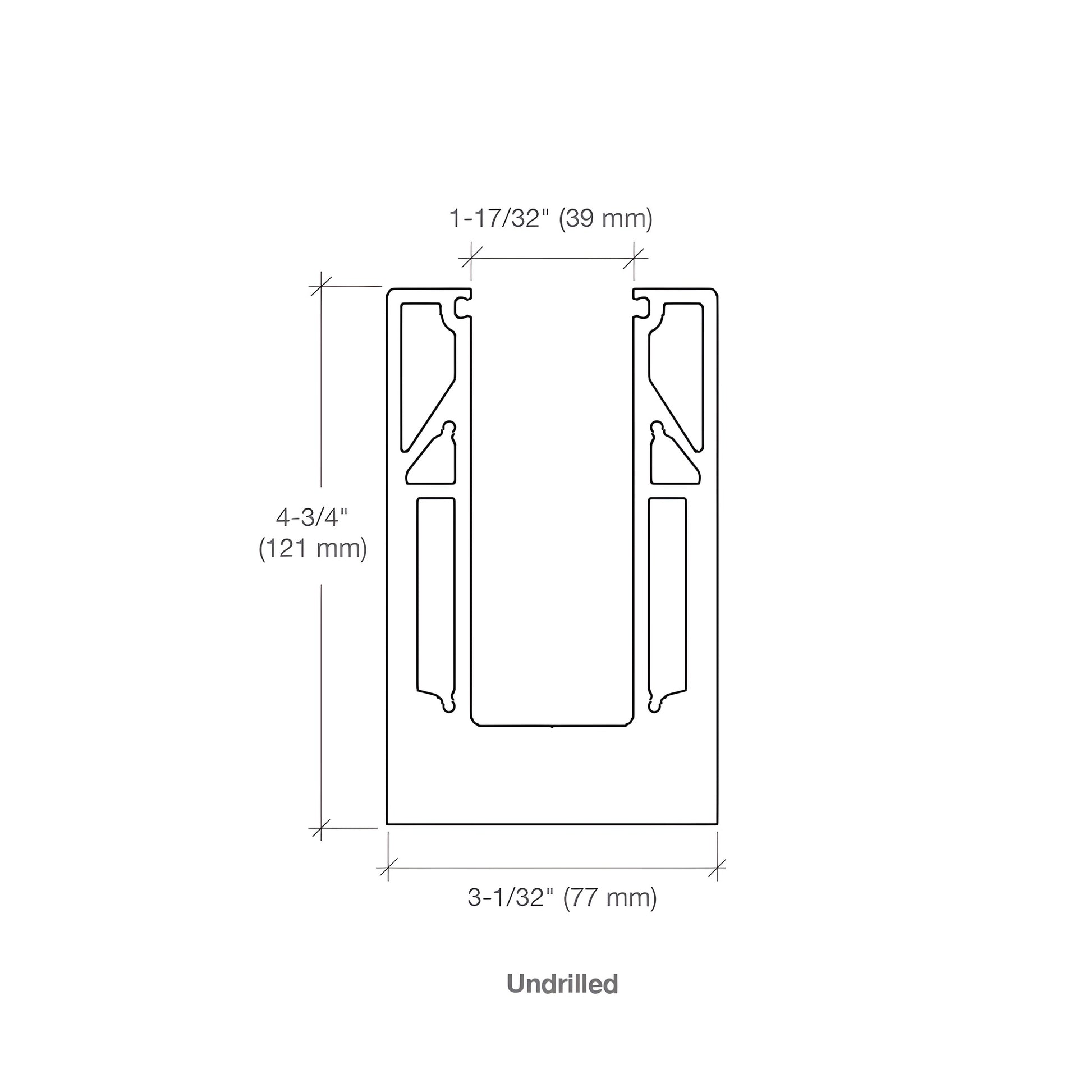

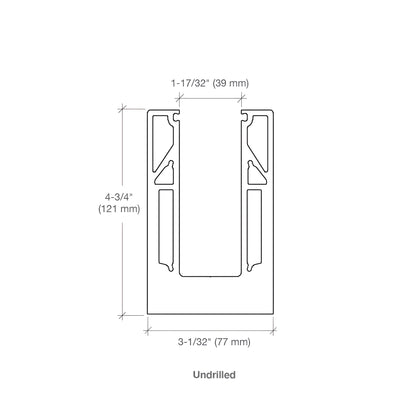

Product Information

Description

Finish/ColorMill
Glazing Thickness11/16 in. (17 mm)
GlazingType Laminated
Height 4-3/4 in.(121 mm)
Length 118-1/8 in.(3000 mm)
MaterialAluminum
Width 3-1/32 in.(77 mm)

Overview

The CRL 9BL68 Series Square Base Shoe is expertly crafted for 11/16" (17.52 mm) laminated tempered glass and is designed to meet the 2015 IBC code changes.

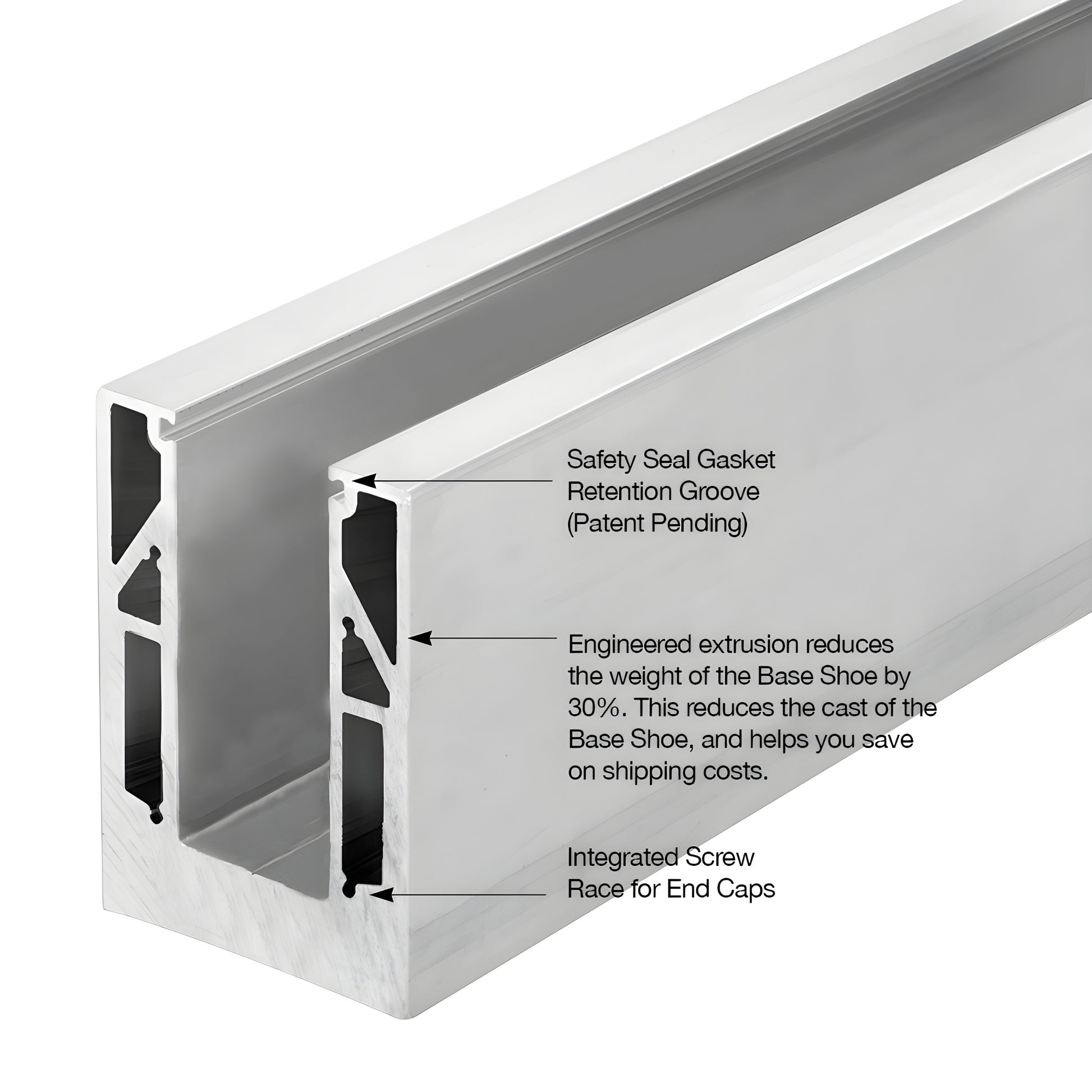

This innovative base shoe is 30% lighter than standard models, making it more cost-effective, eco-friendly, and reducing shipping costs.
Engineered to support a 200 lb load with a 4x safety factor, it meets NBC load requirements when installed according to ICC-3842 standards.
For best results, CRL recommends consulting with a glass fabricator before wet setting laminated tempered glass and advises against directly powder coating the base shoe extrusion.
