CRL 9BL Series Mill 120" Square Base Shoe Drilled for 9/16" Glass

CRL 9BL Series Mill 120" Square Base Shoe Drilled for 9/16" Glass

$1,272.85 CAD
$1,272.85 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 9BL56D
Shipping Weight: 71.388 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

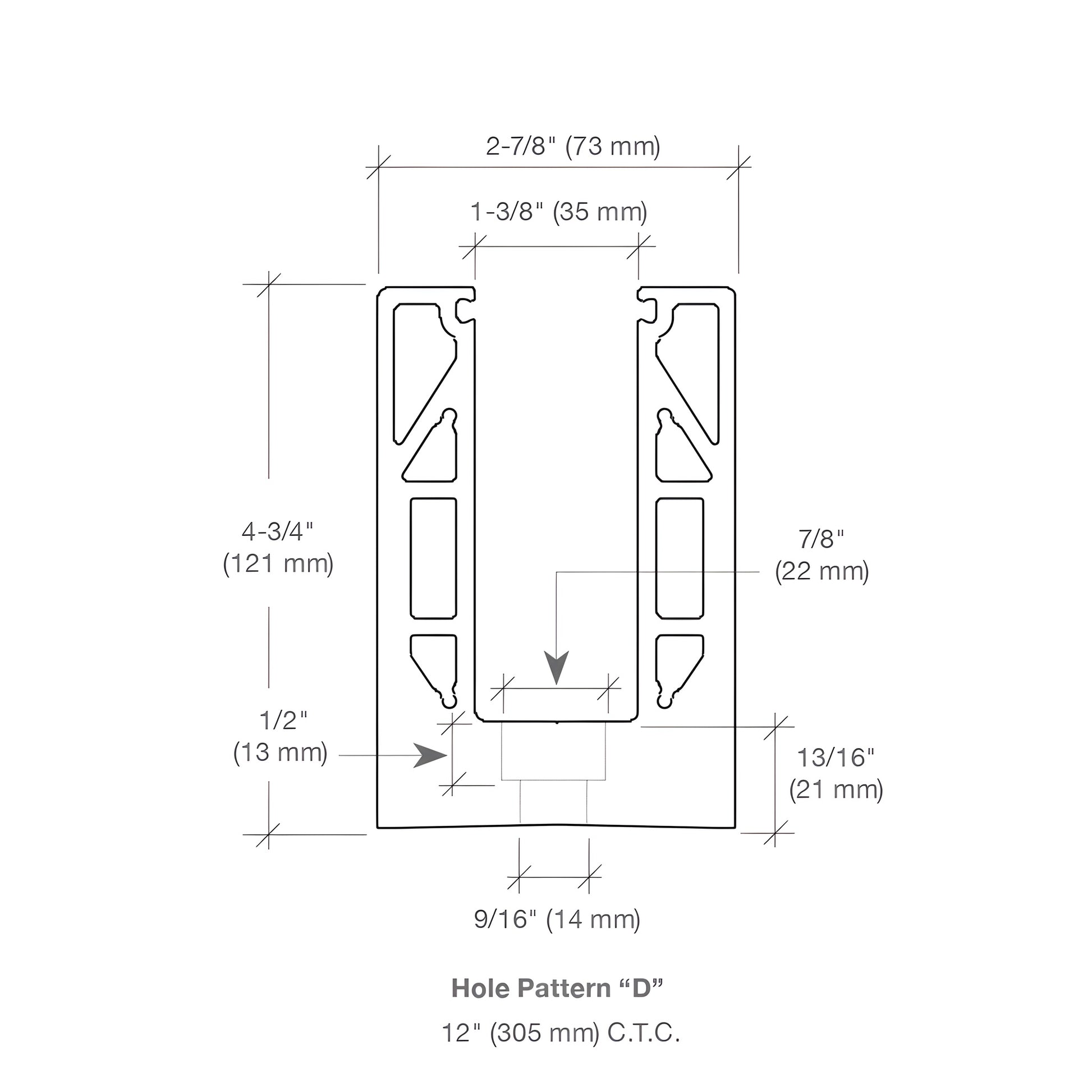

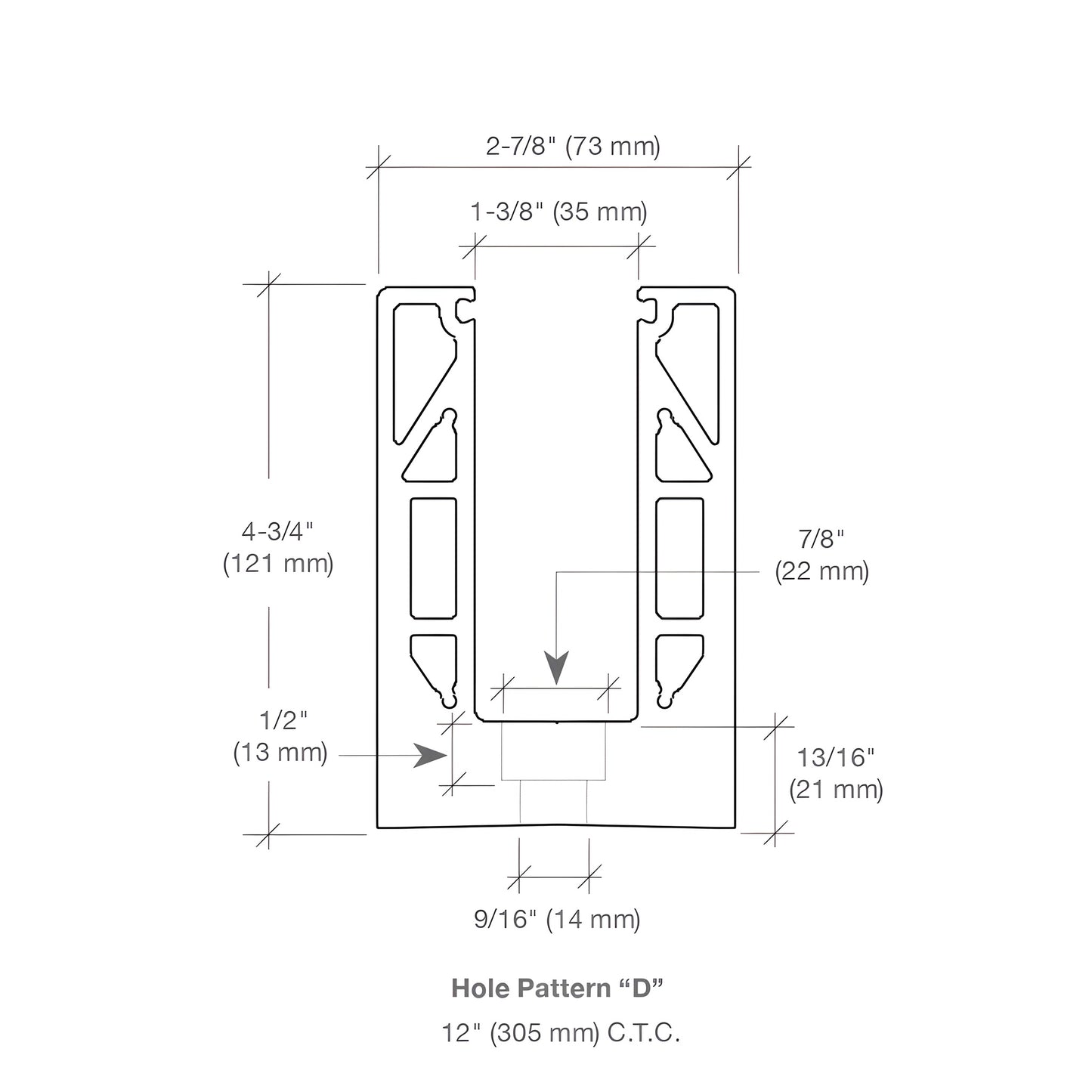

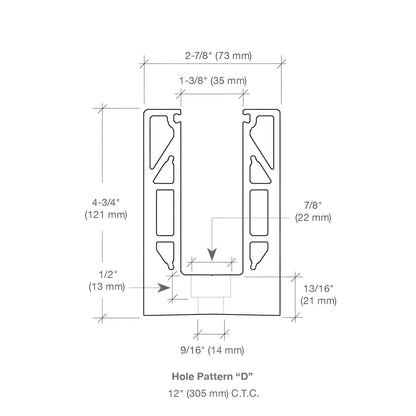

Drilling Center To Center 12 in.(305 mm)
Finish/ColorMill
Glazing Thickness9/16 in. (14 mm)
GlazingType Laminated
Height 4-3/4 in.(121 mm)
Length 120 in.(3048 mm)
MaterialAluminum
Width 2-7/8 in.(73 mm)

Overview

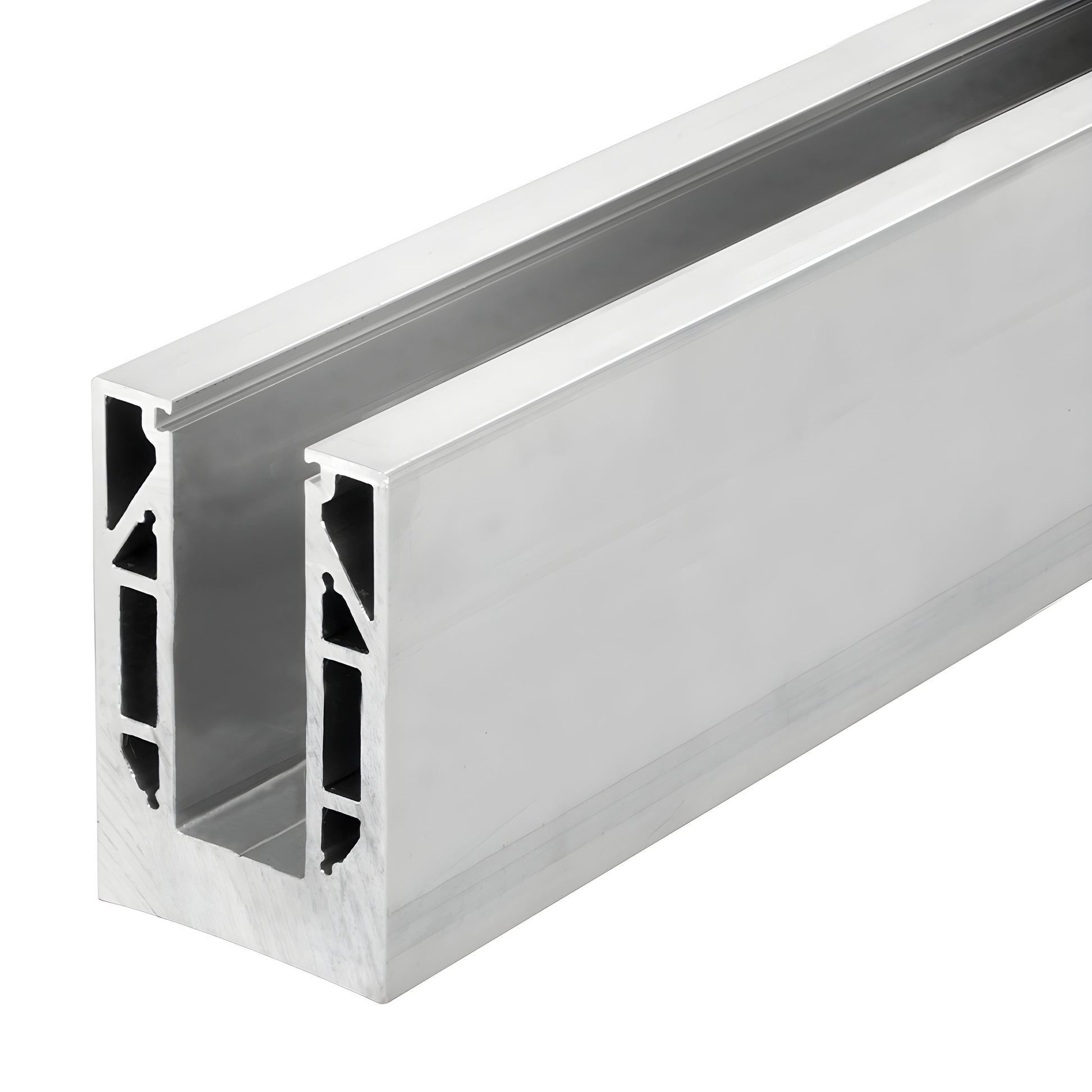

The CRL 9BL56D Series Square Base Shoe is expertly crafted for 9/16" (13.52 mm) Laminated Tempered Glass, adhering to the 2015 IBC Code Changes.

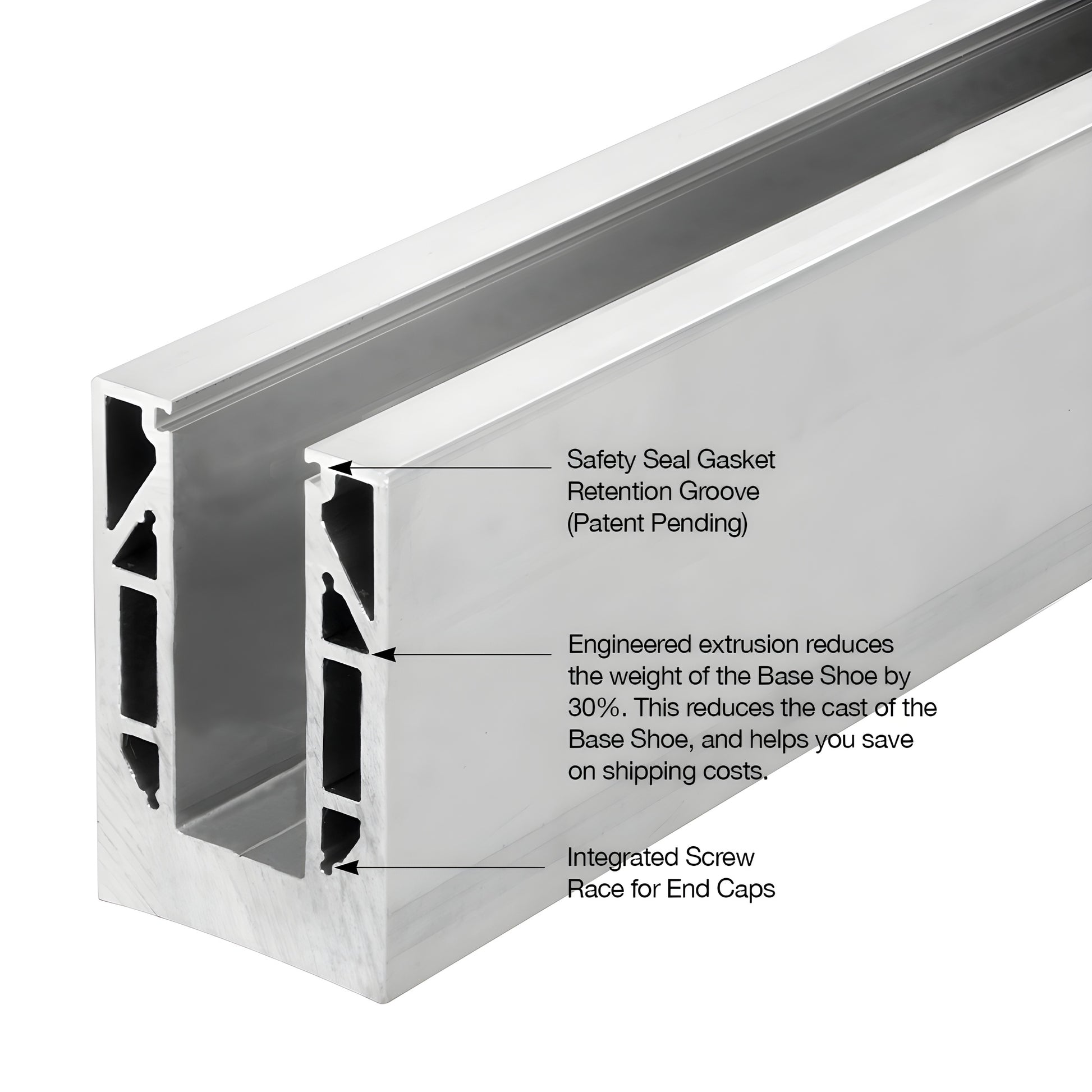

This innovative base shoe is 30% lighter than industry standards, making it cost-effective and eco-friendly, while also reducing shipping expenses.
It seamlessly integrates with CRL's patented TAPER-LOC® System and is easily customizable to your desired length.
Please note, direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe.
For optimal installation, align the base shoe in its final position and mark hole placements before drilling into your concrete or steel substrate.
