CRL 9BL Series Mill 120" Square Base Shoe Fascia Mount Drilled for 9/16" Glass
CRL 9BL Series Mill 120" Square Base Shoe Fascia Mount Drilled for 9/16" Glass
Regular price
$1,286.94 CAD
Regular price
Sale price
$1,286.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 9BL56F
Shipping Weight: 67.93 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 67.93 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

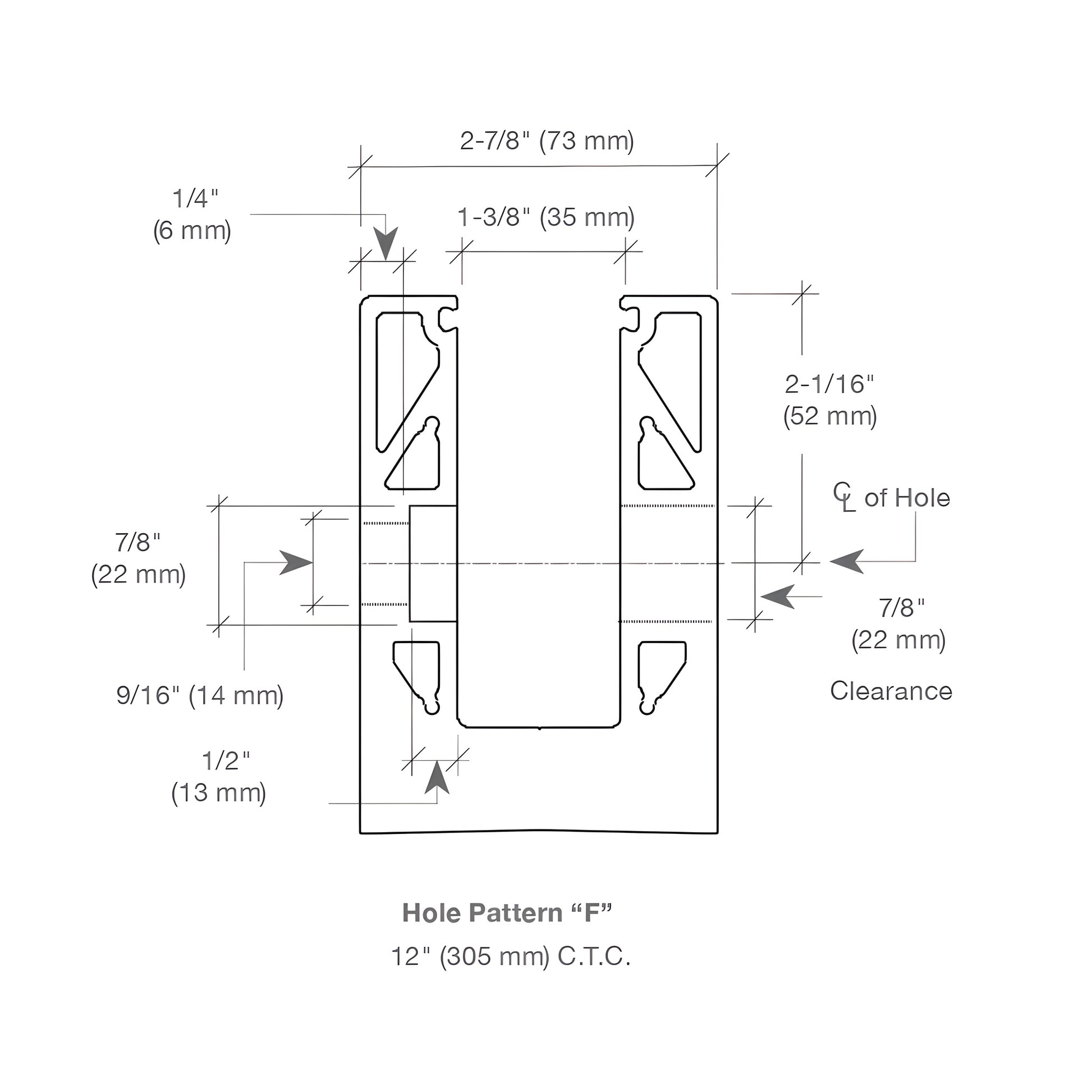

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 9/16 in. (14 mm) |
| Glazing | Type Laminated |
| Height 4-3/4 in. | (121 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Width 2-7/8 in. | (73 mm) |
Overview

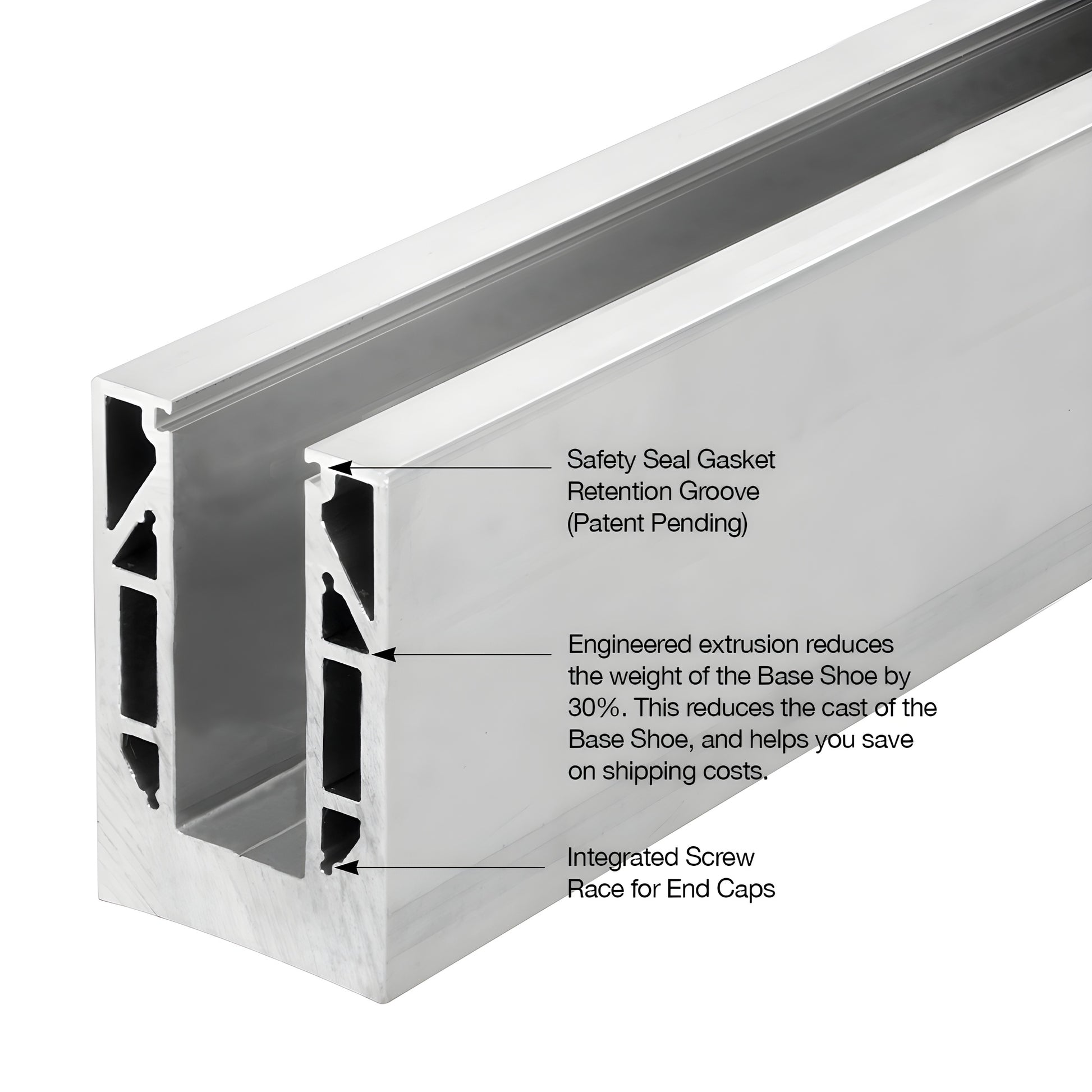

The CRL 9BL56D Series Square Base Shoe is expertly designed for 9/16" (13.52 mm) laminated tempered glass and complies with the 2015 IBC Code changes.
This innovative product is 30% lighter than the industry standard, offering cost-effectiveness, eco-friendliness, and reduced shipping expenses.
It meets and exceeds the 200lb load requirement with a 4x safety factor and is compatible with CRL's TAPER-LOC® System.
For optimal results, consult with your glass fabricator prior to installation.
Remember, powder coating should be applied over cladding, not directly on the base shoe extrusion.
For more information or assistance, contact CRL Customer Service.
This innovative product is 30% lighter than the industry standard, offering cost-effectiveness, eco-friendliness, and reduced shipping expenses.
It meets and exceeds the 200lb load requirement with a 4x safety factor and is compatible with CRL's TAPER-LOC® System.
For optimal results, consult with your glass fabricator prior to installation.
Remember, powder coating should be applied over cladding, not directly on the base shoe extrusion.
For more information or assistance, contact CRL Customer Service.
Specifications
Quote Request Forms
CAD Drawings - pdf
CAD Drawings - dwg
