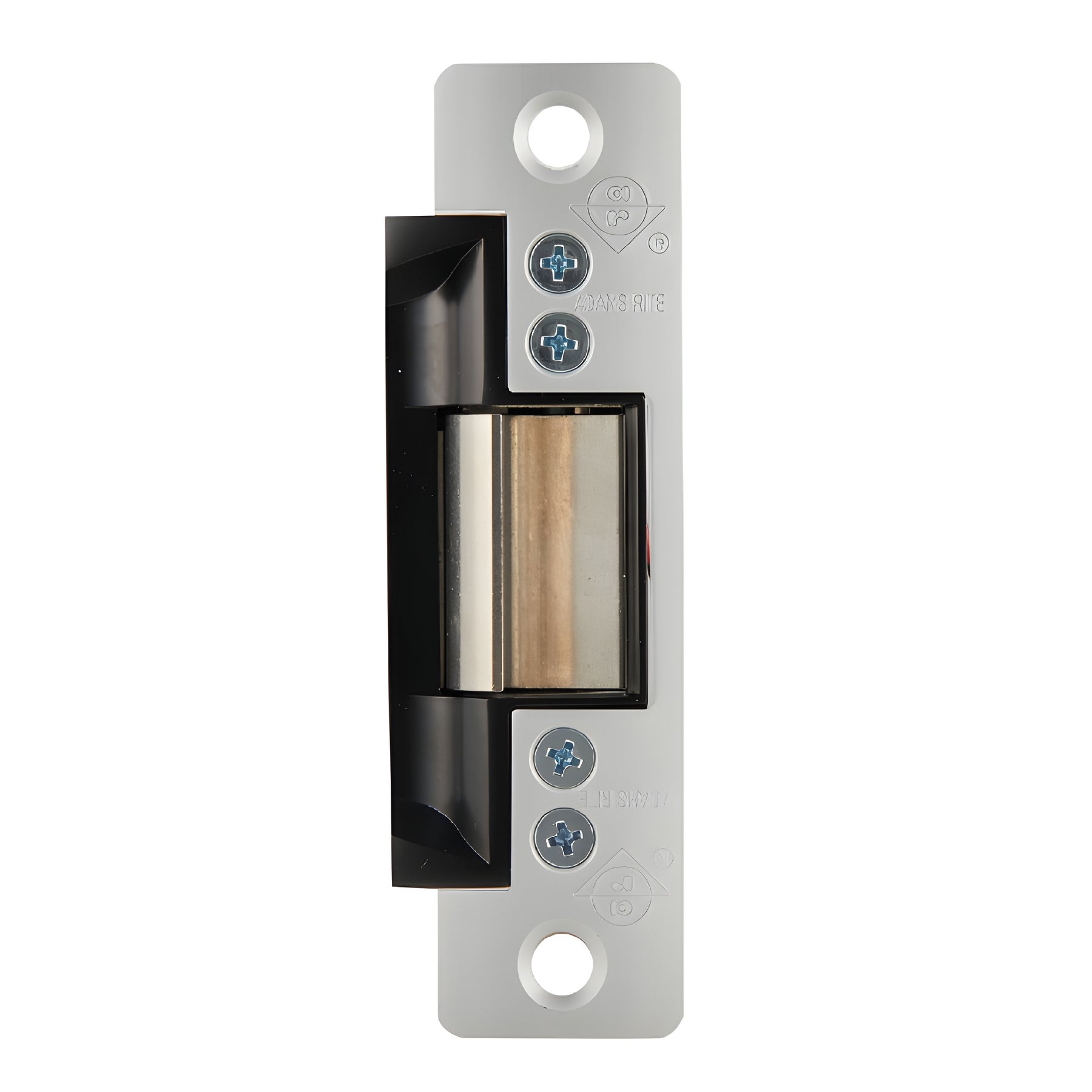

CRL Adams Rite® Aluminum 24V AC Electric Strike 7101 Series

Finish (2)

Aluminum
Dark Bronze

Overview

SKU	DH02011
Sold as	1 Each
Brand	Adams Rite
Case Depth	1-5/8
Case Height	3-3/8
Case Width	1
Certification	UL 1034 Burglary-Resistant, UL 294 ( 6th Edition ), ANSI/BHMA A156.31, Grade 1
Face Plate Height	4-7/8
Face Plate Width	1-1/4
Faceplate Style	Radiused to match noseon inactive leaf in a pairof narrow stile doors
Finish/Color:	Aluminum
Handing	Non Handed
Holding Force	1500
Includes	Mounting Hardware and Installation Instructions
Input	24V AC
Material	Stainless Steel
Projection	1/2 To 5/8 (latchbotl)
Recommended Door Type	Aluminum, Hollow Metal, Wood
Series	7101
Strike Opening	5/8" x 1-7/16" x 1/2" deep
Type	Electric Strike
UL Listed	Yes

Description

Product Details

For Use with Adams Rite Deadlatches and Cylindrical Locks
Field Convertible from Fail-Secure to Fail-Safe
UL Listed for Burglary Resistance

This Adams Rite® 7101 Electric Strike provides for remote electrical actuation to unlock the strike jaw and release the latch bolt for entry without operating the latch. The electric strike is intended for use with Adams Rite Deadlatches and cylindrical locksets with 1/2" (12.7 mm) to 5/8" (15.9 mm) latchbolt projection. For use in Aluminum, Hollow Metal, or Wood applications. with 3/4" (19 mm) projection without deadbolt latches. The standard strike is supplied in fail-secure mode, but is field convertible to fail-safe.
