CRL Adjustable End-Load Floor Mount Bottom Pivot Set for Glass Doors
Item# CRL8010ADJ
Shipping Weight: 11.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Bottom Door Clearance Adjustment
1/4
Bottom Door Rail Depth
1
Door Weight
200
Handing
Non Handed
Mounting Type
Floor
Pivot Bottom
Yes
Recommended Door Type
Aluminum Store Front
Type
End-Load Arm
- Adjustable without removing the door
- Bottom clearance adjustable from 1/4" to 1/2" (6 to 12 mm)
- Designed for end-load arm applications

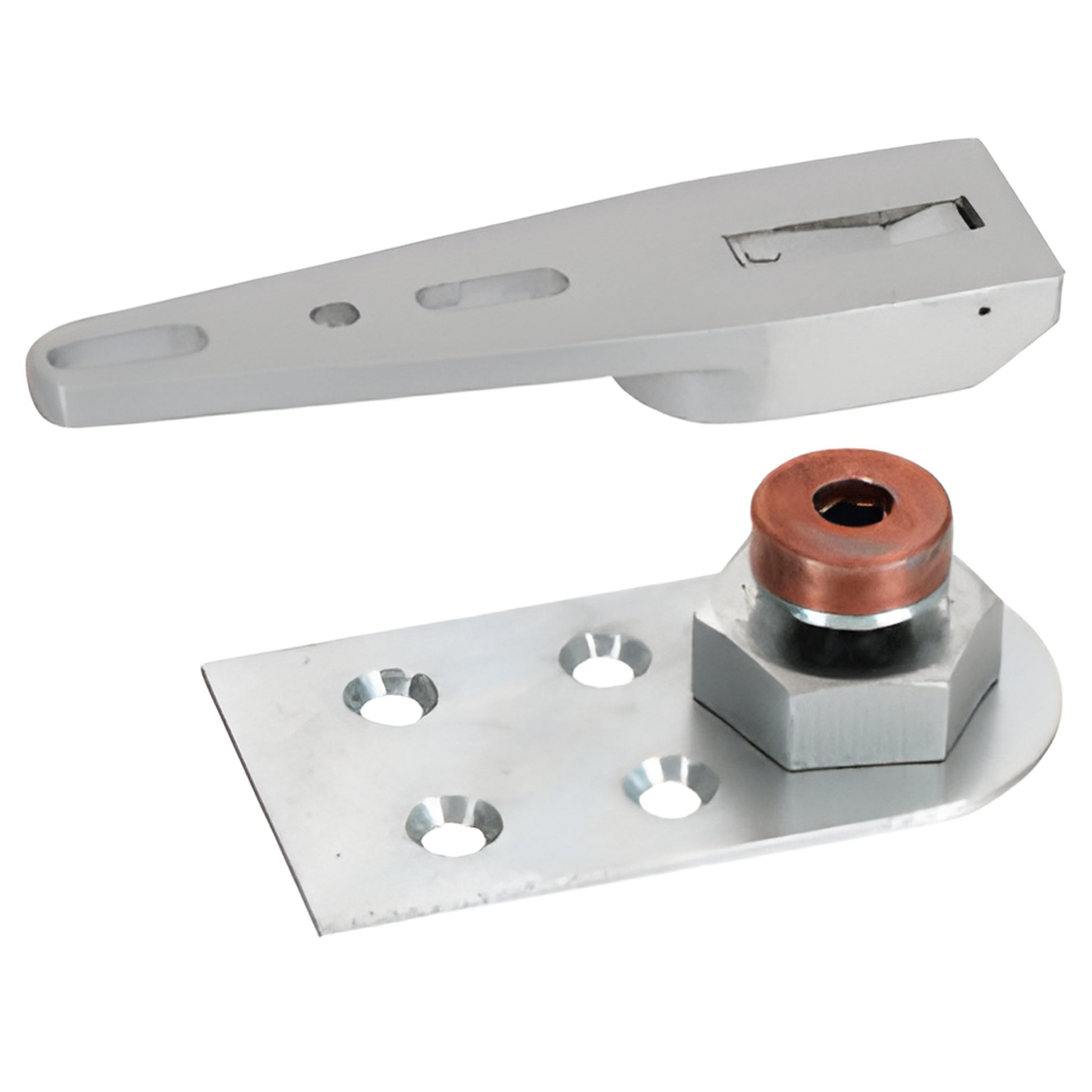

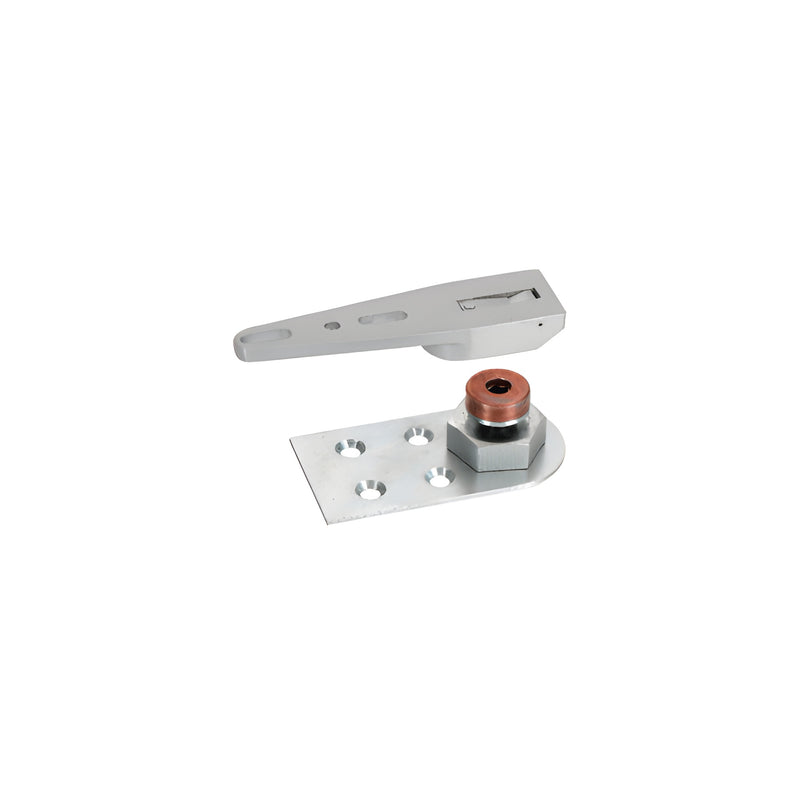

CRL Door-On Adjustable Bottom Pivot Set (SKU: CRL8010ADJ) is a heavy-duty, adjustable bottom pivot for end-load glass door installations. Fits bottom door rails with a minimum 1" (25 mm) depth and lets you fine-tune door clearance from 1/4" to 1/2" (6–12 mm) while the door remains installed. Supports door weights up to 200 lbs. (90.7 kg).
Note: Not compatible with CRL Low Profile Door Rails.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this information from CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor and video card settings.
Order the CRL8010ADJ Adjustable Bottom Pivot Set for precise, tool-free on-door adjustment — add to cart now.
