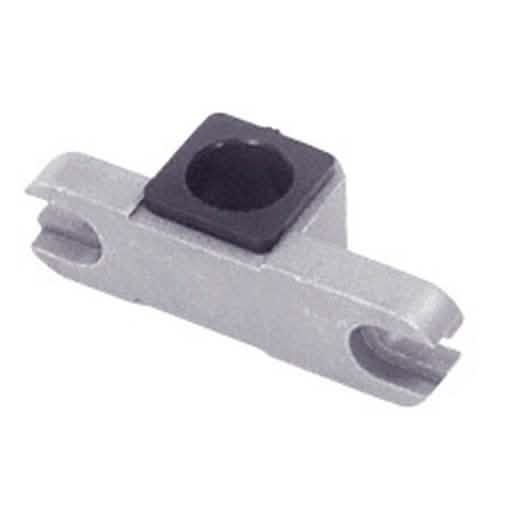

CRL Adjustable Glass Door Patch Insert 1/2" Pivot Pin Replacement

• Compatible with PH20 and PH21 top door patch fittings
• Fits 1/2" (12.7 mm) diameter pivot pins when specified
• Also accepts circular pivots up to 19/32" (15 mm) diameter

The CRL Adjustable Top Door Patch Insert is designed for reliable top-patch pivoting and works with Transom Patch Fittings using the No. 1NT300 Top Pivot Insert, No. 1NT401 Surface Mounted Top Pivot, No. 1NT405 Threaded Top Pivot and the CRL860 Walking Beam Pivot. The insert accepts circular pivots up to 19/32" (15 mm) diameter for broad compatibility across commercial glass door hardware.

INCLUDES:
1 Each: 1NT303 Adjustable Top Door Patch Insert
2 Each: Hex head cap screws for attaching insert to top door patch

SPECIFICATIONS
For Use With: PH20 and PH21 top door patch fittings
NOTE: Do not use with PH20C
Connects To:
All Transom Patch Fittings with:
1NT300 Top Pivot Insert
1NT401 Surface Mounted Top Pivot
1NT405 Threaded Top Pivot
CRL9040WBP Walking Beam Pivot
Accepts:
Circular pivot pins up to 19/32" (15 mm) diameter; compatible applications using 1/2" (12.7 mm) pivots as noted

Product Warning:

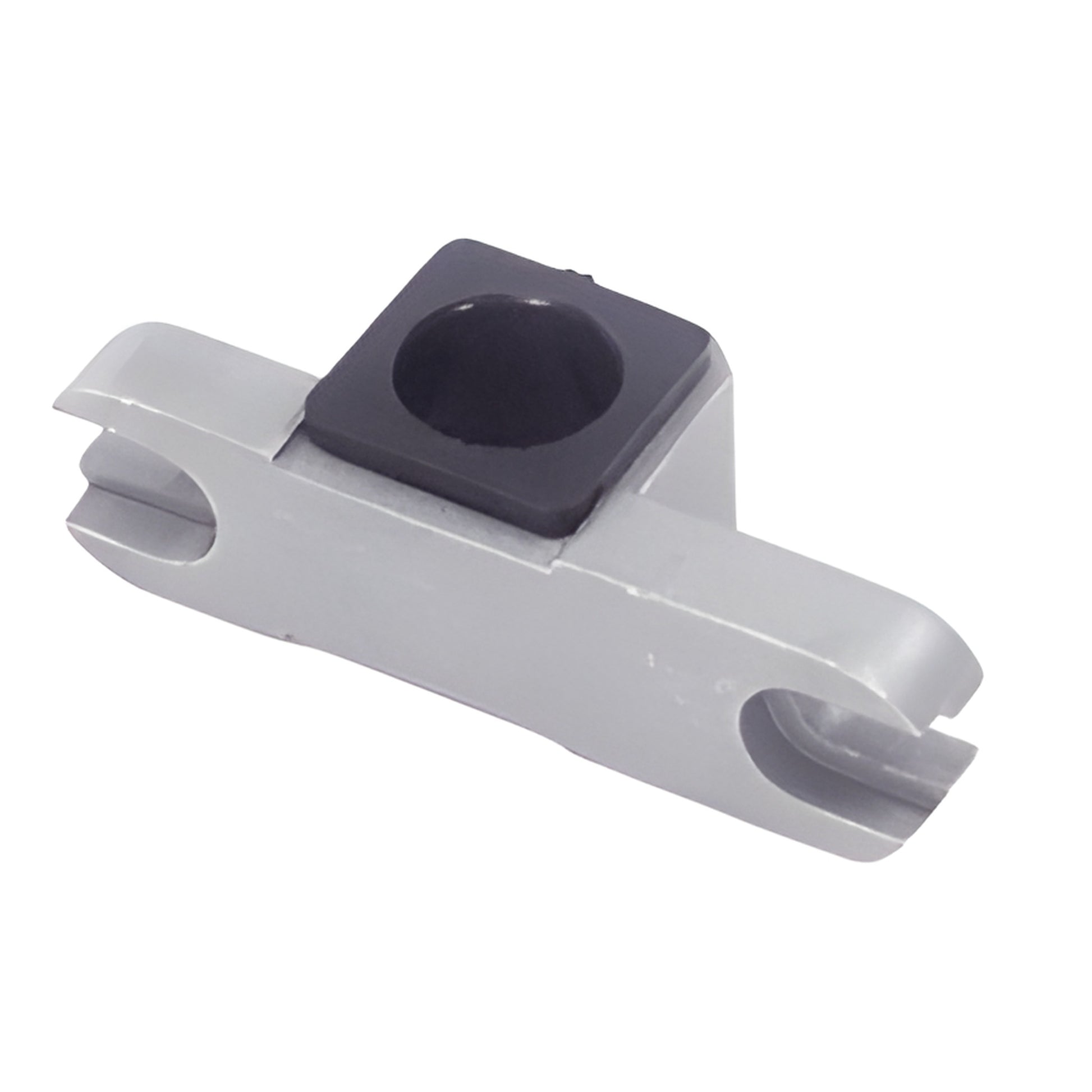

If using this insert with the Rixson® 340 Center-Hung Walking Beam Pivot, or any 1/2" (13 mm) diameter pivot pin, use insert 1NT303R (SKU: 1NT303R) for correct fit and safe operation.
