CRL Aluminum European Top Door Patch Fitting with 1NT304 Insert
CRL Aluminum European Top Door Patch Fitting with 1NT304 Insert
Regular price
$118.35 CAD
Regular price
Sale price
$118.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH21BA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT304 |
| Length 6-7/16 in. | (164 mm) |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Top |
| With | Insert Yes |
Overview

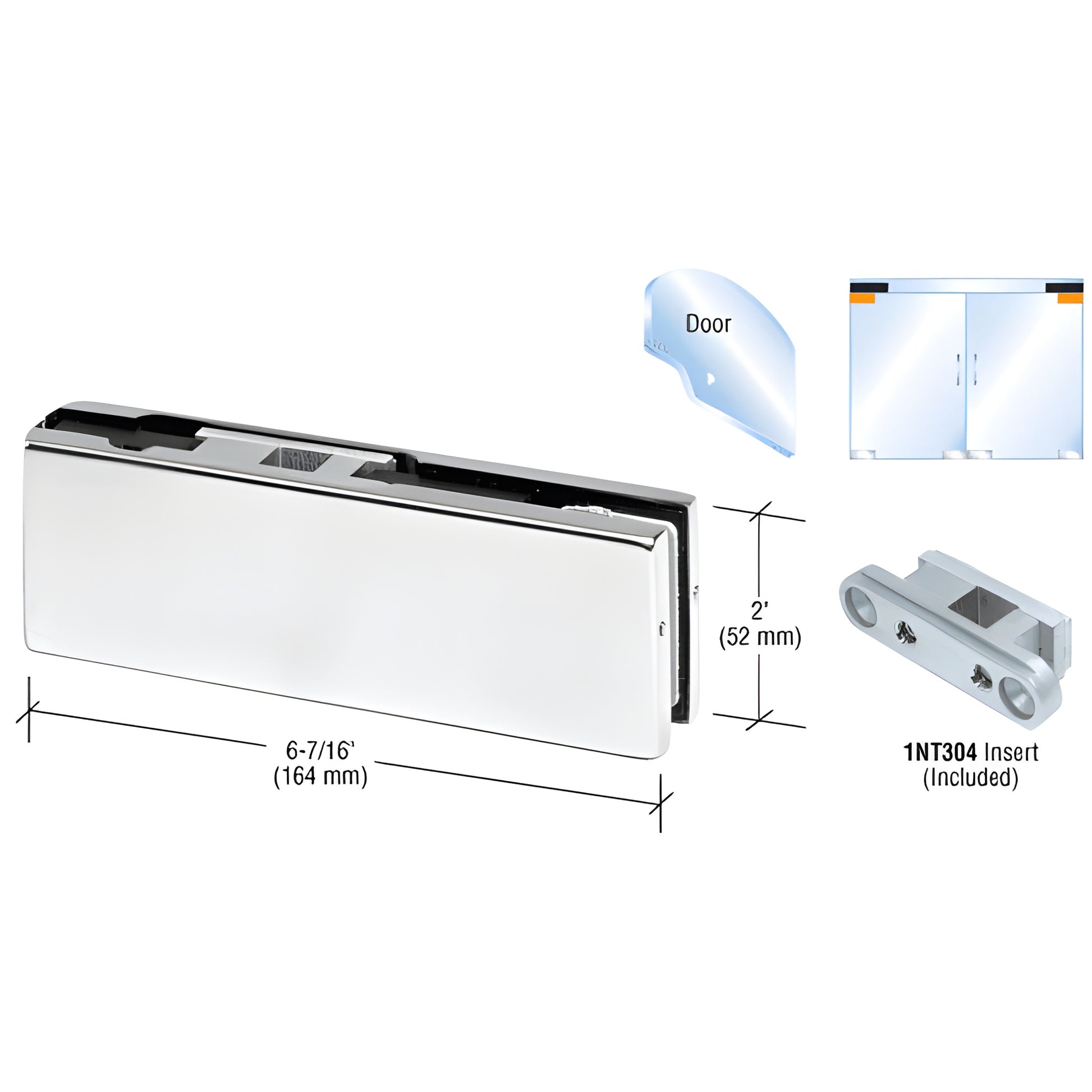

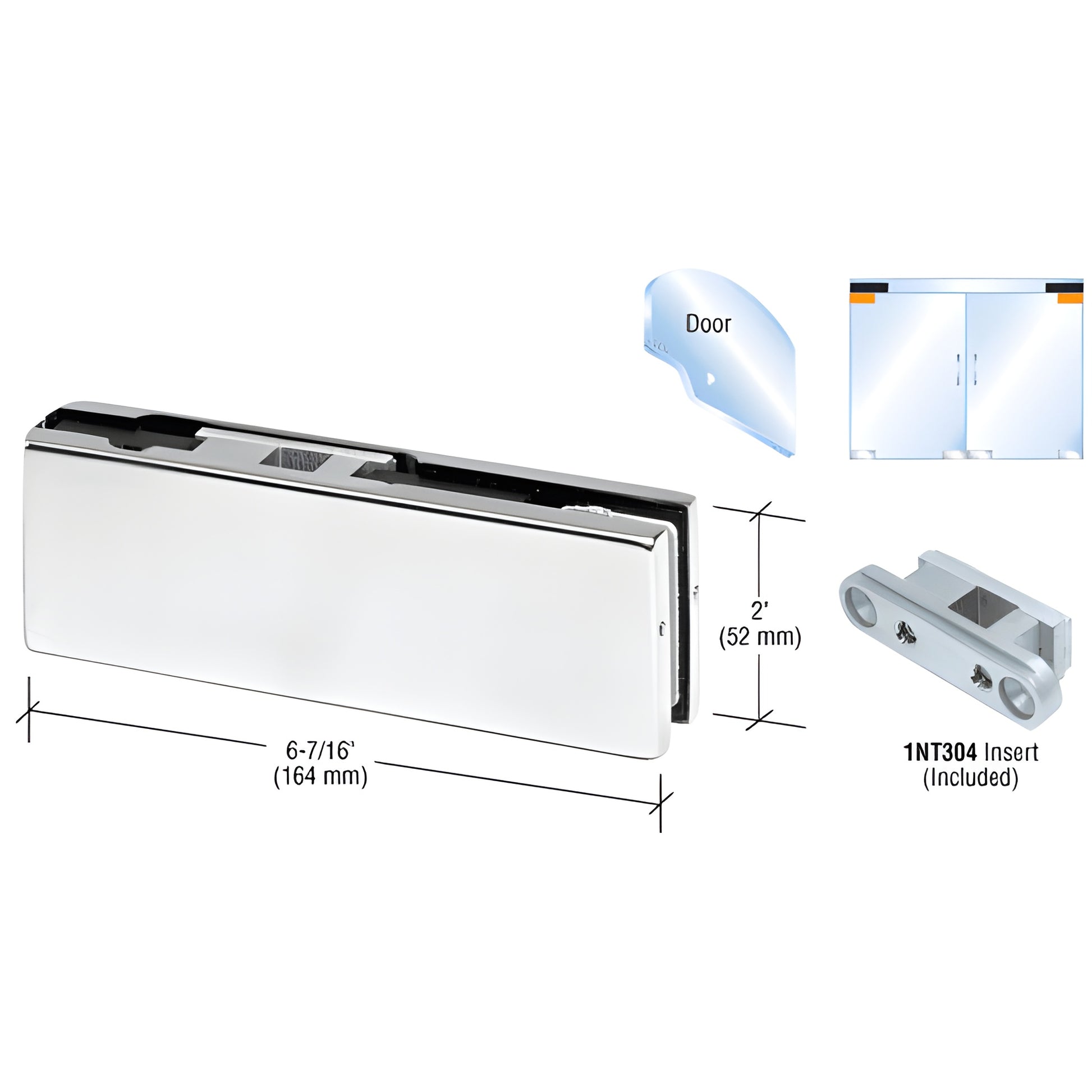

The CRL Top Door Patch Fitting is designed for optimal performance with a European 2-9/16" (65 mm) pivot setback and a high-density cast body.
This fitting includes the 1NT304 insert for seamless integration with our Overhead Concealed Door Closers, featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle.
Ideal for use with 3/8" or 1/2" (10 or 12 mm) glass, it comes with gaskets to ensure a perfect fit.
Please note, these fittings are not suitable for laminated glass, and specific glass fabrication is required, including one 3/4" (19 mm) diameter hole and corner notch.
For doors exceeding 102" in height, 194 lbs.
in weight, or 42" in width, full door rails are recommended.
For precise shipping weights and any color variation concerns, please contact CRL Customer Service.
This fitting includes the 1NT304 insert for seamless integration with our Overhead Concealed Door Closers, featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle.
Ideal for use with 3/8" or 1/2" (10 or 12 mm) glass, it comes with gaskets to ensure a perfect fit.
Please note, these fittings are not suitable for laminated glass, and specific glass fabrication is required, including one 3/4" (19 mm) diameter hole and corner notch.
For doors exceeding 102" in height, 194 lbs.
in weight, or 42" in width, full door rails are recommended.
For precise shipping weights and any color variation concerns, please contact CRL Customer Service.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
