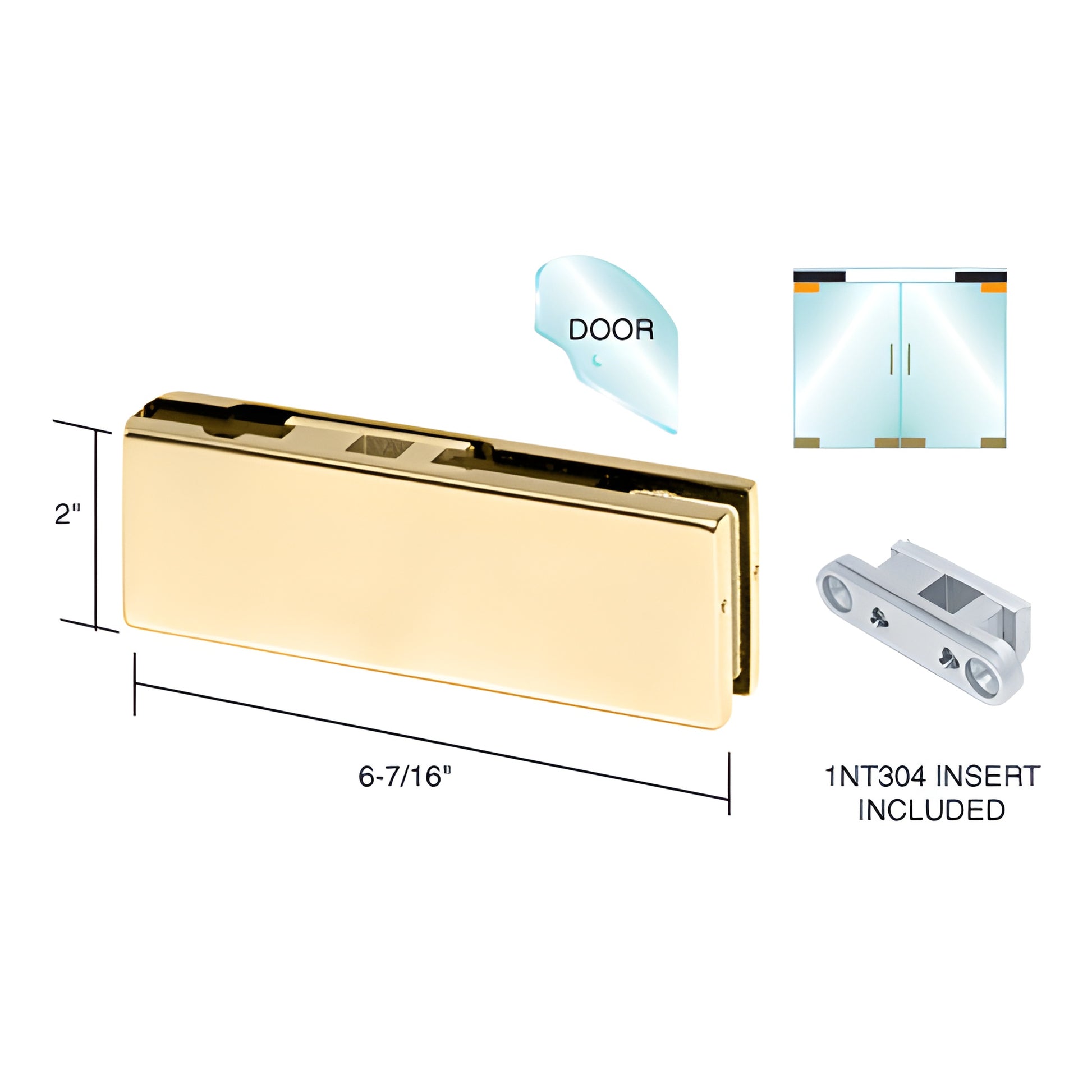

CRL Brass European Top Door Patch Fitting With 1NT304 Insert
CRL Brass European Top Door Patch Fitting With 1NT304 Insert
Regular price
$138.82 CAD
Regular price
Sale price
$138.82 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH21BBR
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Brass |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT304 |
| Length 6-7/16 in. | (164 mm) |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Door Patch Fitting is designed with a European 2-9/16" (65 mm) pivot setback and features a high-density cast body, making it an ideal choice for durable door applications.
This patch fitting includes the 1NT304 insert and is compatible with overhead concealed door closers with a 9/16" (14 mm) square and 3/4" (19 mm) long spindle.
Finished covers are available in four standard finishes, and gaskets are provided to accommodate 3/8" or 1/2" (10 or 12 mm) glass.
Note: This product is not suitable for use with laminated glass and requires specific glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch.
For optimal results, please adhere to the maximum height, weight, and width specifications.
Additionally, be aware that brass finishes may tarnish over time due to oxidation.
For further details, refer to our Brass Finish Disclaimer in the Technical References section.
This patch fitting includes the 1NT304 insert and is compatible with overhead concealed door closers with a 9/16" (14 mm) square and 3/4" (19 mm) long spindle.
Finished covers are available in four standard finishes, and gaskets are provided to accommodate 3/8" or 1/2" (10 or 12 mm) glass.
Note: This product is not suitable for use with laminated glass and requires specific glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch.
For optimal results, please adhere to the maximum height, weight, and width specifications.
Additionally, be aware that brass finishes may tarnish over time due to oxidation.
For further details, refer to our Brass Finish Disclaimer in the Technical References section.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
