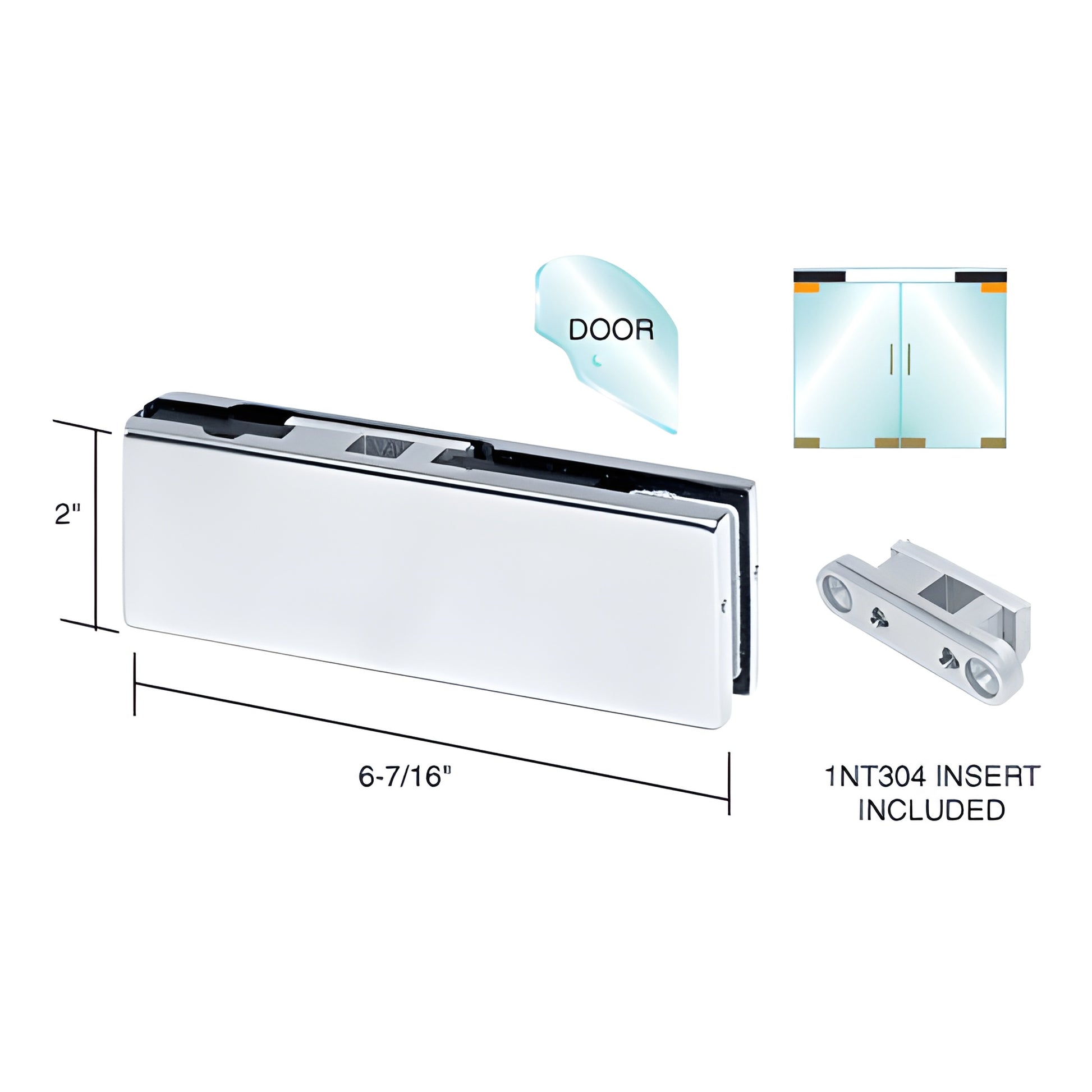

CRL Polished Stainless European Top Door Patch Fitting with 1NT304 Insert
CRL Polished Stainless European Top Door Patch Fitting with 1NT304 Insert
Regular price
$120.90 CAD
Regular price
Sale price
$120.90 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH21BPS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT304 |
| Length 6-7/16 in. | (164 mm) |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Door Patch Fitting is expertly designed with a European 2-9/16" (65 mm) pivot setback and a high-density cast body, making it a durable choice for your glass door needs.
This fitting is compatible with our Overhead Concealed Door Closers featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle, and includes gaskets suitable for either 3/8" or 1/2" (10 or 12 mm) glass.
Note that glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch, and these fittings should not be used with laminated glass.
With a maximum height of 102" (2.59 m) and weight of 194 lbs.
(80 kg), this fitting is ideal for doors within these specifications.
For further assistance, contact CRL Customer Service or refer to the Stainless Steel Disclaimer in the Technical References section for maintenance advice.
This fitting is compatible with our Overhead Concealed Door Closers featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle, and includes gaskets suitable for either 3/8" or 1/2" (10 or 12 mm) glass.
Note that glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch, and these fittings should not be used with laminated glass.
With a maximum height of 102" (2.59 m) and weight of 194 lbs.
(80 kg), this fitting is ideal for doors within these specifications.
For further assistance, contact CRL Customer Service or refer to the Stainless Steel Disclaimer in the Technical References section for maintenance advice.
