• PH21BBS brushed stainless top door patch fitting, 6-7/16 x 2 in, includes 1NT304 insert, for 3/8 or 1/2 in frameless glass
1 1

CRL

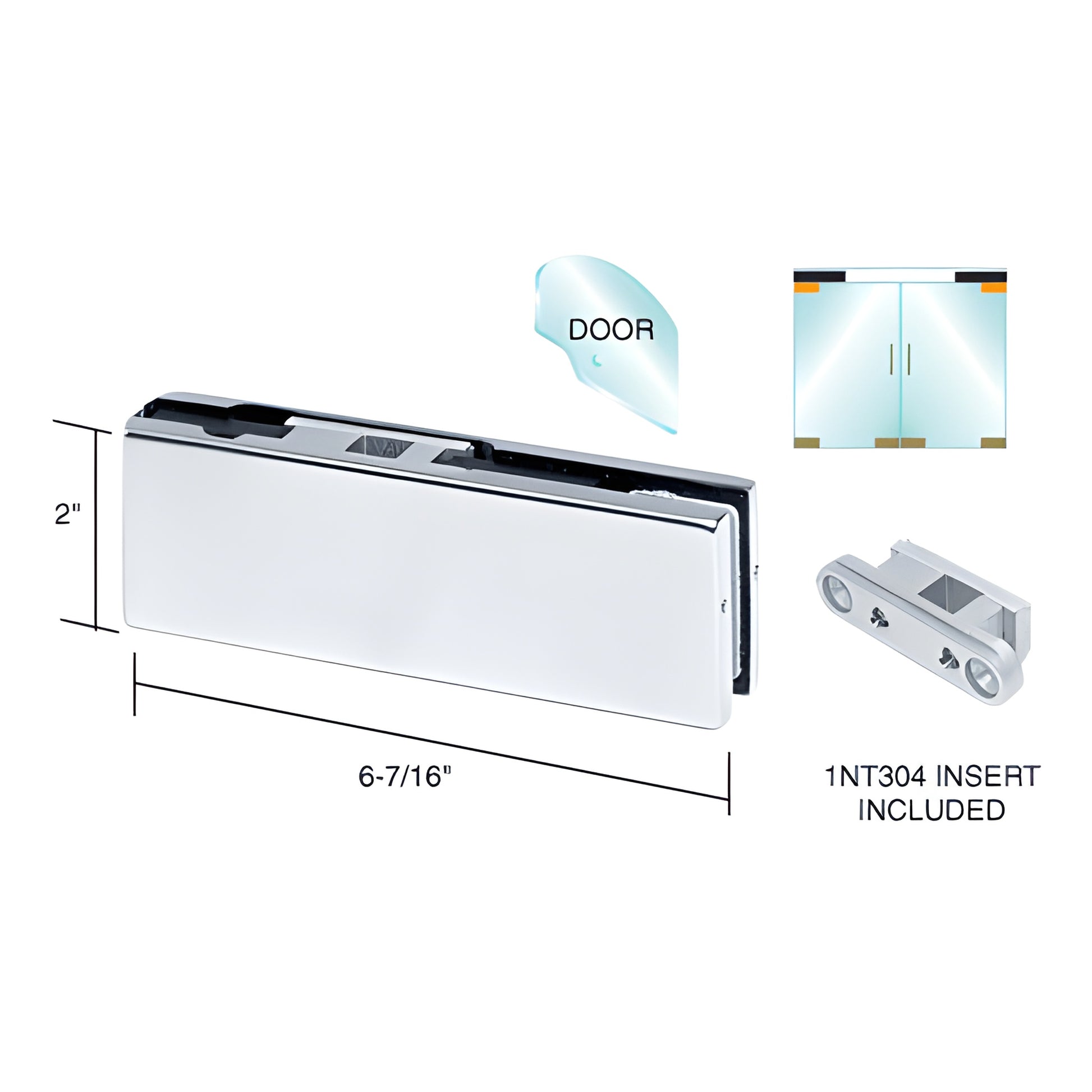

CRL Brushed Stainless Steel Top Glass Door Patch Fitting w/1NT304

CRL Brushed Stainless Steel Top Glass Door Patch Fitting w/1NT304

$114.21 CAD
$114.21 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH21BBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT304
Length
6-7/16 in. (164 mm)
Pivot Setback
2-9/16
Series
European
Type
Top
With Insert
Yes

Overview

  • European 2-9/16" (65 mm) pivot setback
  • High-density cast body for durable glass door hardware
  • Includes gaskets for use with 3/8" or 1/2" (10 or 12 mm) glass

The CRL Top Door Patch Fitting (SKU: PH21BBS) includes the 1NT304 insert for use with our overhead concealed door closers with a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Finished covers are available in four standard finishes. Gaskets are supplied to fit either 3/8" or 1/2" (10 or 12 mm) glass, making this patch fitting ideal for frameless glass doors and commercial glass door installations.


Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.


Product Warning:

These fittings are not for use with laminated glass.

Use the following guidelines when installing a 1/2" glass door with this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limits, full door rails should be used.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.







Order SKU PH21BBS or contact CRL for finish options and installation support.
