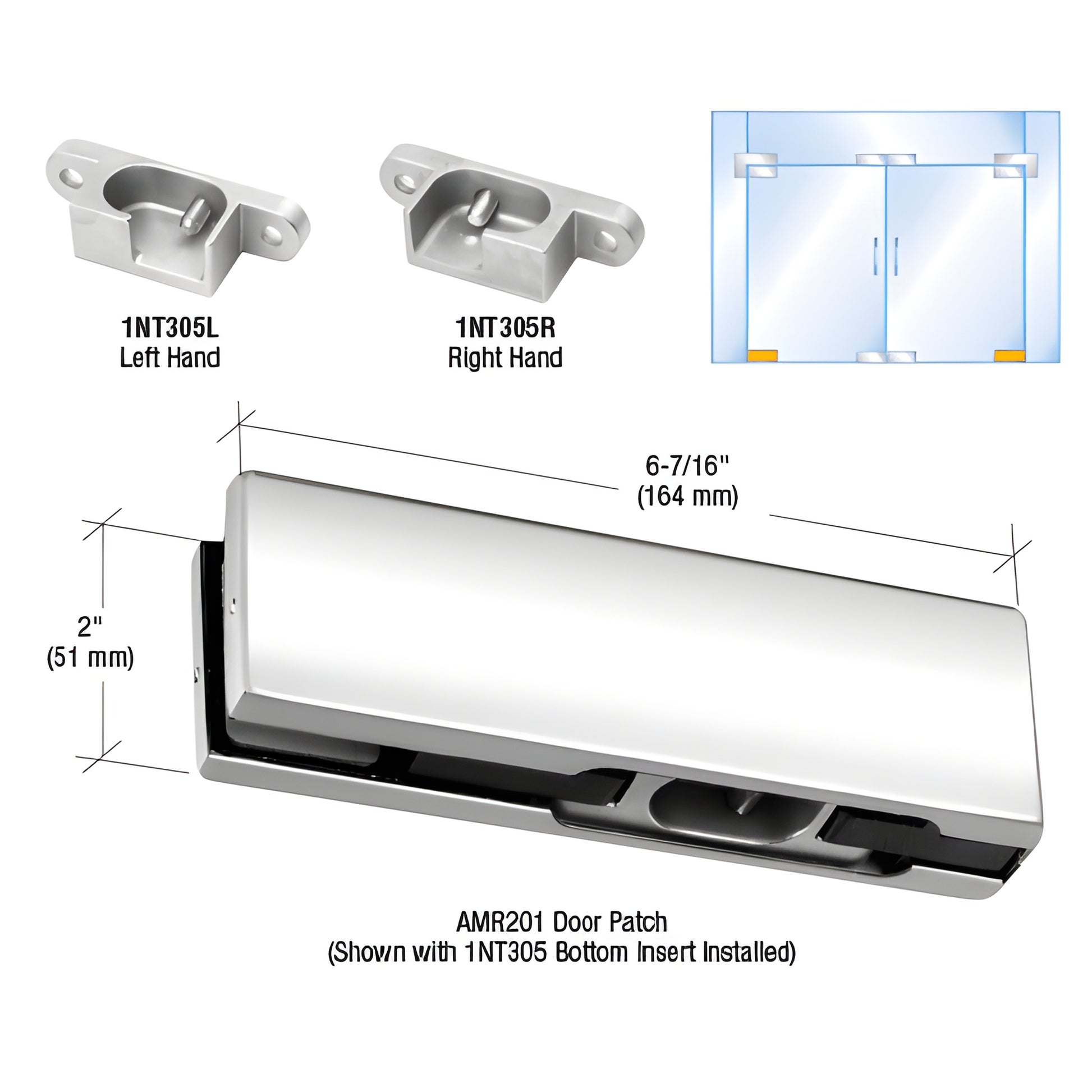

CRL Polished Stainless LH European Bottom Door Patch Fitting
Item # PH11ELPS
$84.66
CAD
Finish (4)
-
Satin Anodized -
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Type (3)
- Bottom
- Top
- Top or Bottom
Overview
| SKU | PH11ELPS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Left Hand |
| Insert Type | 1NT305L |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Bottom |
| With Insert | Yes |
Description
- For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- 2-9/16" (65 mm) Pivot Setback
- For Herculite™+ Style Doors
For Use With:
Includes:
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
Cleaning & Maintenance
