CRL Satin Anodized LH European Bottom Door Patch Fitting
CRL Satin Anodized LH European Bottom Door Patch Fitting
Regular price
$97.86 CAD
Regular price
Sale price
$97.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH11ELA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Left Hand |
| Insert Type | 1NT305L |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Bottom |
| With | Insert Yes |
Overview
This product is designed for 3/8" or 1/2" (10 or 12 mm) tempered glass, featuring a 2-9/16" (65 mm) pivot setback, ideal for Herculite™+ style doors.
It requires glass fabrication with a 3/4" (19 mm) diameter hole and corner notch, and a template can be accessed at crlaurence.com.

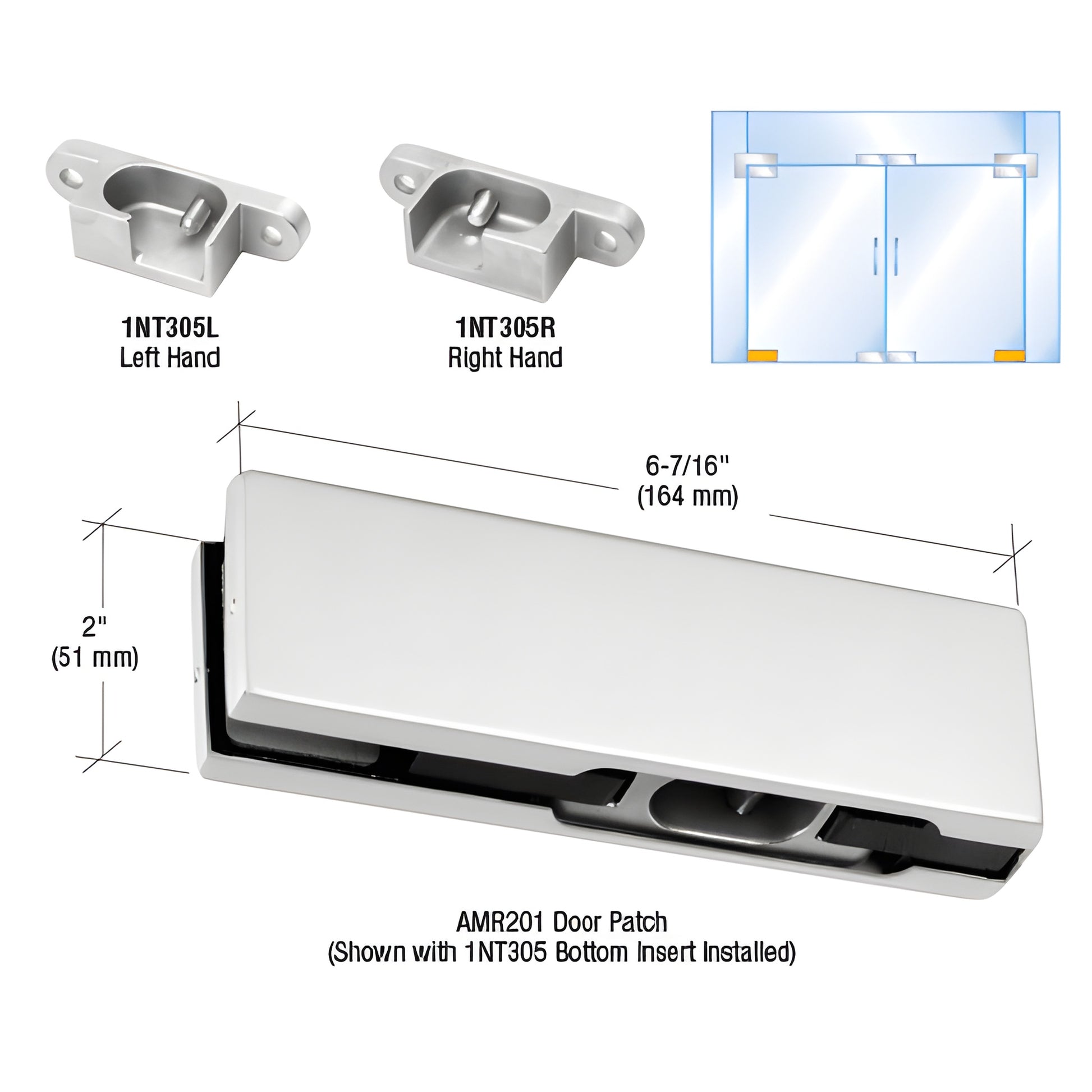

The package includes one AMR201 door patch, one 1NT305L and 1NT305R bottom door patch insert, and gaskets suitable for 3/8" or 1/2" glass.
For maximum door size, CRL adheres to GANA guidelines, and customers are advised to verify shipping weights by contacting CRL Customer Service if needed.
It requires glass fabrication with a 3/4" (19 mm) diameter hole and corner notch, and a template can be accessed at crlaurence.com.
The package includes one AMR201 door patch, one 1NT305L and 1NT305R bottom door patch insert, and gaskets suitable for 3/8" or 1/2" glass.
For maximum door size, CRL adheres to GANA guidelines, and customers are advised to verify shipping weights by contacting CRL Customer Service if needed.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
