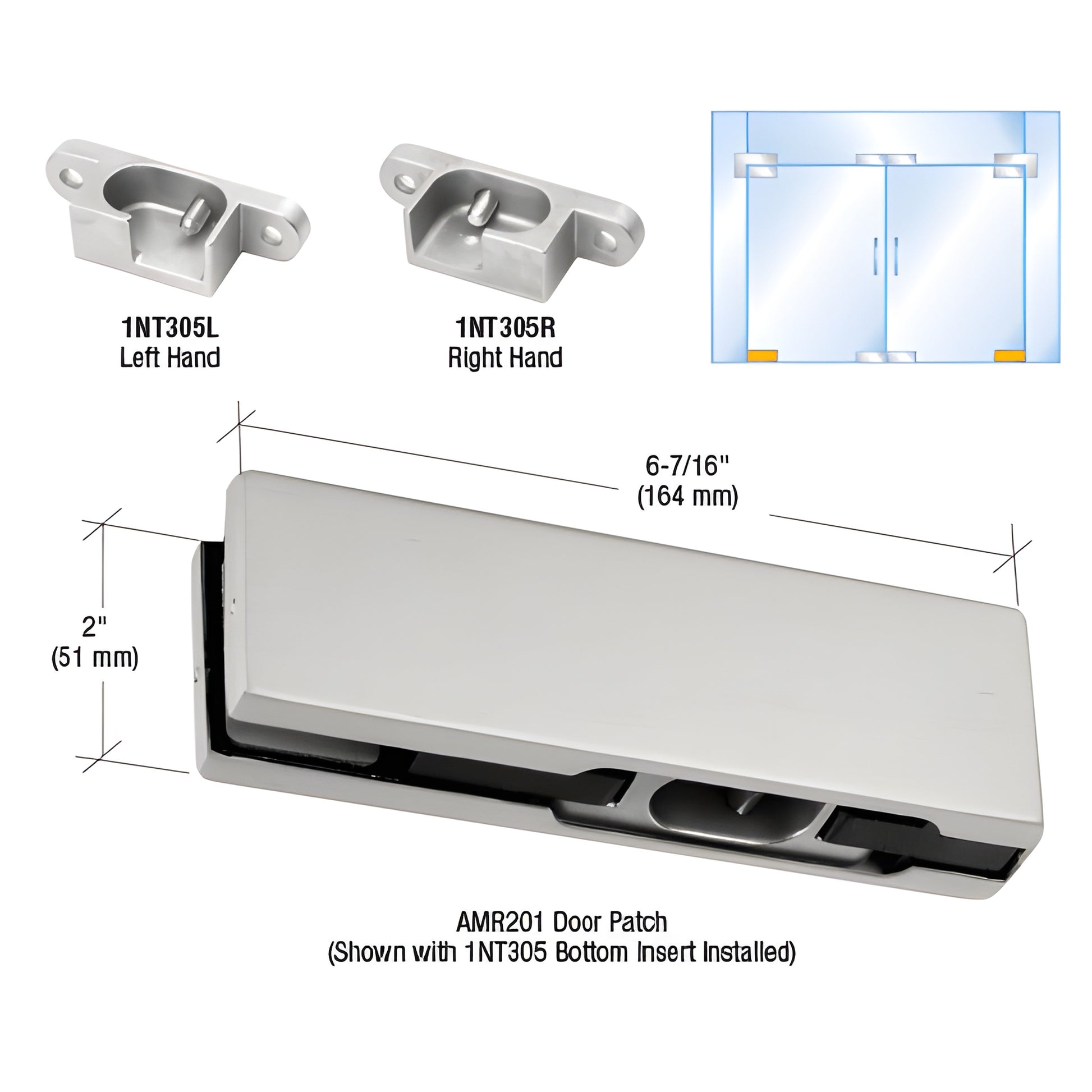

• Brushed stainless steel AMR201 bottom door patch with 1NT305L insert for 3/8-1/2" tempered glass (SKU PH11ELBS)
1 1

CRL

CRL Brushed Stainless Steel Left-Hand Bottom Glass Door Patch Fitting

CRL Brushed Stainless Steel Left-Hand Bottom Glass Door Patch Fitting

$89.93 CAD
$89.93 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH11ELBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Insert Type
1NT305L
Pivot Setback
2-9/16
Series
European
Type
Bottom
With Insert
Yes

Overview

  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • 2-9/16" (65 mm) pivot setback for precise swing clearance
  • Designed for Herculite™+ style doors — heavy-duty door patch solution
For Use With:
  • 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
  • Template available at crlaurence.com
Includes:
  • 1 × AMR201 door patch
  • 1 × 1NT305L and 1 × 1NT305R bottom door patch inserts
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) glass
Product Warning:

For maximum door size when using this product, CRL follows GANA guidelines.

Shipping weights are approximate. If exact weight is required to calculate shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual color may vary by monitor settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

SKU: PH11ELBS.

Shop this heavy-duty pivot door patch for Herculite™+ tempered glass doors — order now or contact CRL for fabrication templates and support.
